Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty

شهادة
نوعية جيدة تسقيف صفح لف يشكّل آلة للمبيعات
نوعية جيدة تسقيف صفح لف يشكّل آلة للمبيعات
آلة سهلة الاستخدام. رئيسه هو لطيف جدا.

—— السيد أنجولون من أوروبا

هذه الشركة مصنعة جيدة ، ومتحدث جيد باللغة الإنجليزية ، وأنا أحب أجهزتك. انها ذات نوعية جيدة ، وجميلة!

—— Mr.Mark من افريقيا

مورد لطيف! أنا أحب التسليم السريع ودورة الإنتاج السريعة ، وسوف نبقى على اتصال مع اللاعبين.

—— السيد جاك من أمريكا

ابن دردش الآن

Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty

الصين Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty المزود
Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty المزود Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty المزود Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty المزود Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty المزود

صورة كبيرة :  Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty

تفاصيل المنتج:

Place of Origin: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
Model Number: HC343

شروط الدفع والشحن:

Minimum Order Quantity: 1set
الأسعار: 8000-19000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
مفصلة وصف المنتج

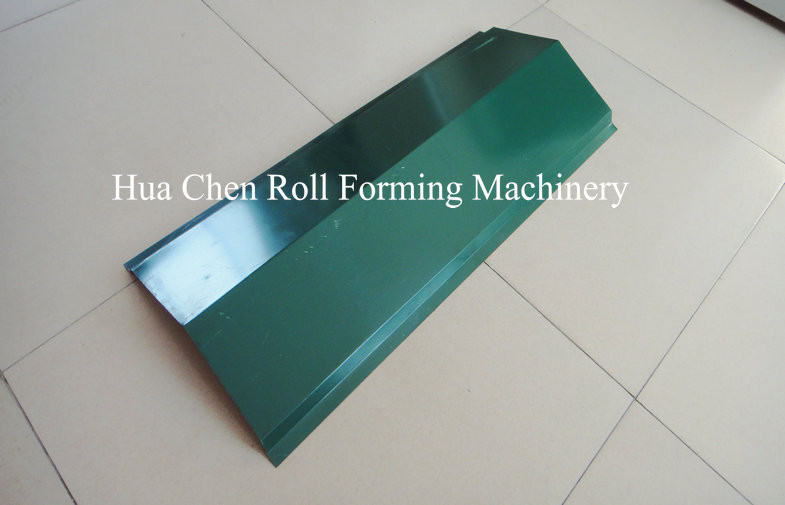

Galvanized Metal Roof Ridge Cap Roll Forming Machine Application

Our Galvanized Metal Roof Ridge Cap Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

SPECIFICATIONS FOR Galvanized Metal Roof Ridge Cap Roll Forming Machine

Main Roll Forming Machine
Roller station 11 rows
Material of roller High grade 45# forged steel plated with hard chrome plating
Material of cutter Cr12 mould steel with quenched treatment

Material
Type PPGI GI AL
Material width customized
Material thickness 0.3-0.6mm

Others
Speed 10m/min
PLC system EURA or customized
Weight 2.5T


Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty
Galvanized Metal Roof Ridge Cap Roll Forming Machine Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years WarrantyGalvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years WarrantyGalvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty

Automatic Steel Double Layer Roll Forming Machine Parts

Detailed Images

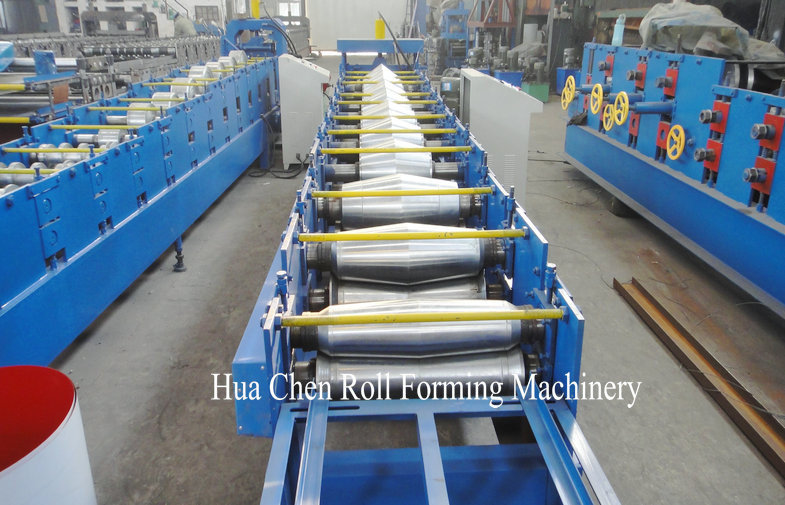

Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment

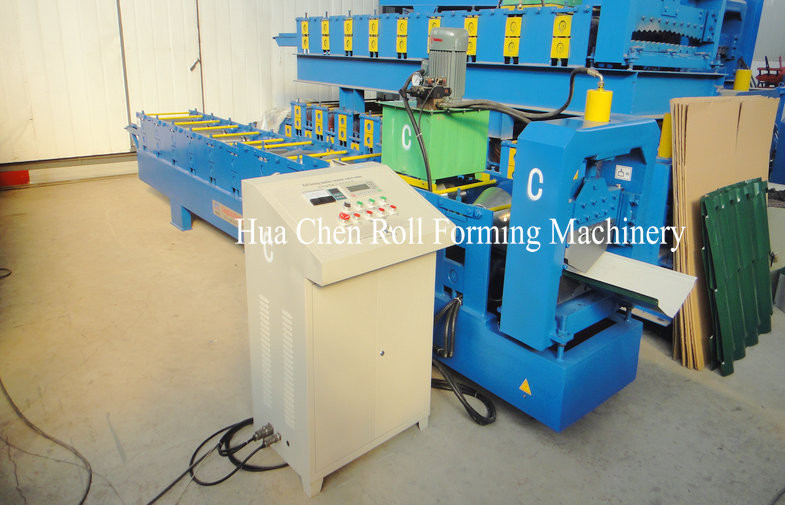

Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .



Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty
Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty

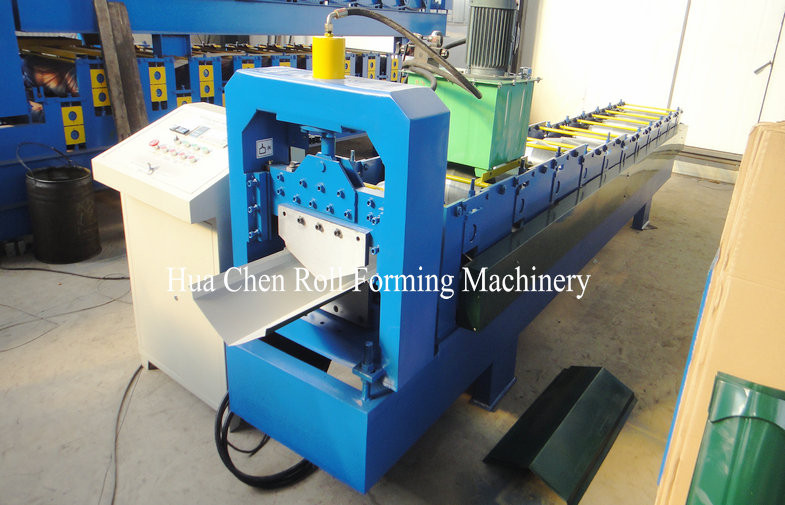

Hydraulic Cutting System

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
With non stop cutting
Material of blades: Cr12,quenching treatment



Our Service



Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty Size: 5600 (L) * 1550 (W) * 1510 (H)
Weight: 2.5T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty Galvanized Metal Roof Ridge Cap Roll Forming Machine with 2 Years Warranty
