Wall Panel / Glazed Tile Roll Forming Machine , Auto Cold Roll Forming Equipment

شهادة
نوعية جيدة تسقيف صفح لف يشكّل آلة للمبيعات
نوعية جيدة تسقيف صفح لف يشكّل آلة للمبيعات
آلة سهلة الاستخدام. رئيسه هو لطيف جدا.

—— السيد أنجولون من أوروبا

هذه الشركة مصنعة جيدة ، ومتحدث جيد باللغة الإنجليزية ، وأنا أحب أجهزتك. انها ذات نوعية جيدة ، وجميلة!

—— Mr.Mark من افريقيا

مورد لطيف! أنا أحب التسليم السريع ودورة الإنتاج السريعة ، وسوف نبقى على اتصال مع اللاعبين.

—— السيد جاك من أمريكا

ابن دردش الآن

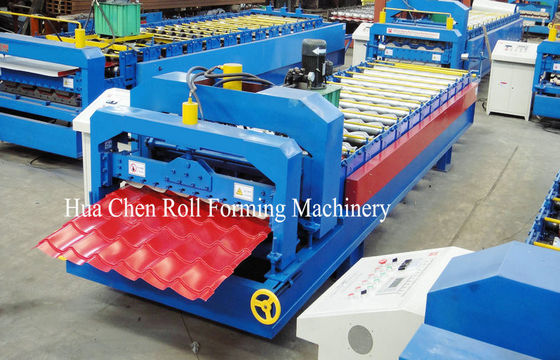

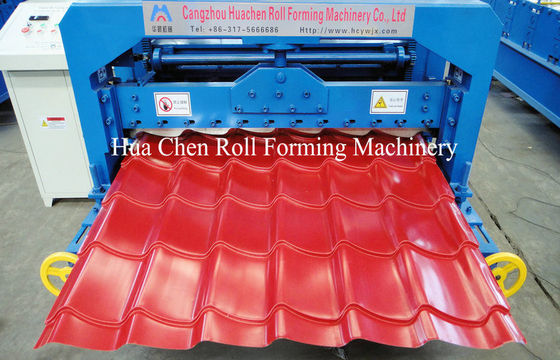

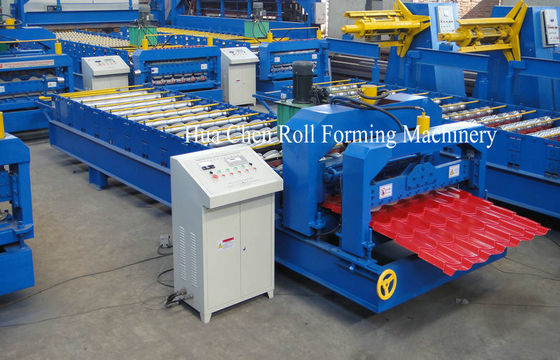

Wall Panel / Glazed Tile Roll Forming Machine , Auto Cold Roll Forming Equipment

الصين Wall Panel / Glazed Tile Roll Forming Machine , Auto Cold Roll Forming Equipment المزود
Wall Panel / Glazed Tile Roll Forming Machine , Auto Cold Roll Forming Equipment المزود Wall Panel / Glazed Tile Roll Forming Machine , Auto Cold Roll Forming Equipment المزود Wall Panel / Glazed Tile Roll Forming Machine , Auto Cold Roll Forming Equipment المزود Wall Panel / Glazed Tile Roll Forming Machine , Auto Cold Roll Forming Equipment المزود Wall Panel / Glazed Tile Roll Forming Machine , Auto Cold Roll Forming Equipment المزود

صورة كبيرة :  Wall Panel / Glazed Tile Roll Forming Machine , Auto Cold Roll Forming Equipment

تفاصيل المنتج:

Place of Origin: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
Model Number: HC24-183-1100

شروط الدفع والشحن:

Minimum Order Quantity: 1set
الأسعار: 12000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
مفصلة وصف المنتج
type: Glazed Tile Roll Forming Machine Usage: roof
warranty: 1 year

Can't find a reliable supplier for Glazed Tile Roll Forming Machine? Huachen is your best choise.
Cangzhou huachen roll forming machinery Co., Ltd is the manufacturer specilized in metal roofing roll forming machine. We provide an extensive line of products, which includes roof and wall panel machine , roof tile machine, purline forming machine, floor decking machine,gutter forming machine,roller shutter machine etc.

What's your machine application ?
Our roll forming machines can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.



Application



This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.



Wall Panel / Glazed Tile Roll Forming Machine , Auto Cold Roll Forming Equipment



Roof Tile Roll Forming Machine Main parameter

No.

   Main parameter of Glazed Tile Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

12 rows

4

Dimensions

7200*1550*1510mm

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

4m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

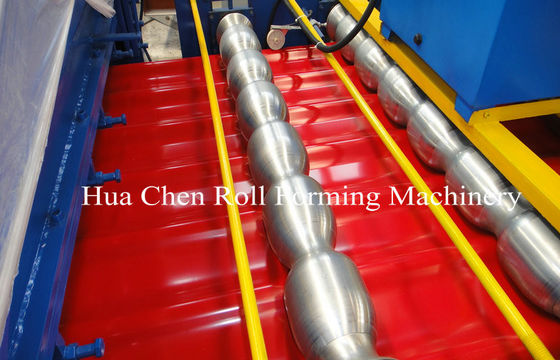

Roof Tile Roll Forming Machine Rollers

Wall Panel / Glazed Tile Roll Forming Machine , Auto Cold Roll Forming Equipment

Rolling Material: high grade 45# steel(plated chrome on surface)
Equipment Components: Man-Made Uncoiler-Roll Forming Machine-Computer Control System-

Hydraulic Control System-Press Form-Cutting

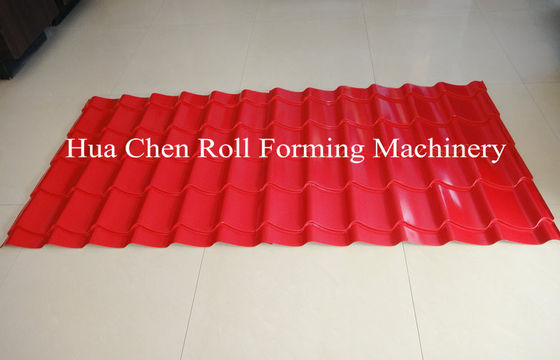

Roof Tile Roll Forming Machine Production Sample

Wall Panel / Glazed Tile Roll Forming Machine , Auto Cold Roll Forming Equipment

We have a professional design team
Can also design and manufacture according to customer's requirement.




Competitive Advantage



1.noiseless running

2.good quality

3.high grade steel

4.maintenance-free

5.easy to use

Why choose Huachen ?
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

2.Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

3.Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

4.Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.

5.Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
