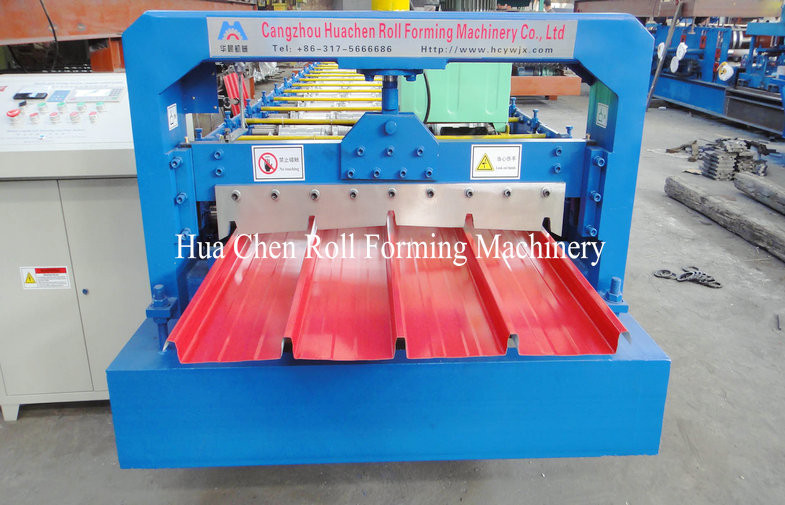

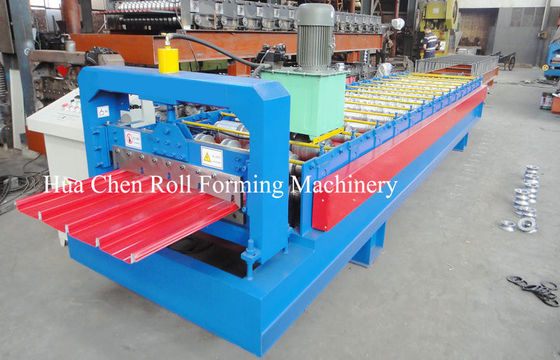

4 Kw Trapezoidal Roof Panel Roll Forming Machine With Hydraulic Cutter

زبون مراجعة
آلة سهلة الاستخدام. رئيسه هو لطيف جدا.

—— السيد أنجولون من أوروبا

هذه الشركة مصنعة جيدة ، ومتحدث جيد باللغة الإنجليزية ، وأنا أحب أجهزتك. انها ذات نوعية جيدة ، وجميلة!

—— Mr.Mark من افريقيا

مورد لطيف! أنا أحب التسليم السريع ودورة الإنتاج السريعة ، وسوف نبقى على اتصال مع اللاعبين.

—— السيد جاك من أمريكا

ابن دردش الآن

4 Kw Trapezoidal Roof Panel Roll Forming Machine With Hydraulic Cutter

4 Kw Trapezoidal Roof Panel Roll Forming Machine With Hydraulic Cutter
4 Kw Trapezoidal Roof Panel Roll Forming Machine With Hydraulic Cutter
4 Kw Trapezoidal Roof Panel Roll Forming Machine With Hydraulic Cutter 4 Kw Trapezoidal Roof Panel Roll Forming Machine With Hydraulic Cutter 4 Kw Trapezoidal Roof Panel Roll Forming Machine With Hydraulic Cutter 4 Kw Trapezoidal Roof Panel Roll Forming Machine With Hydraulic Cutter 4 Kw Trapezoidal Roof Panel Roll Forming Machine With Hydraulic Cutter 4 Kw Trapezoidal Roof Panel Roll Forming Machine With Hydraulic Cutter

صورة كبيرة :  4 Kw Trapezoidal Roof Panel Roll Forming Machine With Hydraulic Cutter

تفاصيل المنتج:
مكان المنشأ: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
رقم الموديل: HC37
شروط الدفع والشحن:
الحد الأدنى لكمية: 1set
الأسعار: 8000-29000USD
تفاصيل التغليف: Main machine is nude,the computer control box is packed by carton box
وقت التسليم: 30days
شروط الدفع: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
القدرة على العرض: 20 sets/month

4 Kw Trapezoidal Roof Panel Roll Forming Machine With Hydraulic Cutter

وصف
type: Roofing Sheet Roll Forming Machine usage: roof
thickness: 0.3-0.6mm warranty: 1 year
تسليط الضوء:

roof tile roll forming machine,roof panel roll forming machine

,

roof panel roll forming machine

We, being a quality conscious firm, are committed to provide world class Roll Forming Machinery for sale. Based in Rajkot, Gujarat, India, we are known to be a commendable manufacturer, exporter, supplier, distributor, and trading company. It is our hard work & dedication that has enabled us to won the trust of numerous buyers across the globe. Our Roll Forming Machinery is fabricated from high quality materials/components, under expert supervision.

4 Kw Trapezoidal Roof Panel Roll Forming Machine With Hydraulic Cutter 0



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate:1115mm

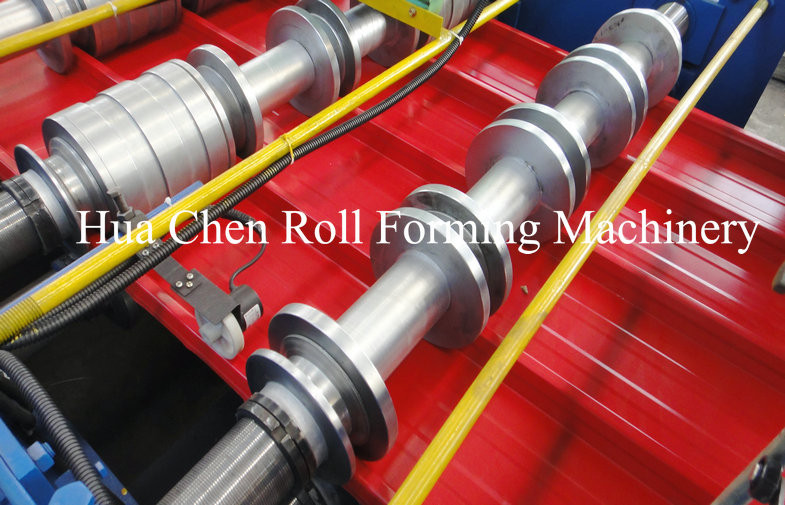

3. Rollers: 16 rows

4. Dimensions: 7.8*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Roofing sheet Roll Forming Machine Main parameter

No.

   Main parameter of Roofing sheet Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1115 mm

3

Rollers

16 rows

4

Dimensions

7800*1550*1510mm

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

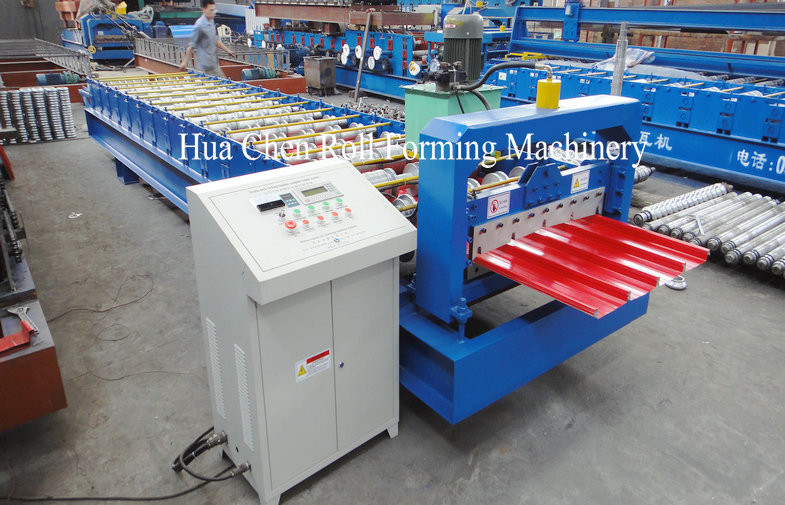

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

4 Kw Trapezoidal Roof Panel Roll Forming Machine With Hydraulic Cutter 14 Kw Trapezoidal Roof Panel Roll Forming Machine With Hydraulic Cutter 24 Kw Trapezoidal Roof Panel Roll Forming Machine With Hydraulic Cutter 3



Application

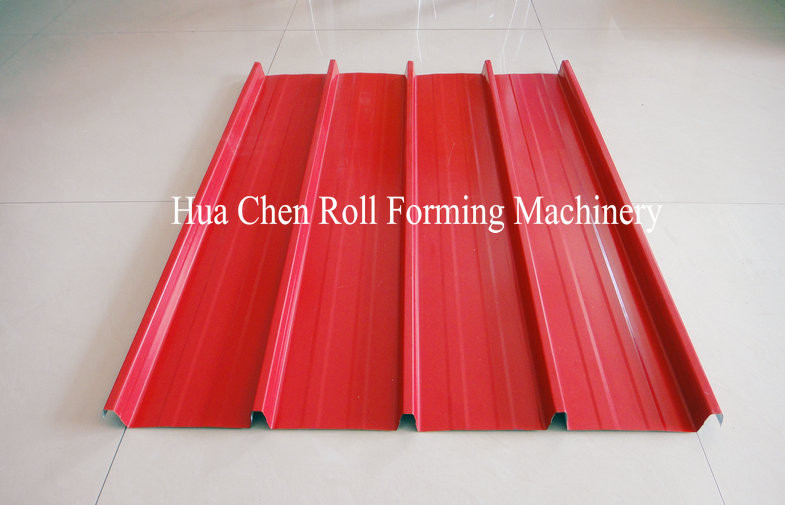

This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage





1. elegant appearance

2.high quality steel structure

3. One year free guarantee

4. lifelong maintain

5. Panasonic PLC



Why choose Huachen ?
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

2.Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

3.Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

4.Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.

5.Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
