20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine

20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine
20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine
20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine

صورة كبيرة :  20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine

تفاصيل المنتج:
مكان المنشأ: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
رقم الموديل: HC12/17
شروط الدفع والشحن:
الحد الأدنى لكمية: 1set
الأسعار: 15000-39000USD
تفاصيل التغليف: Main machine is nude,the computer control box is packed by carton box
وقت التسليم: 30days
شروط الدفع: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
القدرة على العرض: 20 sets/month

20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine

وصف
type: Double Layer Roll Forming Machine Usage: roof
warranty: 1 year
تسليط الضوء:

sheet metal roll forming machines,corrugated roll forming machine

,

corrugated roll forming machine

Can't find a reliable supplier for ? Huachen is your best choise.
Cangzhou huachen roll forming machinery Co., Ltd is the manufacturer specilized in metal roofing roll forming machine. We provide an extensive line of products, which includes roof and wall panel machine , roof tile machine, purline forming machine, floor decking machine,gutter forming machine,roller shutter machine etc.

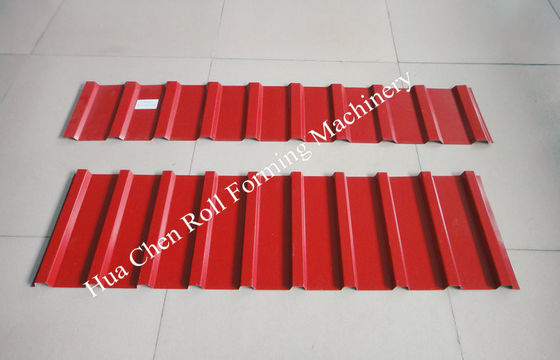

20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 0

What's your machine application ?
Our roll forming machines can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

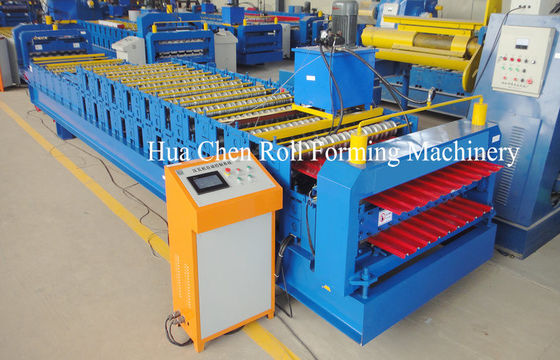

20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 1

Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1250mm

3. Rollers: 10/17 rows

4. Dimensions: 9.7*1.55*1.91m

5. Power: 4+4kw

6. Rolling material: high grade 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Double layer roll forming machine Main parameter

No.

 Main parameter of Double layer roll forming machine



1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

upper level :10 rows

Down level :17 rows

4

Dimensions

9200*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting

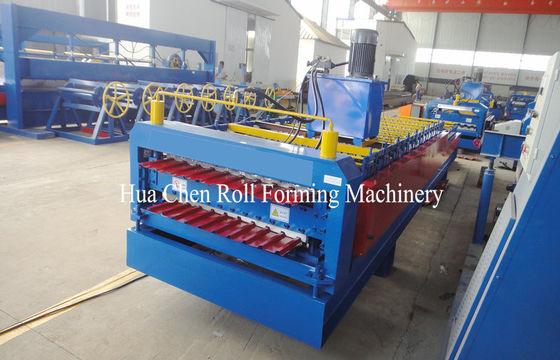

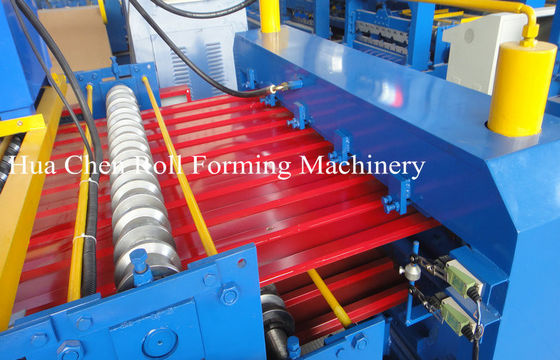

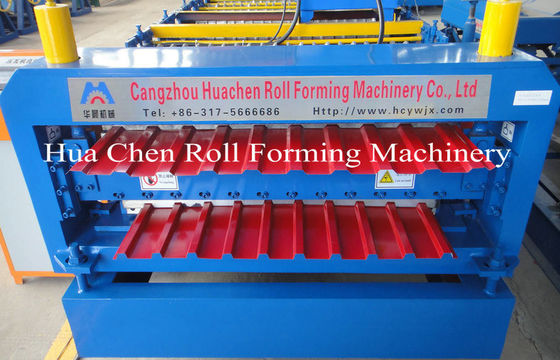

20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 220m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 320m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 4



Application



This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site





Competitive Advantage



1. CE certification

2. hydraulic motor drive

3. Exported to more than 70 countries

4. suitable for various kinds of steel plate

5. voltage according to customer request
