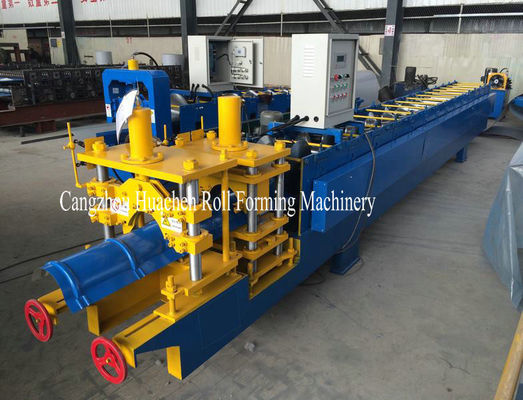

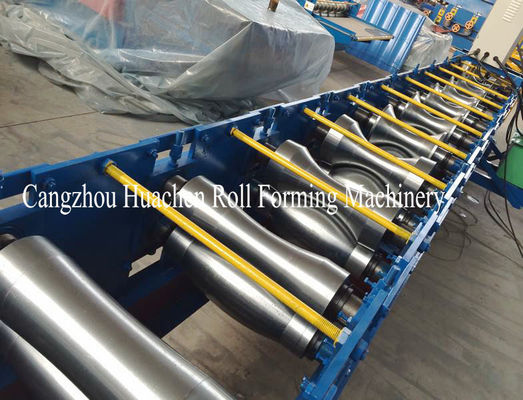

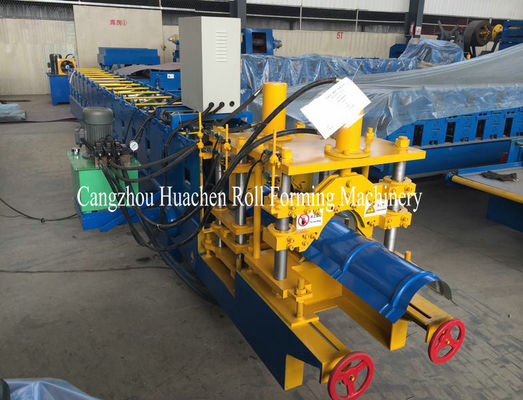

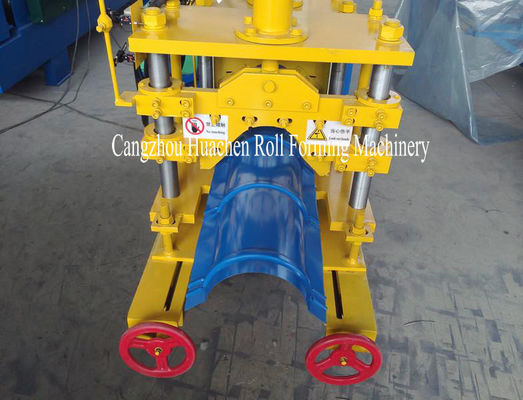

Customized Automatic Roll Former Ridge Cap Cold Roll Forming Machine With CE Certification

زبون مراجعة
آلة سهلة الاستخدام. رئيسه هو لطيف جدا.

—— السيد أنجولون من أوروبا

هذه الشركة مصنعة جيدة ، ومتحدث جيد باللغة الإنجليزية ، وأنا أحب أجهزتك. انها ذات نوعية جيدة ، وجميلة!

—— Mr.Mark من افريقيا

مورد لطيف! أنا أحب التسليم السريع ودورة الإنتاج السريعة ، وسوف نبقى على اتصال مع اللاعبين.

—— السيد جاك من أمريكا

ابن دردش الآن

Customized Automatic Roll Former Ridge Cap Cold Roll Forming Machine With CE Certification

Customized Automatic Roll Former Ridge Cap Cold Roll Forming Machine With CE Certification
Customized Automatic Roll Former Ridge Cap Cold Roll Forming Machine With CE Certification Customized Automatic Roll Former Ridge Cap Cold Roll Forming Machine With CE Certification Customized Automatic Roll Former Ridge Cap Cold Roll Forming Machine With CE Certification Customized Automatic Roll Former Ridge Cap Cold Roll Forming Machine With CE Certification Customized Automatic Roll Former Ridge Cap Cold Roll Forming Machine With CE Certification

صورة كبيرة :  Customized Automatic Roll Former Ridge Cap Cold Roll Forming Machine With CE Certification

تفاصيل المنتج:
مكان المنشأ: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
رقم الموديل: HC400
شروط الدفع والشحن:
الحد الأدنى لكمية: 1set
الأسعار: 13000-29000USD
تفاصيل التغليف: Main machine is nude,the computer control box is packed by carton box
وقت التسليم: 30days
شروط الدفع: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
القدرة على العرض: 20 sets/month

Customized Automatic Roll Former Ridge Cap Cold Roll Forming Machine With CE Certification

وصف
تسليط الضوء:

metal forming machines,cold roll forming equipment

,

cold roll forming equipment

Customized Automatic Roll Former Ridge Cap Cold Roll Forming Machine With CE Certification



Customized Automatic Roll Former Ridge Cap Cold Roll Forming Machine With CE Certification 0Customized Automatic Roll Former Ridge Cap Cold Roll Forming Machine With CE Certification 1Customized Automatic Roll Former Ridge Cap Cold Roll Forming Machine With CE Certification 2

Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 400mm

3. Rollers: 15 rows

4. Dimensions: 8.1*1.35*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Ridge Cap Roll Forming Machine Main parameter

No.

   Main parameter of Ridge Cap Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

400mm

3

Rollers

15rows

4

Dimensions

8100*1350*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

4m/min

8

Diameter of the roller

Φ66 mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting





Application



This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage







1. CE certification

2. hydraulic motor drive

3. Exported to more than 70 countries

4. suitable for various kinds of steel plate

5. voltage according to customer request

Why choose Huachen ?
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

2.Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

3.Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

4.Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.

5.Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
