Cut-to-Length Sheet Metal Cutting Machine Color Coated 3 Rows Rollers

Cut-to-Length Sheet Metal Cutting Machine Color Coated 3 Rows Rollers
Cut-to-Length Sheet Metal Cutting Machine Color Coated 3 Rows Rollers Cut-to-Length Sheet Metal Cutting Machine Color Coated 3 Rows Rollers Cut-to-Length Sheet Metal Cutting Machine Color Coated 3 Rows Rollers Cut-to-Length Sheet Metal Cutting Machine Color Coated 3 Rows Rollers Cut-to-Length Sheet Metal Cutting Machine Color Coated 3 Rows Rollers

صورة كبيرة :  Cut-to-Length Sheet Metal Cutting Machine Color Coated 3 Rows Rollers

تفاصيل المنتج:
Place of Origin: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO/CE
Model Number: HC1000
شروط الدفع والشحن:
Minimum Order Quantity: 1set
الأسعار: 8000-2900USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Cut-to-Length Sheet Metal Cutting Machine Color Coated 3 Rows Rollers

وصف
raw material: PPGI, color steel type: automatic
control system: PLC control per month: 20 sets
cutting method: hydraulic cut raw material width: 1000-1250mm
تسليط الضوء:

صفح معدن عمليّة قطع آلة,

,

automatic pipe cutting machine

Cut-to-Length Sheet Metal Cutting Machine Color Coated 3 Rows Rollers





Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1000-1250mm

3. Rollers: 3 rows

4. Dimensions: 3.5*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.7mm

8. Voltage: 380V 50Hz 3phases

9. Hydraulic: 40#

10. Processing precision: Within 1.00mm

11. Control system: PLC control





Description:



Flatting-Cutting Machine Main parameter

No.

   Main parameter of Flatting-Cutting Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1000-1250mm

3

Rollers

3 rows

4

Dimensions

3.5*1.55*1.51m

5

Power

4+4kw

6

Thickness of the plate

0.3-0.7mm

7

Productivity

25m/min

8

Voltage

380V 50Hz 3phases

9

Hydraulic

40#

10

Processing precision

Within 1.00mm

11

Control system

PLC control

Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-cutting

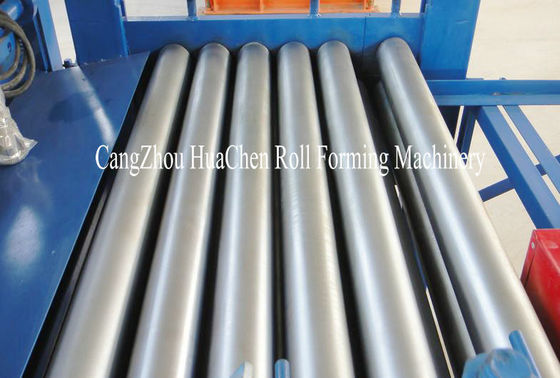

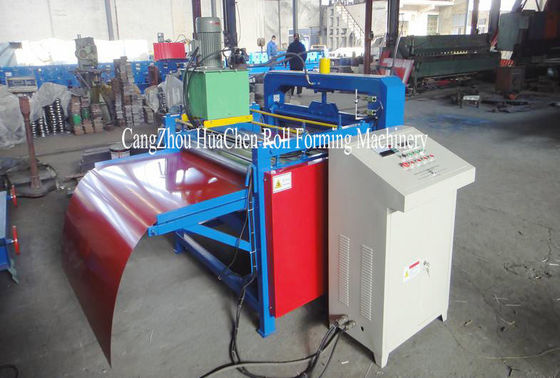

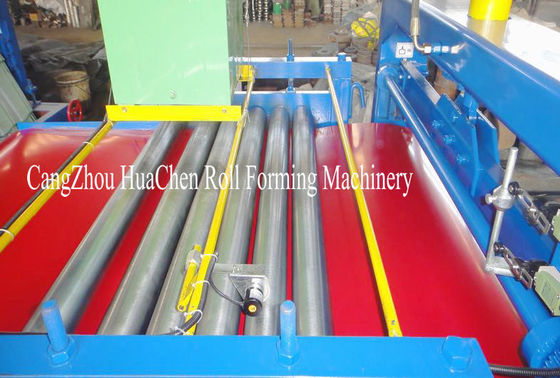

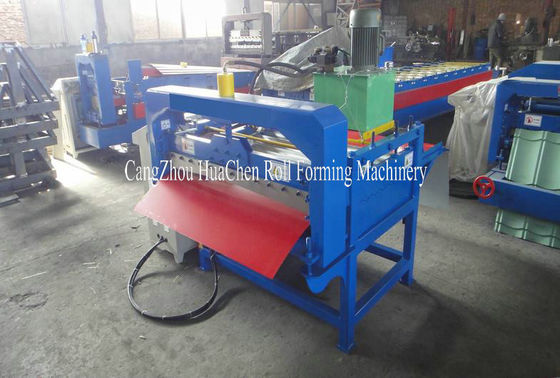

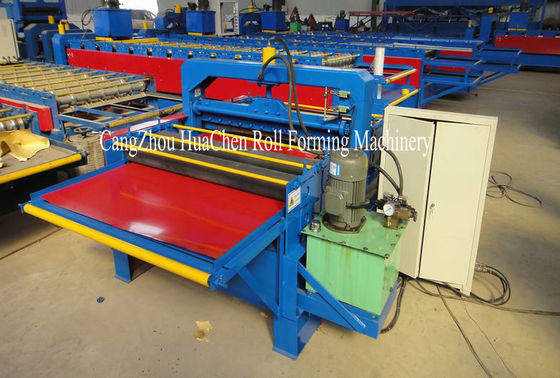

Cut-to-Length Sheet Metal Cutting Machine Color Coated 3 Rows Rollers 0Cut-to-Length Sheet Metal Cutting Machine Color Coated 3 Rows Rollers 1



Application



use for cut the sheet to strips, also use for other accessories.





Competitive Advantage





1. Pretty appearance

2. Various special model

3. mature foreign trade team

4. professional designing team

5. Lifetime maintenance
