Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification

زبون مراجعة
آلة سهلة الاستخدام. رئيسه هو لطيف جدا.

—— السيد أنجولون من أوروبا

هذه الشركة مصنعة جيدة ، ومتحدث جيد باللغة الإنجليزية ، وأنا أحب أجهزتك. انها ذات نوعية جيدة ، وجميلة!

—— Mr.Mark من افريقيا

مورد لطيف! أنا أحب التسليم السريع ودورة الإنتاج السريعة ، وسوف نبقى على اتصال مع اللاعبين.

—— السيد جاك من أمريكا

ابن دردش الآن

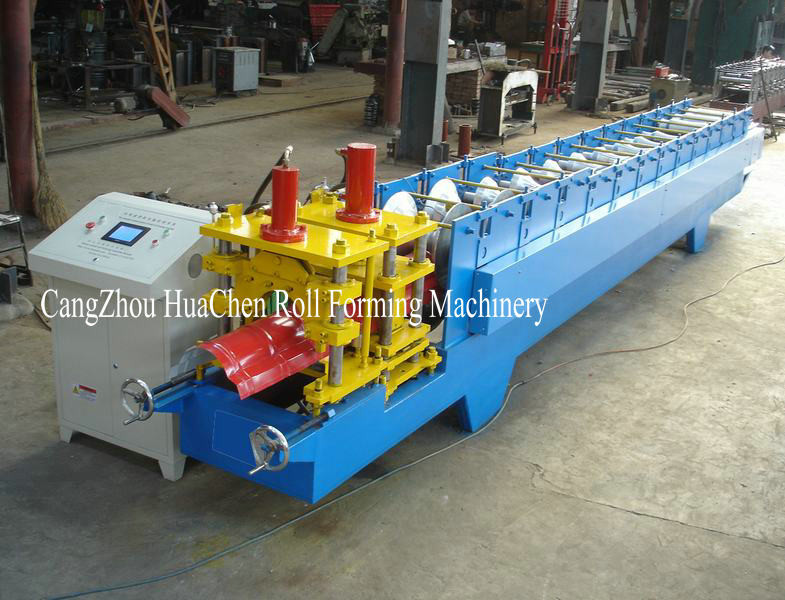

Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification

Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification
Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification

صورة كبيرة :  Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification

تفاصيل المنتج:
مكان المنشأ: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
رقم الموديل: HC400
شروط الدفع والشحن:
الحد الأدنى لكمية: 1set
الأسعار: 13000-29000USD
تفاصيل التغليف: Main machine is nude,the computer control box is packed by carton box
وقت التسليم: 30days
شروط الدفع: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
القدرة على العرض: 20 sets/month

Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification

وصف
تسليط الضوء:

metal forming machines,cold roll forming equipment

,

cold roll forming equipment

Meta Roofing Ridge Cap Cold Roll Forming Machine With CE Certification

Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification 0Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification 1



 Cap Forming Machine



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 400mm

3. Rollers: 15 rows

4. Dimensions: 8.1*1.35*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Ridge Cap Roll Forming Machine Main parameter

No.

   Main parameter of Ridge Cap Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

400mm

3

Rollers

15rows

4

Dimensions

8100*1350*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

4m/min

8

Diameter of the roller

Φ66 mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting





Application



This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.

Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification 2Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification 3Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification 4



Competitive Advantage







1. CE certification

2. hydraulic motor drive

3. Exported to more than 70 countries

4. suitable for various kinds of steel plate

5. voltage according to customer request
