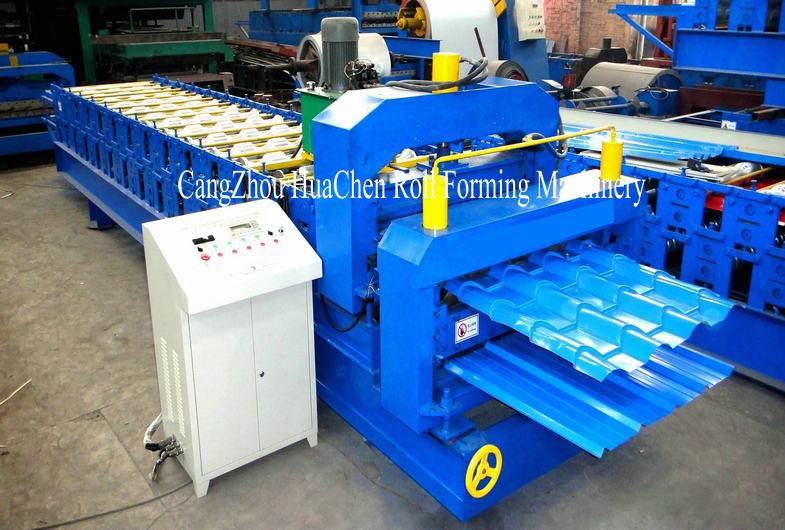

Noiseless Double Sheet Metal Forming Equipment 9100 * 1550 * 1910mm

Noiseless Double Sheet Metal Forming Equipment 9100 * 1550 * 1910mm
Noiseless Double Sheet Metal Forming Equipment 9100 * 1550 * 1910mm Noiseless Double Sheet Metal Forming Equipment 9100 * 1550 * 1910mm Noiseless Double Sheet Metal Forming Equipment 9100 * 1550 * 1910mm Noiseless Double Sheet Metal Forming Equipment 9100 * 1550 * 1910mm

صورة كبيرة :  Noiseless Double Sheet Metal Forming Equipment 9100 * 1550 * 1910mm

تفاصيل المنتج:
مكان المنشأ: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO/CE
رقم الموديل: HC38-25
شروط الدفع والشحن:
الحد الأدنى لكمية: 1set
الأسعار: 15000-39000USD
تفاصيل التغليف: Main machine is nude,the computer control box is packed by carton box
وقت التسليم: 30days
شروط الدفع: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
القدرة على العرض: 20 sets/month

Noiseless Double Sheet Metal Forming Equipment 9100 * 1550 * 1910mm

وصف
color: blue type: automatic
control system: PLC control cutting method: hydraulic cuting
per month: 30 sets
تسليط الضوء:

sheet metal roll forming machines,corrugated roll forming machine

,

corrugated roll forming machine

Double Sheet Roll Forming Machine, Double Roofing Forming Machine


 Noiseless Double Sheet Metal Forming Equipment 9100 * 1550 * 1910mm 0Noiseless Double Sheet Metal Forming Equipment 9100 * 1550 * 1910mm 1


Quick Detail:


1. Suitable to process: Color steel plate
2. Width of the plate: 1000mm
3. Rollers: 14/11 rows
4. Dimensions: 9.1*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control



Description:


 Main parameter

No.

 Main parameter of Double Layer Roof Panel Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1000mm

3

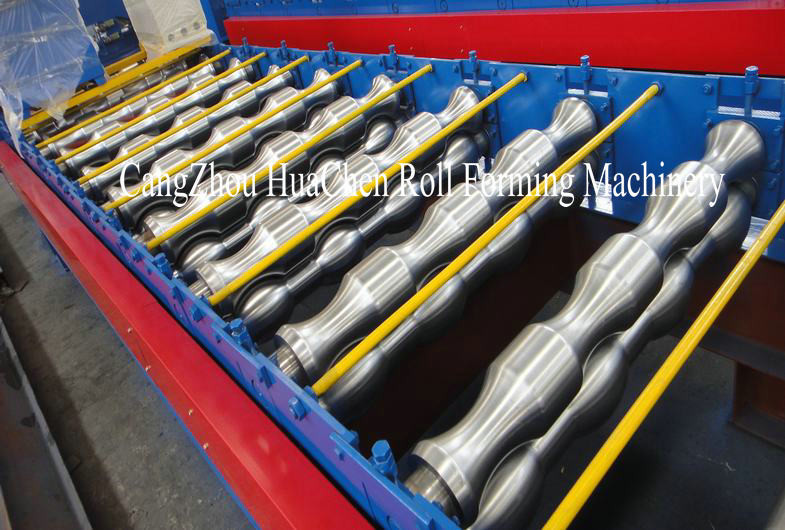

Rollers

upper level :14 rows
Down level :11 rows

4

Dimensions

9100*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control



Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting


Application

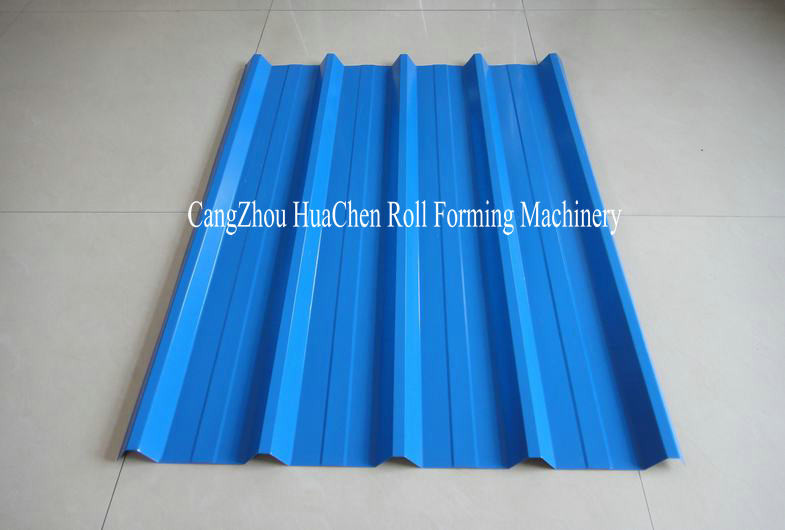

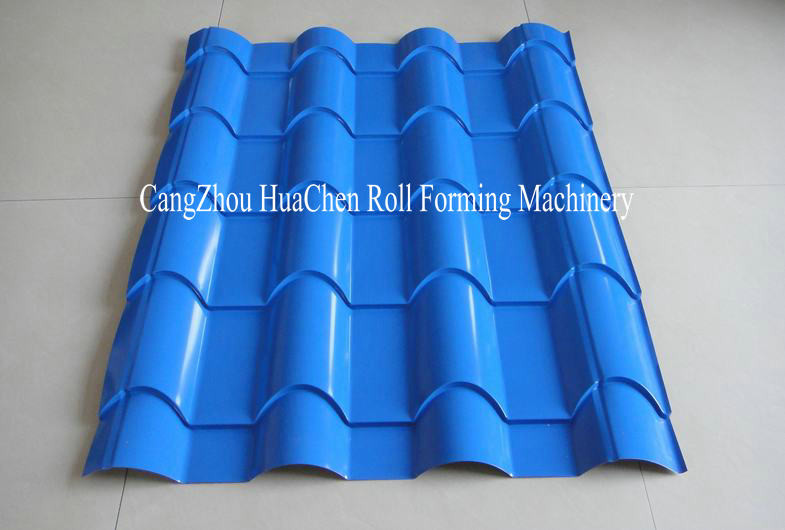

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site

Competitive Advantage
 1. CE certification
2. noiseless
3. easy operate
4.


5. easy maintain

Noiseless Double Sheet Metal Forming Equipment 9100 * 1550 * 1910mm 2
