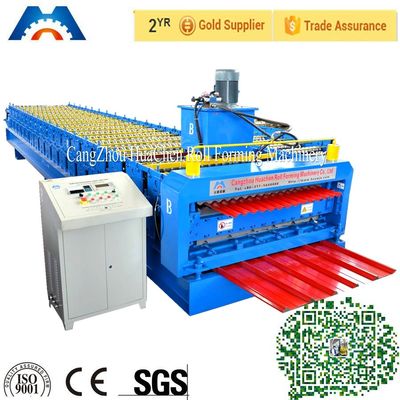

Double Sheet Roll Forming Machine
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 18/18 rows
4. Dimensions: 10.3*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Double layer roll forming machine Main parameter
No. | Main parameter of Double layer roll forming machine | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 1250mm |
3 | Rollers | upper level :18 rows |
4 | Dimensions | 10200*1550*1910mm |
5 | Power | 4+4kw |
6 | Rolling material | high grade 45# steel(plated chrome on surface) |
6 | Thickness of the plate | 0.3-0.6mm |
7 | Productivity | 15-20m/min |
8 | Diameter of the roller | Φ70mm |
9 | Voltage | 380V 50Hz 3phases |
10 | Material of the cutting plate | Cr12 |
11 | Hydraulic | 40# |
12 | Processing precision | Within 1.00mm |
13 | Control system | PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting
Application

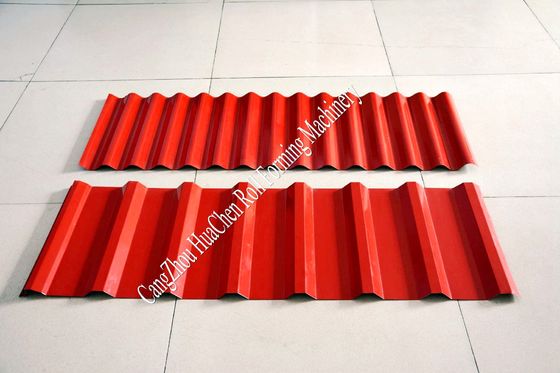

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site
Competitive Advantage
1. CE certification
2. noiseless
3. easy operate
4. high output
5. easy maintain
