Cr 12 Rollers Step Tile Cold Roll Forming Machine 380V 50Hz 3 Phases

المعلومات الأساسية
Place of Origin: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
Model Number: HC25-210-1050
Minimum Order Quantity: 1set
الأسعار: 12000-19000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
معلومات تفصيلية
Feature: two in one Warranty: life time
Speed: 0-2m/min
تسليط الضوء:

roll forming equipment

,

roof tile roll forming machine


منتوج وصف

Step Tile Glazed Tile Roll Forming Machine

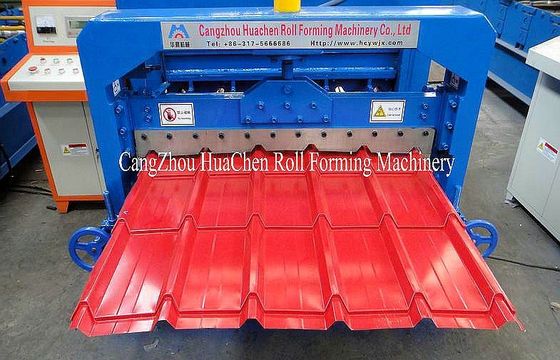

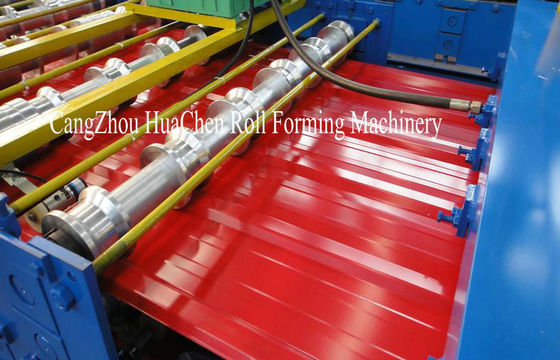

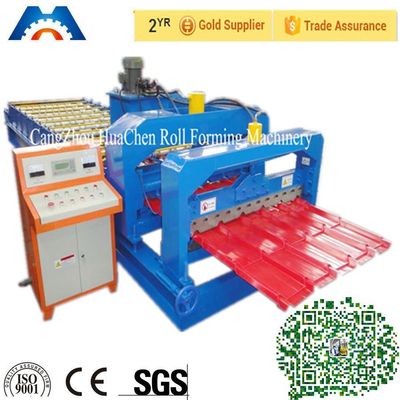

Cr 12 Rollers Step Tile Cold Roll Forming Machine 380V 50Hz 3 Phases 0Cr 12 Rollers Step Tile Cold Roll Forming Machine 380V 50Hz 3 Phases 1Cr 12 Rollers Step Tile Cold Roll Forming Machine 380V 50Hz 3 Phases 2

Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1250mm

3. Rollers: 11 rows

4. Dimensions: 6.6*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Step Tile Glazed Tile Roll Forming Machine Main parameter

No.

   Main parameter of Step Tile Glazed Tile Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

11 rows

4

Dimensions

6600*1550*1510m

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

4m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control





Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting





Application



This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.





Competitive Advantage



1. noiseless running

2. good quality

3. high grade steel

4. maintenance-free

5. easy to use

Cr 12 Rollers Step Tile Cold Roll Forming Machine 380V 50Hz 3 Phases 3
