منزل المنتجاتتسقيف صفح لف يشكّل آلة

19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use

زبون مراجعة
آلة سهلة الاستخدام. رئيسه هو لطيف جدا.

—— السيد أنجولون من أوروبا

هذه الشركة مصنعة جيدة ، ومتحدث جيد باللغة الإنجليزية ، وأنا أحب أجهزتك. انها ذات نوعية جيدة ، وجميلة!

—— Mr.Mark من افريقيا

مورد لطيف! أنا أحب التسليم السريع ودورة الإنتاج السريعة ، وسوف نبقى على اتصال مع اللاعبين.

—— السيد جاك من أمريكا

ابن دردش الآن

19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use

19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use
19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use
19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use

صورة كبيرة :  19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use

تفاصيل المنتج:
مكان المنشأ: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
رقم الموديل: HC25-155-820
شروط الدفع والشحن:
الحد الأدنى لكمية: 1set
الأسعار: 8000-19000USD
تفاصيل التغليف: Main machine is nude,the computer control box is packed by carton box
وقت التسليم: 30days
شروط الدفع: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
القدرة على العرض: 20 sets/month

19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use

وصف
Usage: roof cladding Roller material: 45# steel
Capacity: 15m/min Thickness: 0.3-0.8mm
Material: G550
تسليط الضوء:

cold roll forming machine,roof panel roll forming machine

,

roof panel roll forming machine

Steel Roof Sheet Roll Forming Machine for Roof Cladding



19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 019 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 119 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 2

Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1000mm

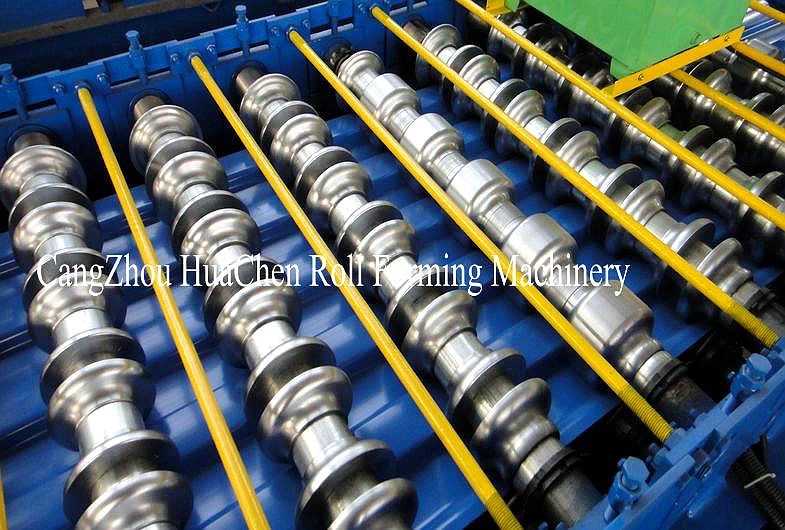

3. Rollers: 19 rows

4. Dimensions: 9.1*1.45*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.7mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Steel Roof Sheet Roll Forming Machine for Roof Cladding Main parameter

No.

   Main parameter of Steel Roof Sheet Roll Forming Machine for Roof Cladding

1

Suitable to process

Color steel plate

2

Width of the plate

1000mm

3

Rollers

19 rows

4

Dimensions

9100*1450*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)



6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

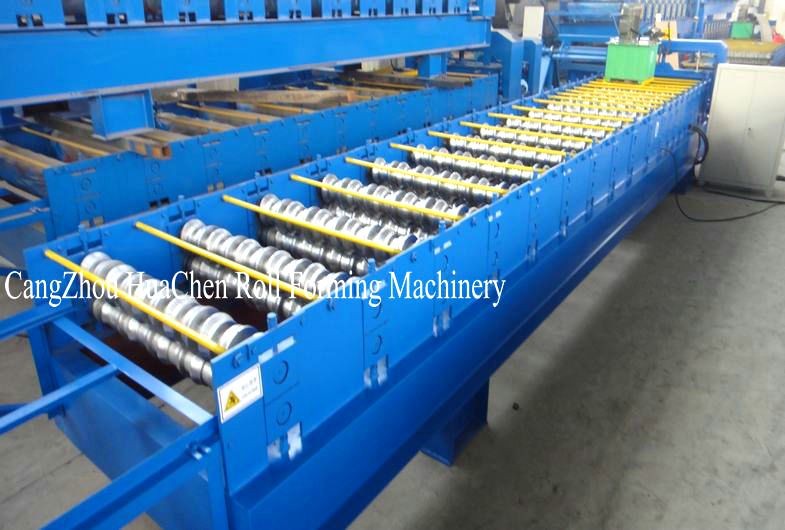

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting





Application

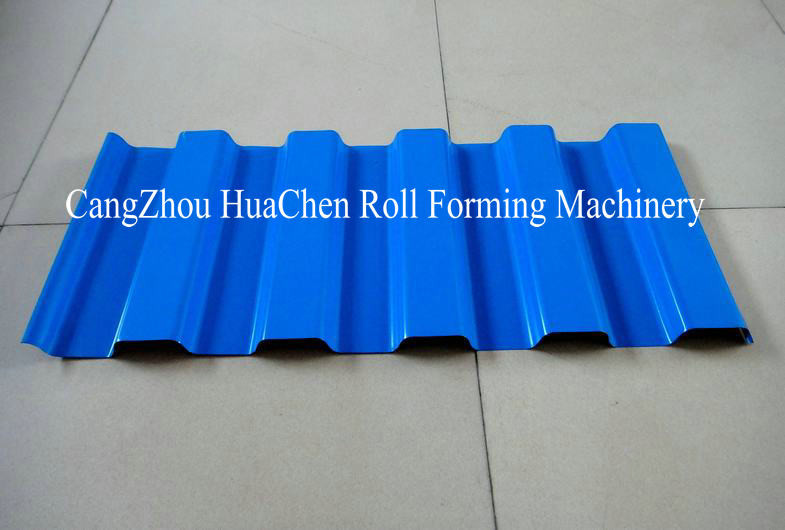

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage





1. CE certification

2 .ISO certification

3. working life 20 years

4. high quality steel

5. High efficiency

19 Rows Of Rollers Floor Deck Roll Forming Machine Cladding Use 3
