Floor Deck Panel Floor Deck Roll Forming Machine 28 Stations 12.7x1.85x1.61m

الصين Floor Deck Panel Floor Deck Roll Forming Machine 28 Stations 12.7x1.85x1.61m المزود
Floor Deck Panel Floor Deck Roll Forming Machine 28 Stations 12.7x1.85x1.61m المزود Floor Deck Panel Floor Deck Roll Forming Machine 28 Stations 12.7x1.85x1.61m المزود Floor Deck Panel Floor Deck Roll Forming Machine 28 Stations 12.7x1.85x1.61m المزود Floor Deck Panel Floor Deck Roll Forming Machine 28 Stations 12.7x1.85x1.61m المزود Floor Deck Panel Floor Deck Roll Forming Machine 28 Stations 12.7x1.85x1.61m المزود

صورة كبيرة :  Floor Deck Panel Floor Deck Roll Forming Machine 28 Stations 12.7x1.85x1.61m

تفاصيل المنتج:

Place of Origin: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
Model Number: HC151

شروط الدفع والشحن:

Minimum Order Quantity: 1set
الأسعار: 28000-6900USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
مفصلة وصف المنتج

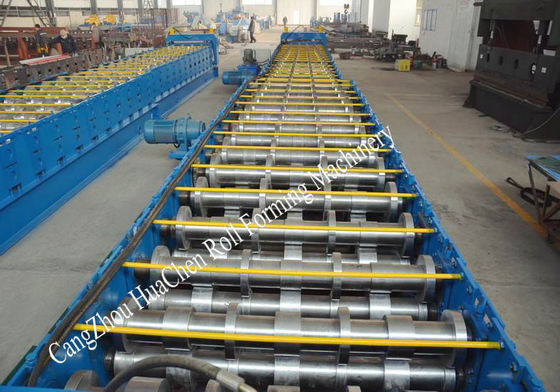

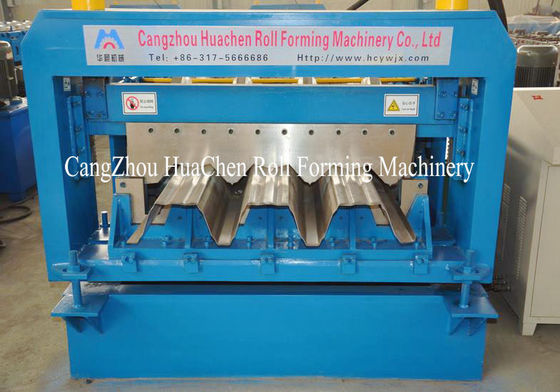

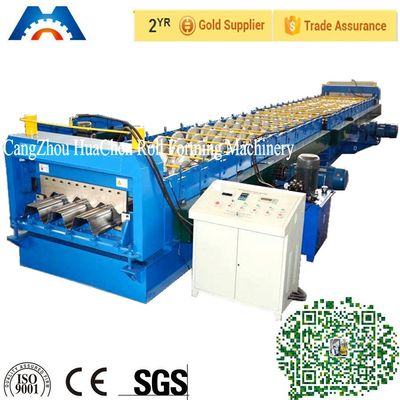

Floor Deck Panel Roll Former Machine 28 Stations High Automation



Floor Deck Panel Floor Deck Roll Forming Machine 28 Stations 12.7x1.85x1.61mFloor Deck Panel Floor Deck Roll Forming Machine 28 Stations 12.7x1.85x1.61mFloor Deck Panel Floor Deck Roll Forming Machine 28 Stations 12.7x1.85x1.61m

Floor Deck Panel Roll Former Machine 28 Stations High Automation





Description:



Floor Deck Roll Forming Machine Main parameter

No.

   Main parameter of Floor Deck Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1500mm

3

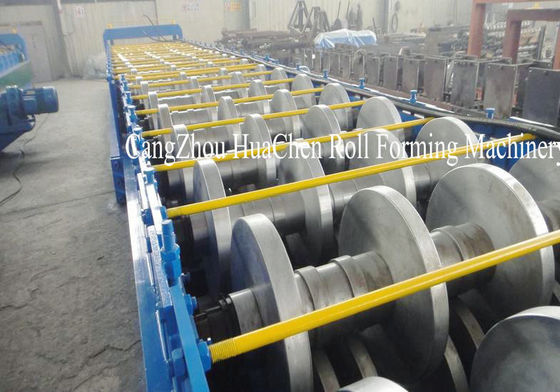

Rollers

28 rows

4

Dimensions

12.7*1.85*1.61m

5

Power

33+11.5kw

6

Rolling material

shaft bearing steel(quenching)

6

Thickness of the plate

1.5mm

7

Productivity

15m/min

8

Diameter of the roller

Φ100mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting





Application

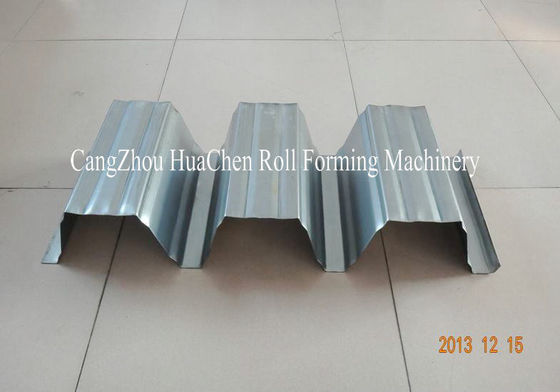

This type of sheet can be widely used in plant, house, storage and simple steel roof. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage



1. CE certification

2. hydraulic motor drive

3. Exported to more than 70 countries

4. suitable for various kinds of steel plate

5. voltage according to customer request

Why choose Huachen ?
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

2.Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

3.Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

4.Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.

5.Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
