Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation

شهادة
نوعية جيدة تسقيف صفح لف يشكّل آلة للمبيعات
نوعية جيدة تسقيف صفح لف يشكّل آلة للمبيعات
آلة سهلة الاستخدام. رئيسه هو لطيف جدا.

—— السيد أنجولون من أوروبا

هذه الشركة مصنعة جيدة ، ومتحدث جيد باللغة الإنجليزية ، وأنا أحب أجهزتك. انها ذات نوعية جيدة ، وجميلة!

—— Mr.Mark من افريقيا

مورد لطيف! أنا أحب التسليم السريع ودورة الإنتاج السريعة ، وسوف نبقى على اتصال مع اللاعبين.

—— السيد جاك من أمريكا

ابن دردش الآن

Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation

الصين Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation المزود
Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation المزود Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation المزود Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation المزود Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation المزود Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation المزود

صورة كبيرة :  Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO CE
Model Number: HC110

شروط الدفع والشحن:

Minimum Order Quantity: 1set
الأسعار: USD12000-18000
Packaging Details: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Delivery Time: 30 work days
Payment Terms: D/A, Western Union, L/C, T/T
Supply Ability: 20 sets per month
Contact Now
مفصلة وصف المنتج
Material: PPGi GI capacity: 8-10m/min
machine weight: 1.6T rollers: 45# steel
Type: Roll Forming Machine warranty: 12 month
technical support: whole life


Steel Shutter Strip Roll Forming MachineApplication

Our Roofing Tile Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

SPECIFICATIONS FOR Steel Shutter Strip Roll Forming Machine

Main Roll Forming Machine
Roller station
12 rows
Material of roller
High grade 45# forged steel plated with hard chrome plating
Material of cutter
Cr12 mould steel with quenched treatment

Material
Type
PPGI GI AL
Material width
customized
Material thickness
0.3-0.8mm

Others
Speed
8-10m/min
PLC system
EURA or customized
Weight
1.6T


Galvanized Steel Shutter Strip Roll Forming Machine Easy OperationGalvanized Steel Shutter Strip Roll Forming Machine Easy Operation     Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation


Steel Shutter Strip Roll Forming Machine Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
Galvanized Steel Shutter Strip Roll Forming Machine Easy OperationGalvanized Steel Shutter Strip Roll Forming Machine Easy OperationGalvanized Steel Shutter Strip Roll Forming Machine Easy Operation

Steel Shutter Strip Roll Forming Machine​ Parts

Detailed Images

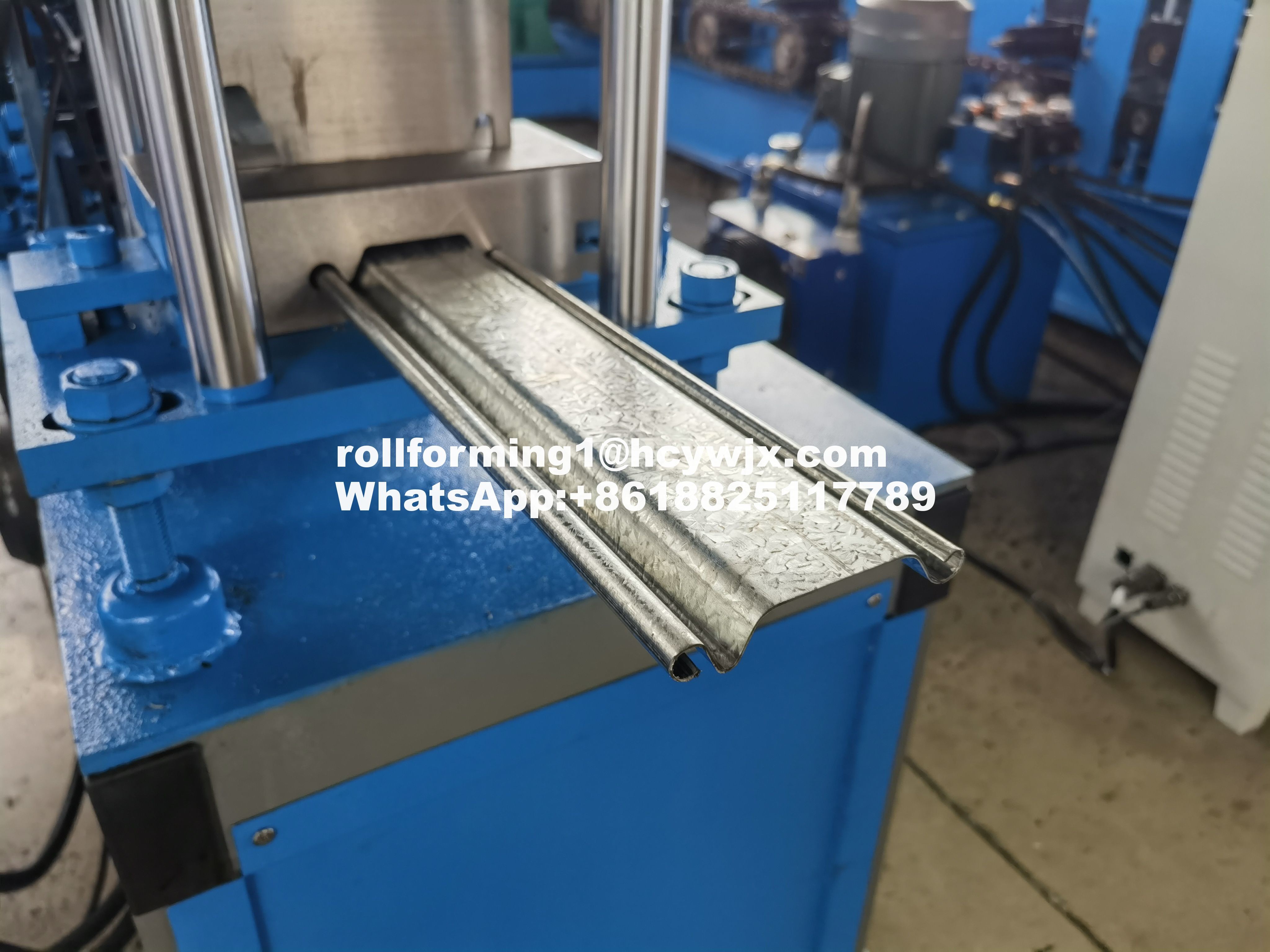

Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation

Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment

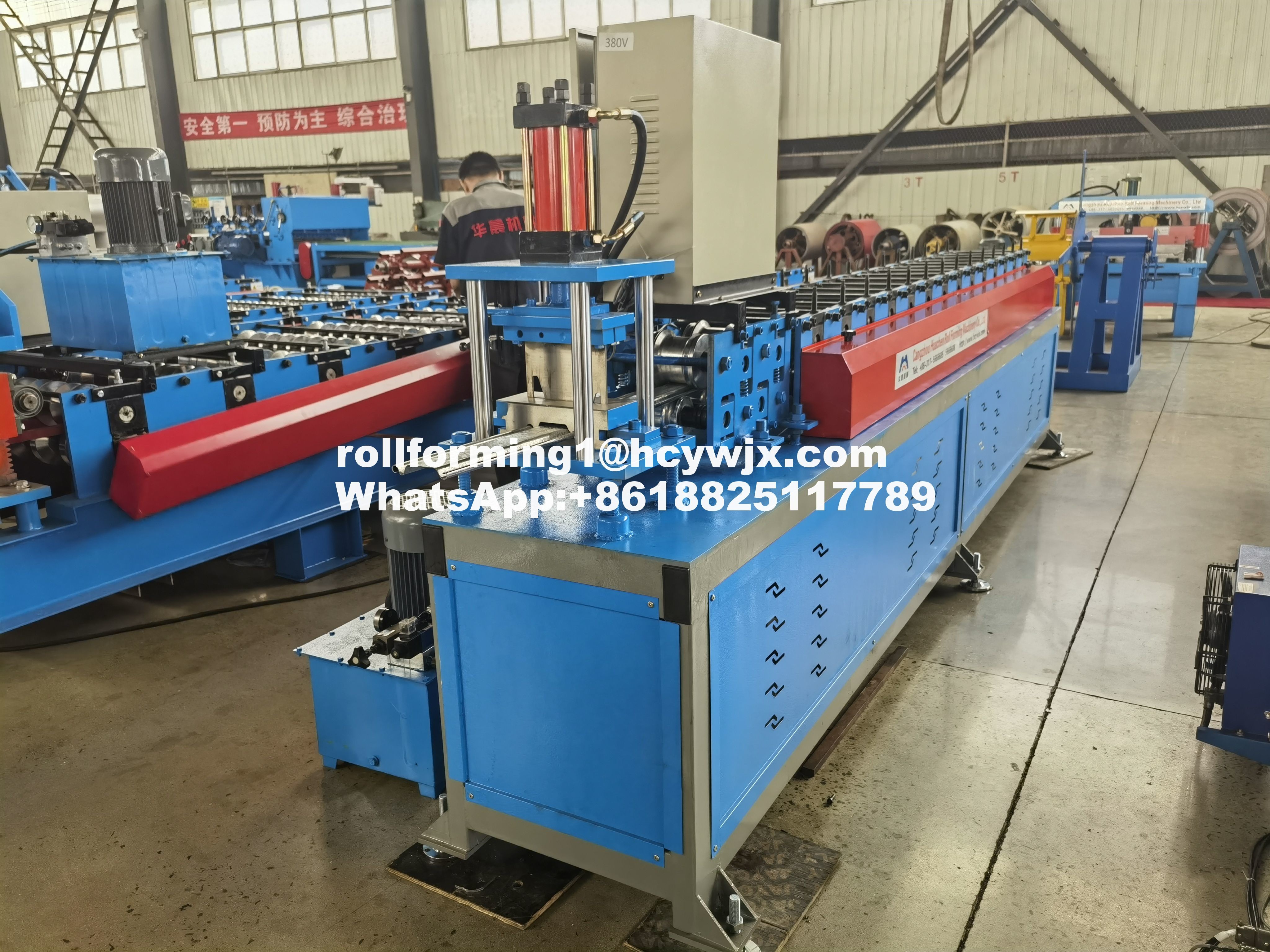

Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .



Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation

Hydraulic Cutting System

It adopts the Fly Saw cutting and automatic location to decide the dimension and cut the target products.
With non stop cutting
Material of blades: Cr12,quenching treatment

Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation



Our Service



Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation

Size: 3800 (L) * 850 (W) * 1310 (H)
Weight: 1.6T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation Galvanized Steel Shutter Strip Roll Forming Machine Easy Operation
