Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System

الصين Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System المزود
Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System المزود Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System المزود Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System المزود Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System المزود Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System المزود Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System المزود

صورة كبيرة :  Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System

تفاصيل المنتج:

Place of Origin: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
Model Number: HC18-30

شروط الدفع والشحن:

Minimum Order Quantity: 1set
الأسعار: 15000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment,
Supply Ability: 20 sets/month
Contact Now
مفصلة وصف المنتج
Usage: roof thickness: 0.3-0.6mm
weight: 6.6T warranty: 1 year

Durable Roof Panel Roll Forming Machine Application

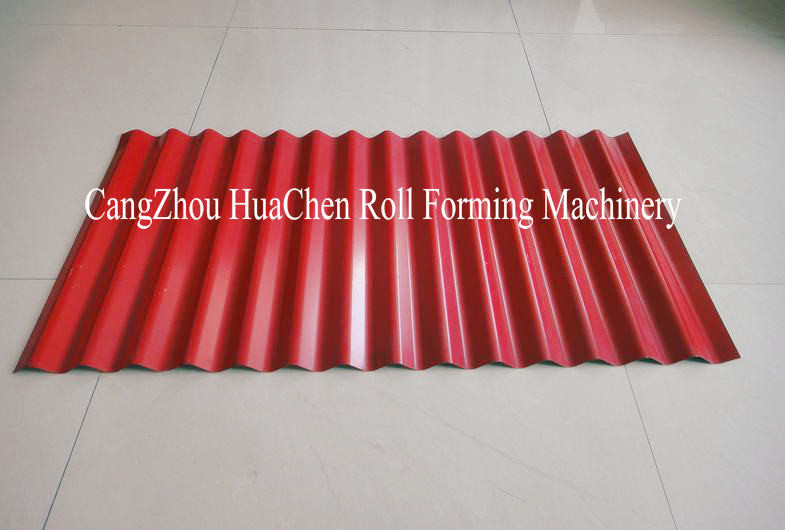

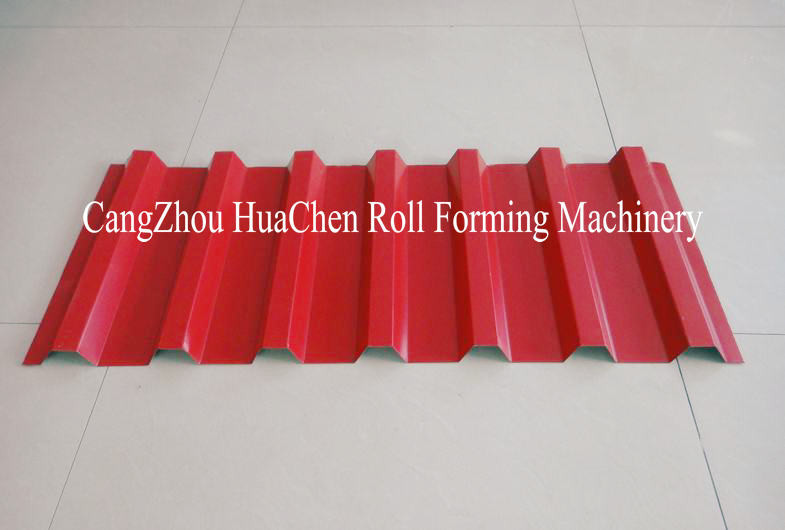

Our Durable Roof Panel Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

SPECIFICATIONS FOR Durable Roof Panel Roll Forming Machine

Main Roll Forming Machine
Roller station12+13 rows
Material of rollerHigh grade 45# forged steel plated with hard chrome plating
Material of cutterCr12 mould steel with quenched treatment

Material
TypePPGI GI AL
Material widthcustomized
Material thickness0.3-0.6mm

Others
Speed20m/min
PLC systemEURA or customized
Weight5.6T

Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System

Durable Roof Panel Roll Forming Machine Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control SystemDurable Double Layer Roll Forming Machine Mitsubishi / Siemens Control SystemDurable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System

Durable Roof Panel Roll Forming Machine​​​ Parts

Detailed Images

Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System

5T Manual decoiler

Dimensions: 1700*1000*800
Width: 1250mm
Inner Diameter: 450-508mm
Capacity: 5T
Quality: 1 set
We also have Hydraulic type for 5T to 10 T .

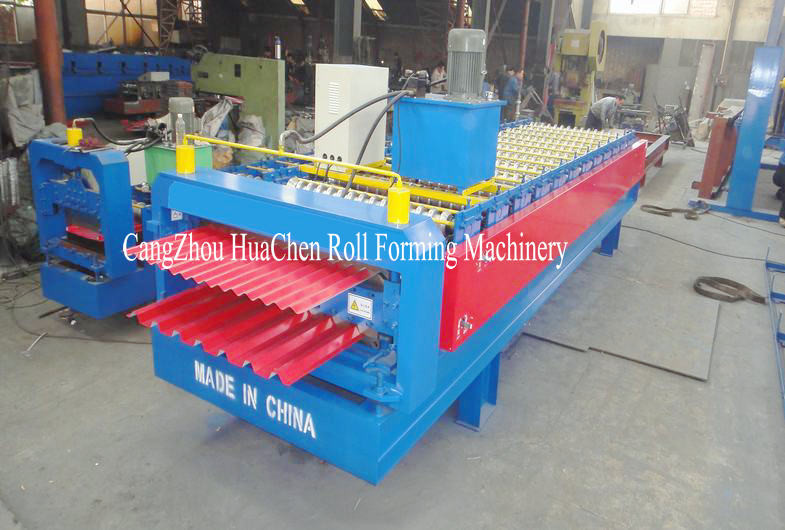

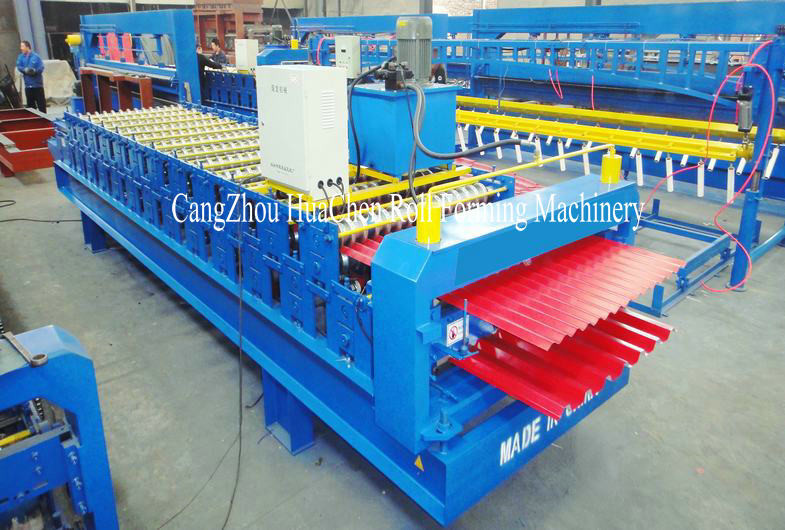

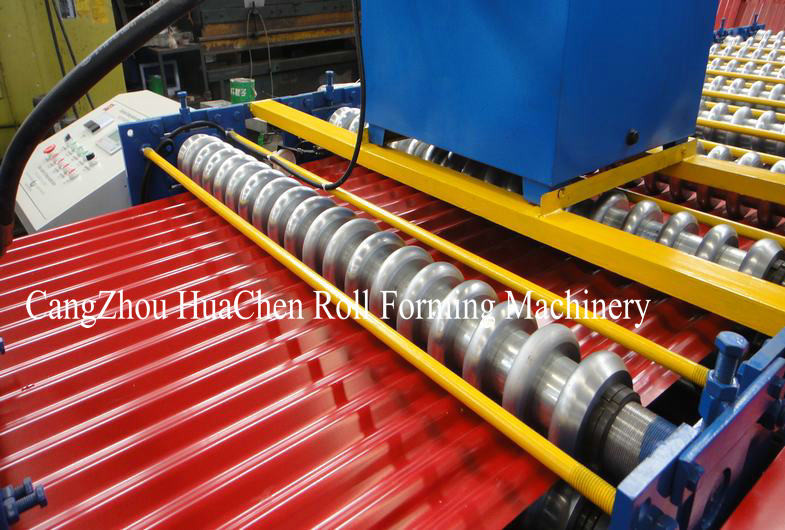

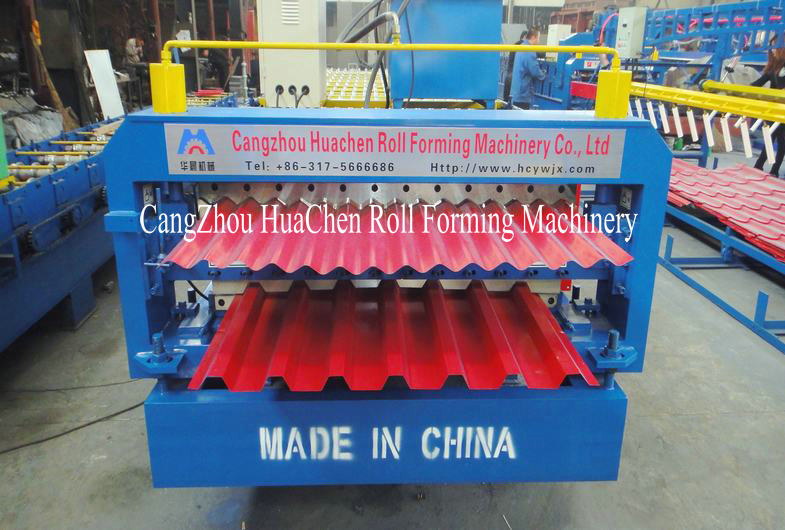

Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .

Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System

Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System

Hydraulic Pump Station

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PLC control system

PLC Brand : EURA or Customized
Language: English and Chinese
Control panel: Button or Touch Sreen
Frequency converter : EURA or customized
HMI : Easy to operate

Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System

Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System

Hydraulic Cutting

Forming and Cutting: Cut the sheet after roll forming to required length
Material of blade: Cr12, 58-62 HRC hardness
Hydraulic power : 4KW
Length measuring : Automatic encoder length measuring
Tolerance of length : +/- 1.5mm for each piece

Out Put Table

Size: 1500*1300*700mm
Quantity: 2 sets
We also have Auto stacker for automatic production line .

Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System


Our Service



Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control SystemDurable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control SystemSize: 11500 (L) * 1500 (W) * 1510 (H)
Weight: 28T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System Durable Double Layer Roll Forming Machine Mitsubishi / Siemens Control System
