Color Steel Glazed Tile Roll Forming Machine , Roof Wall Cladding Roll Former Machine

الصين Color Steel Glazed Tile Roll Forming Machine , Roof Wall Cladding Roll Former Machine المزود

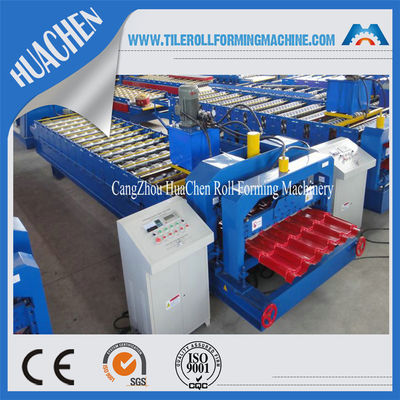

صورة كبيرة :  Color Steel Glazed Tile Roll Forming Machine , Roof Wall Cladding Roll Former Machine

تفاصيل المنتج:

Place of Origin: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
Model Number: HC28

شروط الدفع والشحن:

Minimum Order Quantity: 1set
الأسعار: 12000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
مفصلة وصف المنتج
type: cold roll forming usage: villa roof
thickness: 0.3-0.6mm warranty: 1 year
Production capacity: 8-12m/min Power(W: 4+5.5kw
life time: 10 years

Detailed Product Description



Color Steel Glazed Tile Roll Forming Machine , Roof Wall Cladding Roll Former Machine


Quick details:

1. Condition: New, Type: Tile Forming Machine.
2. Tile Type: Steel, Use: Roof.
3. Place of Origin: Wuxi, Brand Name: LUOLE

Description

1. Tile roof roll forming machine is the most popular machine to produce cold rolled metal glazed tile roof. It is one of the important machine in building construction area.
2. We are professional manufacturer of tile roof roll forming machine and have rich experiences.

The feature and advantage of our tile roof roll forming machine:

1. The whole line of tile roof roll forming machine include the decoiler for coils from 5ton to 10ton, guide feeding device, roll forming machine, hydraulic cutting and auto stacker or manual stacker for finished products.
2. This line can be automatic running by inputting the length and batches in the PLC system.
3. The strong H beam base is treated to avoid the vibration when working.
All the forming rollers are CNC lathe processed to guarantee the accuracy.
4. All the rollers are high grate steel polished and chrome coated to guarantee the life
5. The human computer interface operate system will save human source to operate the production line.

Main specification:

● Material thickness: 0.4-0.8mm
● Material width: depend on customer’s requirement
● Forming Station: 13-20 ( depend on profile drawing )
● Working Speed: 0-6m/min
● Transporting Type: Chain Transmission
● Type of Cutting: Hydraulic cutting
● Electrical Control: PLC Frequency Control System with touch screen
● PLC: PANASONIC
● Encoder: OMRON
● Transducer: PANASONIC
● Machine Weight: about 5 Ton

The Equipment list is as follows:

CompenentQtyRemark
Decoiler1Loading the coil material
Feeding guide device1Feeding and guide the material sheel
Main roll forming machine1Roll form the metal sheet
Hydraulic step stamping1Stamping the tile step
Hydraulic Cutting blade1Cutting the formed products
Hydraulic Station1Provide power for cutting
PLC control cabinet1Electrical control system
Output table1Load the finished products


The working flow layout:

Decoiler–feeding guide–roll forming machine–Hydraulic step stamping–Hydraulic cutting–Output table

Glazed Tile Roll Forming Machine for Color Steel Tile , Roof Wall Cladding , Wave Tile

Some sample profiles:

Color Steel Glazed Tile Roll Forming Machine , Roof Wall Cladding Roll Former MachineColor Steel Glazed Tile Roll Forming Machine , Roof Wall Cladding Roll Former MachineColor Steel Glazed Tile Roll Forming Machine , Roof Wall Cladding Roll Former Machine

Application

Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.

Advantages


· Excellent quality

· Reasonable price

· One class after sales-service

· 1 Year Warranty from shipment

· More than 15 years manufacturing experience
