Auto Glazed Tile Roll Forming Machine , roofing sheet forming machine PLC Control

الصين Auto Glazed Tile Roll Forming Machine , roofing sheet forming machine PLC Control المزود

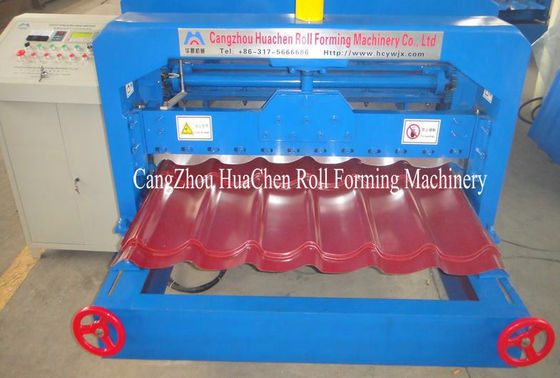

صورة كبيرة :  Auto Glazed Tile Roll Forming Machine , roofing sheet forming machine PLC Control

تفاصيل المنتج:

Place of Origin: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO/CE
Model Number: HC24

شروط الدفع والشحن:

Minimum Order Quantity: 1set
الأسعار: 12000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
مفصلة وصف المنتج
Certificate: ISO9001:2000;CE type: glazed tile roof sheet
control system: PLC control raw material thickness: 0.3-0.6mm
Warranty: 1 Year forming speed: 2-4m/min



Auto Glazed Tile Roll Forming Machine , roofing sheet forming machine PLC Control



Characteristic of Glazed Tile Roll Forming Machine

  • This Color Steel Roof Glazed Tile Roll Forming Machine can rollform metal roof tiles. After roll formed by this glazed roof tile roll forming machine, the surface of metal roof glazed tile is very smooth and beautiful without any scratch on the surface of tile profile sheets.
  • The Steel Glazed Roof Tile Roll Forming Machine is with fully automatic control system with PLC.
  • Length, quantity of sheets is adjustable.
  • Rollforming process: Decoiler, Rollforming, Pressing & Cut to length.
  • Easy operation: Key in the length and quantity on the control panel.
  • 1 Year warranty, lifelong time service.
  • We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized.



Main Components of Glazed Roof Tile Roll Forming Machine



Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Main Glazed Tile Roll Forming Machine 1 Unit
Hydraulic Pressing for Step 1 Unit
Hydraulic Cutting System 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Box 1 Unit
Support Tables 2 Units



Technical Specifications of Glazed Tile Roll Forming Machine



Machine Name Glazed Tile Roll Forming Machine
Material Thickness 0.3-0.7mm
Coil width Custom-made, 1000mm or 1200mm or 1250mm
Yield Strength 250-300 Mpa
Material PPGI, Color Steel, GI.
Decoiler / Uncoiler Uncoiler Type Manual or Hydraulic or Auto Type
Coil Width Max. 1250mm
I.D 508-610mm
O.D Max. 1500mm
Glazed Tile Roll Forming Machine Forming Stations 13-18 Stations ( Depend on Profiles )
Roller material 45# steel, surface coated with 0.05mm hard chrome
Diameter of shaft 76mm
Shaft material High grade 45# steel
Drive type Chain transmission
Forming speed 0-15m/min
Main power 5.5KW
Pressing Device Pressing Type Hydraulic type pressing
Pressing Mould Cr12 Mov steel, HRC58-62
Cutting Device Cutting type Hydraulic cutting
Cutting Die Material Cr12Mov steel, HRC58-62
CuttingTolerance 10m+/-1.5mm
Encoder OMRON Brand
PLC Electrical Control Board PLC PANASONIC Brand
Inverter YASKAWA Brand
Touch screen PANASONICE
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Hydraulic Power 5.5KW
Runout Tables Table type Simple nonpower type
Function To support the finished panels

Auto Glazed Tile Roll Forming Machine , roofing sheet forming machine PLC ControlAuto Glazed Tile Roll Forming Machine , roofing sheet forming machine PLC ControlAuto Glazed Tile Roll Forming Machine , roofing sheet forming machine PLC Control

Working Flowing of Glazed Tile Roll Forming Machine



Decoiler ---> Fedding Guide ---> Roll Forming ---> Pressing ---> Cut-to-length ---> Run out table



Application of Glazed Tile Roll Forming Machine



Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding



HUACHEN Advantage



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience
  • Copra designing software
  • 5-8 technicians every month specially do international installation and debugging.
