تفاصيل المنتج:
|
| type: | Automatic Glazed Tile Steel Roof Sheet Roll Forming Machine With PLC Control System | rollers: | 17 |
|---|---|---|---|
| roller material: | No.45 steel | warranty: | 12 month |
| تسليط الضوء: | cold roll forming machine,roof panel roll forming machine,roof panel roll forming machine |
||
Automatic Glazed Tile Cold Roll Forming Equipment With PLC Control System
Description
Corrugated roof sheet roll forming machine is widely used to produce the metal roof and wall cladding. It is becoming the most popular roof and caldding style in many countries.
The whole line of corrugated roof sheet roll forming machine is composed by decoiler(automatic or manual) for coils from 5ton to 10ton, roll forming machineinclude the guide and feeding device.
cutting blade drived by hydraulic power and auto stacker or manual stacker for finished products. This line can be automaticly running by inputing the length and batches into the PLC control system.
Easy operation: Directly input the data on the touch table screen.
Customers may decide the profile of products.
Quick details:
1. Brand Name: HUACHEN, Certification: ISO, CE.
2. Warranty: one year and life long tracking service.
3. After-sales Service Provided: Engineers available to service machinery overseas.
Specifications
| Item | Steel Roof Sheet Roll Forming Machine | |
| Coil Material | Yield Strength | 350-500 MPa |
| Material | PPGI, Color Steel, GI. | |
| Decoiler / Uncoiler | Coil Width | Max. 1250mm |
| I.D | 440-530mm | |
| Steel roof forming machine | Diameter of shaft | 76mm |
| Shaft material | High grade 45# steel | |
| Cutting | Cutting power | 4 KW (Hydraulic station) |
| Cutting Tolerance | 10m+/-1.5mm | |
| Electrical control | Inverter | Siemens Brand |

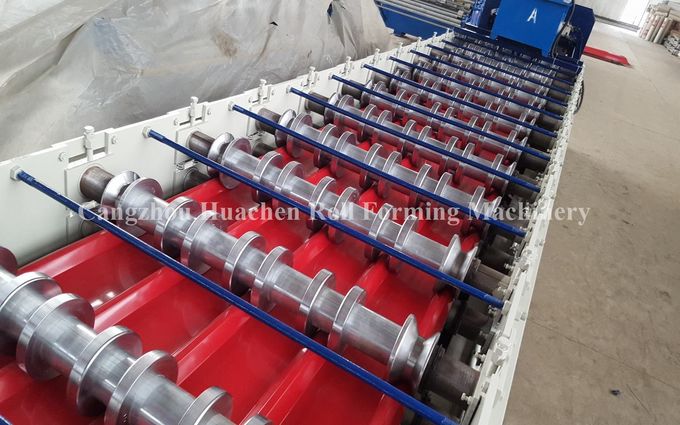

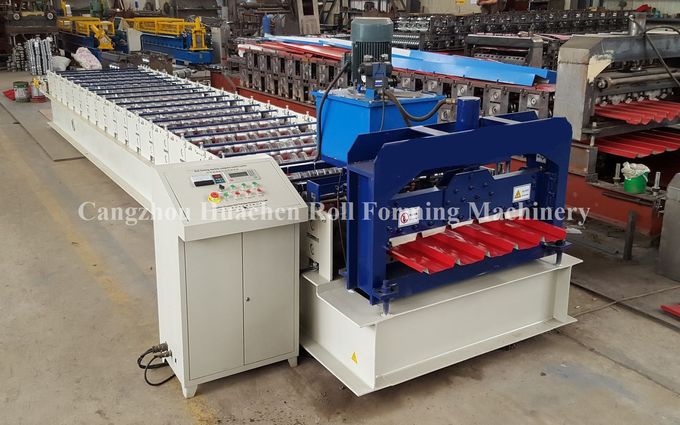

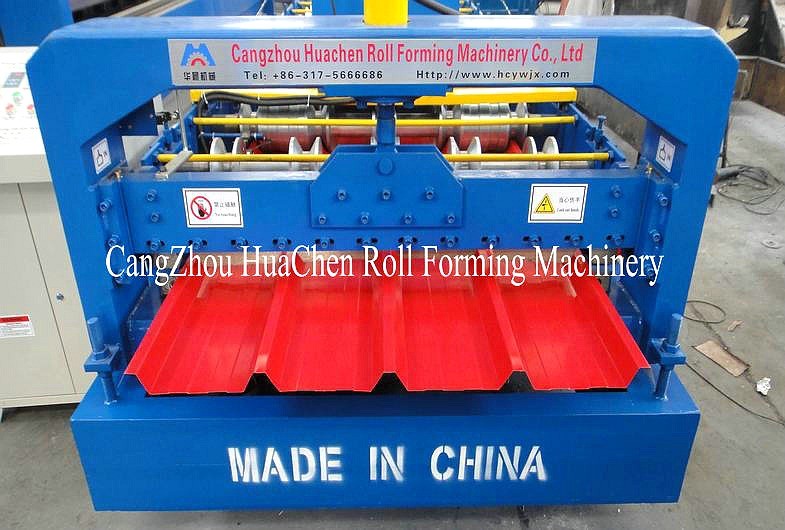

Steel Roof Roll Forming Machine Pictures
The Equipment list is as follows:
| Compenent | Qty | Remark |
| Decoiler | 1 | Loading the coil material |
| Feeding guide device | 1 | Feeding and guide the material sheet |
| Main roll forming machine | 1 | Roll form the metal sheet |
| Hydraulic Cutting blade | 1 | Cutting the formed products |
| Hydraulic Station | 1 | Provide power for cutting |
| PLC control cabinet | 1 | Electrical control system |
| Output table | 1 | Load the finished products |
Application
Construction, Store Fixture, Metal roof wall cladding, roof wall panel, Metal Roof sheet, trapezoidal roof metal, trapezoidal roofing, trapezoidal panel, corrugated roofing, corrugated panel, metal roof; steel roof.
Advantages
1. We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, debugging and maintenance service to all customers. 2. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
