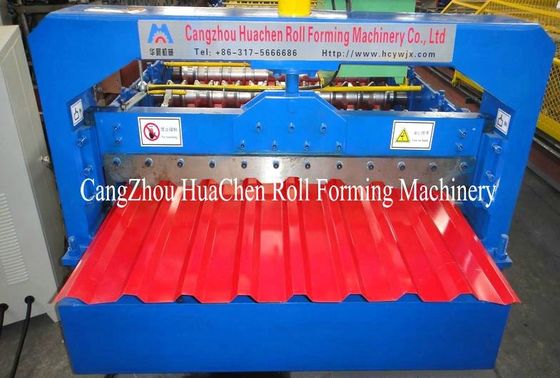

High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel

High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel
High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel

صورة كبيرة :  High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel

تفاصيل المنتج:
مكان المنشأ: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
رقم الموديل: HC18
شروط الدفع والشحن:
الحد الأدنى لكمية: 1set
الأسعار: 8000-19000USD
تفاصيل التغليف: Main machine is nude,the computer control box is packed by carton box
وقت التسليم: 30days
شروط الدفع: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
القدرة على العرض: 20 sets/month

High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel

وصف
Type: 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel Usage: Wall
Machine power: 4+4KW Speed: 15-20m/min
Worker: 1-2only life time: 20 years
تسليط الضوء:

sheet metal rolling equipment,roof tile roll forming machine

,

roof tile roll forming machine



High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel



Features


The wall panel forming machine features high speed, high production, good performance, low labor and is economical. This roll former is the best choice for producing the metal sheet cold roll forming products.

Application


Our wall panel roll forming machine produces different kinds of wall panels. The roll formed panels are primarily used in temporary building sites, steel structure workshops, and other public buildings and feature fast construction speed. Our wall panels are durable, have an attractive appearance, etc.



Flow Chart


Decoiling the sheet---Guiding the sheet---Roll forming---Measuring the length---Cutting the sheet---on the output table



Machine Placement and Operator


The wall panel forming machine should be placed on an even cement floor and lifted with a lifting device with a lifting capacity not less than five tons. The machine requires space for storing materials and laying the machine and enough room for it to operate. The roll forming machine requires one operator and one porter.



Components of Wall Panel Roll Forming Machine



Guiding Table 1 set
Manual Decoiler 1 set
Main Forming Machine 1 set
PLC Control System 1 set
Hydraulic Cutting Station 1 set
Output Table 1 set



Parameters of wall panel roll forming machine



Item Description
Material Width 1000mm
Material Thickness 0.3mm-0.8mm
Material PPGI GI
Yield Stress 235Mpa
Material of Roller 45# steel plated hard chromium 0.05mm
Diameter of Shaft 70mm
Voltage AC380v/50hz or per customer's requirement
Motor Power 4kw
Hydraulic Power 3kw
Stand 13
Control System Mitsubishi PLC frequency conversion
Hydraulic Cutting Material Cr12 heat treatment
Speed 8-15m/min
Decoiler 5 tons manual or hydraulic

C18

Item Description
Material Width 1250mm
Material Thickness 0.3mm-0.8mm
Material PPGI GI
Yield Stress 235Mpa
Material of Roller 45# steel plated hard chromium 0.05mm
Diameter of Shaft 70mm
Voltage AC380v/50hz or per customer's requirement
Motor Power 4kw
Hydraulic Power 3kw
Precision 10m±2mm
Control System Mitsubishi PLC frequency conversion
Hydraulic Cutting Material Cr12 heat treatment
Speed 8-15m/min
Decoiler 5 tons manual or hydraulic

High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel 0High speed 0.4 - 0.8mm Thickness Wall Panel Roll Forming Machine For Garden , Hotel 1



Our advantage



We are a China-based wall panel forming machine manufacturer and supplier. Through our years of experience and continued efforts of our dedicated staff, we offer customers a great variety of roll forming machines, like double layer forming machines, tile forming machines, wall panel forming machines, sandwich panel production lines, and others. Our location in Wuxi City gives us easy access to convenient air, land and sea transportation. This keeps our costs down, and reduces transportation costs for our customers.
If you have a need for any of our products, please feel free to contact us at We . We look forward to working with you.
