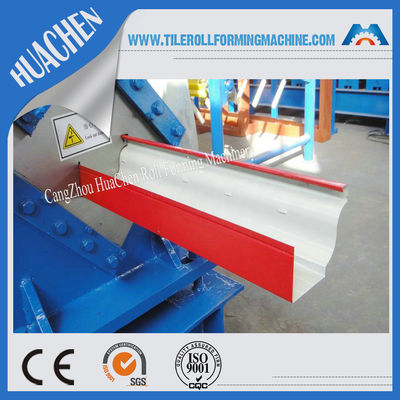

Steel forming machine is to produce light steel main equipment, the use of steel or steel cold-formed after forming, rolling production models of a variety of specifications purlins finished.
The wall thickness of the product out of the apparatus can be made very thin, but also greatly simplifies the production process, improve production efficiency. Wall thickness can be produced hot-rolled with the general method but difficult to produce a uniform cross-sectional shape of the complex variety of profiles and cold-formed steel of different materials.
|
Manual Un-coiler
|
◊ Max Capacity: 5000kgs
◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
|
|
Leveling Device
|
◊ Ensure the material level and straight
◊ The width can be adjusted |
|
Main Forming System
|
◊ Width & Height & Thickness of sheet: According to Drawings
◊ Material: GI sheet coil or Colored sheet coil ◊ Motor Power: 5.5 kw forming system ◊ Roller material:Cr12. ◊ Surface of Roller: Heat treatment HRC58-60. ◊ Diameter of main shaft: 60mm #45 steel, heat treat modulation ◊ Forming station: 12 stations. ◊ Transmission: by chain and gear
◊ Measuring accuracy: +/- 0.5 mm/M.
◊ Safety Hood: Cage
◊ Arch middle plate: 30mm thickness.
◊ Output: 8-10 Tons per shift (8 hrs.).
◊ The machine base is assembled and welded by high quality steel.
|
|
Hydraulic Cutting Device
|
◊ Cutting way: Tracking (Flying)..
◊ Oil pump station: 1set ◊ Motor power of Oil pump station: 7.5kw with cooling system. ◊ Forced air cooling device available. ◊ Cutting mould: 1 sets.
◊ Material of blade: CR12 with heat treatment HRC60-62.
|
|
Electrical System
|
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement) |
|
Run-out Table
|
◊ Frame: 8# steel groove welded
◊ Roller type. ◊ Quantity: 1 pc |
A: Please look at my contact card. You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you
A: Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee 100$/day to our point account. We will provide the technical support for the whole life of the equipment and free training.
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.A: Our company has been producing roll forming machines for almost 20years.We have rich experience for manufacturing and designing the machine.
> Warranty: 2 Years.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,
those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
> We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it's not free.
> We will provide the technical support for the whole life of the equipment.
>TERMS:
1. Delivery: in stock
2. Package: Export Standard package for container
3. Payment: TT(30% by TT in advance, 70% by TT after you inspect the machine )
4. Validity: good for 30days
