تفاصيل المنتج:
|
| Material: | PPGi GI | capacity: | 20m/min |
|---|---|---|---|
| machine weight: | 4.5T | rollers: | 45# steel |
| Type: | 0.15mm-0.4mm Galvanized Steel Automatic Roof Roll Forming Machine / Roof Sheet Roll Forming Machine | Suitable Material: | Q235 or equivalent |
| تسليط الضوء: | cold roll forming machine,roof panel roll forming machine,roof panel roll forming machine |
||

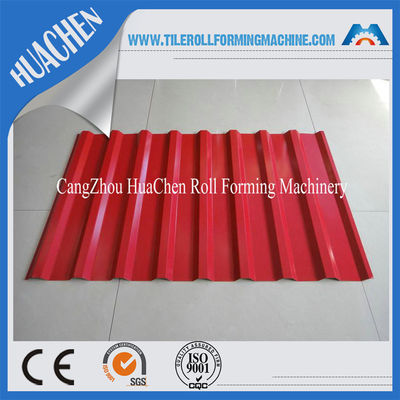

Horizontal Corrugated Roll Forming Machine Roof Sheet Making High Speed
Corrugated roof sheet making roll forming machine for sale is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.
Technical Parameters
| No | Item | Parameter | Remark | |
| 1 |
Suitable
Material |
Type | color steel | |
| Width(mm) | 1200 | According to customer's requirement | ||
| Thickness(mm) | 0.4-0.7 | According to customer's requirement | ||
| Yield Strength(Mpa) | 230-300 | According to customer's requirement | ||
| 2 | Forming Speed(m/min) | 20 | Not including cutting time | |
| 3 | Roller Material | No.45 steel | with hard chromized | |
| 4 | Cutting Model | Hydraulic Cutting | According to customer's requirement | |
| 5 | Power source | Type | 440V/3PH/60HZ | According to customer's requirement |
Machine Components
| No | Name | Quantity | Remarks | |
| 1 | Decoiler | 1set | Up to customer | |
| 2 | Main machine | Pre-cutting device | 1set | Up to customer |
| Feeding device | 1set | |||
| Roll forming system | 1set | |||
| Post cutting device | 1set | |||
| Hydraulic system | 1set | |||
| 3 | Electric control system | 1set | ||
| 4 | Supporter/Automatic Stacker | 1set | Up to customer | |
Q:What’s the delivery time?
A:Normaly will take 60days, for small lines will take 30 days.
Q:Do you have after-sale support?
A:Yes, we’re always here for giving you advice and support for technical details since we have senior technician.
Q:Is there quality control when manufacturing the lines?
A:Yes, we have a group of team who will be responsible for quality control from laying off the raw material, processing the rollers and the other parts, make treatment on the roller surface and shaft, assembling, testing and packaging.
Q:What’s your strength comparing to the other supplier?
A:We’ll supplying you the best quality and service. We’ll give you good advise beyond your requirements. The lines are easily for installation and with low mantenance requirements.
Q:Can we be your agency abroad?
A:Surely if you have business for roll forming lines and we will welcome a lot for cooperating together
