منزل المنتجاتكاب ريدج دحر آلة تشكيل

Plc Control 50hz Ridge Cap Sheet Metal Roll Former Machine With High Speed

شهادة
نوعية جيدة تسقيف صفح لف يشكّل آلة للمبيعات
نوعية جيدة تسقيف صفح لف يشكّل آلة للمبيعات
آلة سهلة الاستخدام. رئيسه هو لطيف جدا.

—— السيد أنجولون من أوروبا

هذه الشركة مصنعة جيدة ، ومتحدث جيد باللغة الإنجليزية ، وأنا أحب أجهزتك. انها ذات نوعية جيدة ، وجميلة!

—— Mr.Mark من افريقيا

مورد لطيف! أنا أحب التسليم السريع ودورة الإنتاج السريعة ، وسوف نبقى على اتصال مع اللاعبين.

—— السيد جاك من أمريكا

ابن دردش الآن

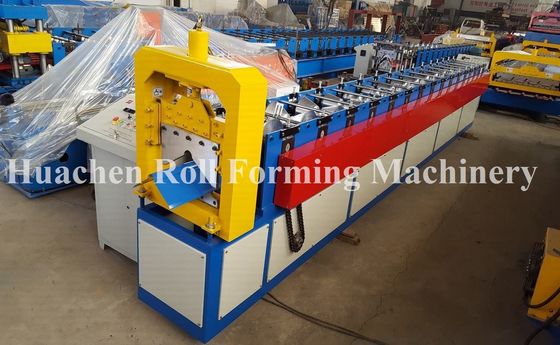

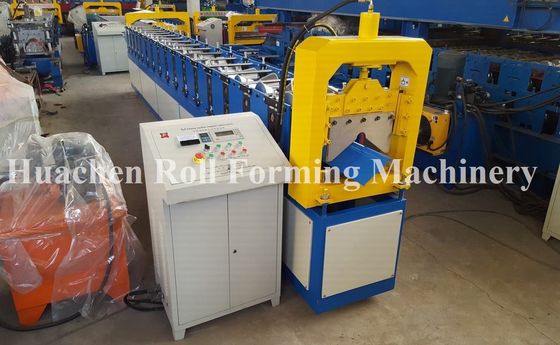

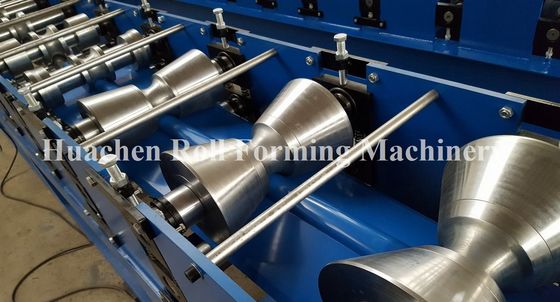

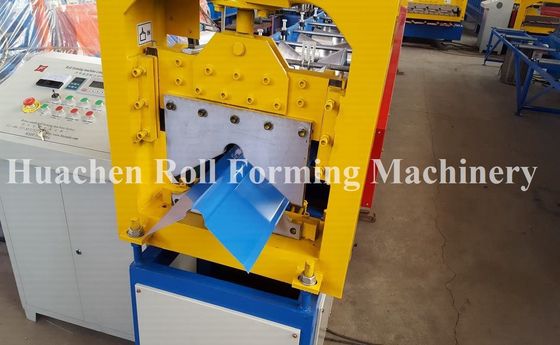

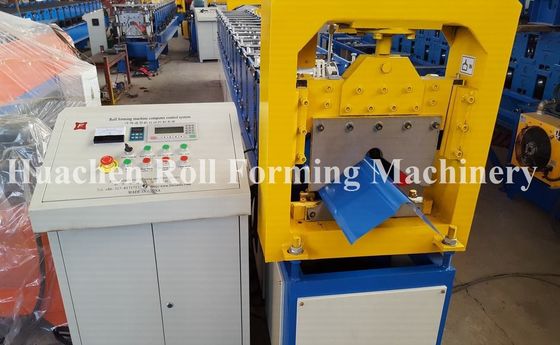

Plc Control 50hz Ridge Cap Sheet Metal Roll Former Machine With High Speed

الصين Plc Control 50hz Ridge Cap Sheet Metal Roll Former Machine With High Speed المزود
Plc Control 50hz Ridge Cap Sheet Metal Roll Former Machine With High Speed المزود Plc Control 50hz Ridge Cap Sheet Metal Roll Former Machine With High Speed المزود Plc Control 50hz Ridge Cap Sheet Metal Roll Former Machine With High Speed المزود Plc Control 50hz Ridge Cap Sheet Metal Roll Former Machine With High Speed المزود Plc Control 50hz Ridge Cap Sheet Metal Roll Former Machine With High Speed المزود

صورة كبيرة :  Plc Control 50hz Ridge Cap Sheet Metal Roll Former Machine With High Speed

تفاصيل المنتج:

Place of Origin: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
Model Number: HC370

شروط الدفع والشحن:

Minimum Order Quantity: 1set
الأسعار: 8000-19000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
مفصلة وصف المنتج



Plc Control 50hz Ridge Cap Sheet Metal Roll Former Machine With High Speed

Product Description

CostPro panel lines



Today the Chinese manufactured panel roll formers are making most world’s steel fabricators dreams come true, it is no longer a non-affordable business by using many panel roll formers in workshop to produce in large quantity and a variety of different profiles.



However, the quality of Chinese panel roll formers are always on the a huge debate, and hundreds of different online offers make a decision even more difficult, as you may need to visit lots of different factories to find out the real quality they are making.



Now you don’t have to be worried that we offer you a balanced solution with decent quality make you business to another level, meanwhile a customized configuration make the price more transparent and affordable.



What we can offer is a versatility and meanwhile quality assurance for any panel machines from economic basic production speed to fast panel lines up to 50m/min:



We offer a range different panel roll formers for wall, roof, steel decks, step tiles &standing seam profiles



This tile forming machine is the roll forming machine for steel sheet cold-form industries. It continuously forms the steel sheet according to customer’s requirement with automatic press and cut to length.

Machine has high forming speed, low noise, stable transmission and easy operation.





  • Technical parameter
Item Parameter



Suitable material

Type Pre-painted sheet
Thickness(mm) 0.5-0.8
Yield stress (Mpa) 235-350
Width (mm) 1250
Working speed (m/min) About 5
Main machine motor (Kw) 4
Decoiler motor power (Kw) 2.2
Decoiler hydraulic station motor power (Kw) 3
Hydraulic station power (Kw) 7.5
Total power (Kw) 16.7
Power AC380V, 50HZ, 3P
Control system PLC - Touch screen and button
External dimensions (L×W×H, m) 15 × 3× 2

Plc Control 50hz Ridge Cap Sheet Metal Roll Former Machine With High SpeedPlc Control 50hz Ridge Cap Sheet Metal Roll Former Machine With High SpeedPlc Control 50hz Ridge Cap Sheet Metal Roll Former Machine With High Speed



FAQ


Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

Q: Once we've bought a machine from you, are you able to supply us with material?

A: We can assist you in finding the appropriate materials to suit your machine

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components

Q: What size decoiler can you supply us with?

A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler

Q: Do you have a warranty on your machines?

A: One year warranty excluding electrical components.

Q: What sales terms do you have?

A: Terms mutually agreed on and we do accept Letter of Credit by pre arrangement.

Q: Do you have instruction manuals?

A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings

Q: Once a machine arrives at our factory what happens then?

A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.

Q: What do I need to offload my machine from the container?

A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.

Q: My current machine rollers need to be replaced. Would you be able to assist me?

A: Yes. Send us your profile and specifications then we will manufacture the rollers for you

Q: What kind of controls do you use on your machines?

A: AMS, Delta, Schneider, Siemens, and Mitsubishi

Q: What is your delivery time?

A: Depending on the type of machine, duration of 25 days to 185 days from date of order.

Q: Do we receive any updates while machine is in the manufacturing process?

A: Yes.Regular updates on progress will be sent to you.
