منزل المنتجاتج برلين دحر آلة تشكيل

High Speed Metal C Purlin Roll Forming Machine for Building Steel Structure

شهادة
نوعية جيدة تسقيف صفح لف يشكّل آلة للمبيعات
نوعية جيدة تسقيف صفح لف يشكّل آلة للمبيعات
آلة سهلة الاستخدام. رئيسه هو لطيف جدا.

—— السيد أنجولون من أوروبا

هذه الشركة مصنعة جيدة ، ومتحدث جيد باللغة الإنجليزية ، وأنا أحب أجهزتك. انها ذات نوعية جيدة ، وجميلة!

—— Mr.Mark من افريقيا

مورد لطيف! أنا أحب التسليم السريع ودورة الإنتاج السريعة ، وسوف نبقى على اتصال مع اللاعبين.

—— السيد جاك من أمريكا

ابن دردش الآن

High Speed Metal C Purlin Roll Forming Machine for Building Steel Structure

الصين High Speed Metal C Purlin Roll Forming Machine for Building Steel Structure المزود

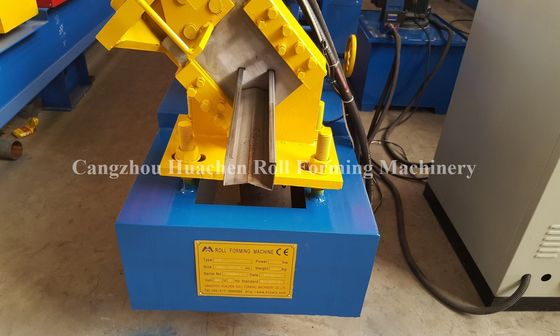

صورة كبيرة :  High Speed Metal C Purlin Roll Forming Machine for Building Steel Structure

تفاصيل المنتج:

Place of Origin: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
Model Number: HC80-300

شروط الدفع والشحن:

Minimum Order Quantity: 1set
الأسعار: 15000-49000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
مفصلة وصف المنتج
Suitable material: Galvainzed steel Usage: Roof purlin
Capacity: 8-10m/min Punching: Yes
Thickness: 3mm Worker: 1 only
Power: 11+7.5KW Warranty: Whole life



High Speed Metal C Purlin Roll Forming Machine for Building Steel Structure



Building Steel Structure Metal C Purlin Roll Forming Machine With High Speed is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.



Technical Parameters

No Item Parameter Remark
1

Suitable



Material

Type Galvanized steel
Width(mm)   According to customer's requirement
Thickness(mm) 1.2-2.4 According to customer's requirement
Yield Strength(Mpa) 550 According to customer's requirement
2 Forming Speed(m/min) 20 Not including cutting time
3 Material of Punching Die bearing steel with quench treatment
4 Cutting Model hydraulic cutting According to customer's requirement
5 Power source Type 440V/3PH/60HZ According to customer's requirement





Machine Components

No Name Quantity Remarks
1 Decoiler 1set Up to customer
2 Main machine Pre-cutting device 1set Up to customer
Feeding device 1set
Roll forming system 1set
Post cutting device 1set
Hydraulic system 1set
3 Electric control system 1set
4 Supporter/Automatic Stacker 1set

Up to customer







Profile Drawing







Galvanised / Carbon Steel C Purlin Roll Forming Machine for Steel C Shaped Purlin

Galvanised / Carbon Steel C Purlin Roll Forming Machine for Steel C Shaped Purlin









Working Flow






Decoiler --- Fedding & Leveling --- Roll Forming --- Punching --- Cut-to-length --- Run out table









Main Components





  • Decoiler ---------------------------------------------- 1 Unit
  • Feeding & Leveling -------------------------------- 1 Unit
  • Main roll forming machine ------------------------ 1 Unit
  • Hydraulic punching device ----------------------- 1 Unit
  • Hydraulic cutting device -------------------------- 1 Unit
  • Hydraulic Station ----------------------------------- 1 Unit
  • PLC computer control ----------------------------- 1 Unit
  • Output table ----------------------------------------- 1 Unit









Application





C purlin, c shaped purlin, c channel, lip channel, c section, c profile, c shape, steel c purlin, c purlin steel structure







Our Advantage





  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

High Speed Metal C Purlin Roll Forming Machine for Building Steel StructureHigh Speed Metal C Purlin Roll Forming Machine for Building Steel Structure
