تفاصيل المنتج:
|
| Material: | PPGi GI | capacity: | 20m/min |
|---|---|---|---|
| machine weight: | 4.5T | rollers: | 45# steel |
| Type: | 0.15mm-0.4mm Galvanized Steel Automatic Roof Roll Forming Machine / Roof Sheet Roll Forming Machine | cutting blade: | Cr12 |
| تسليط الضوء: | roof tile roll forming machine,cold roll forming machine,cold roll forming machine |
||

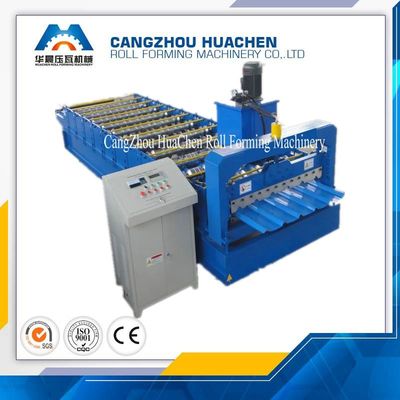

Double layer Full Automatic Roof Sheet Roll Forming Machine
1.Suitable to process: Color steel plate
2.Width of the plate: 1000mm
3.Rollers: 9/11 rows
4.Dimensions: 7*1.5*1.5m
5.Power: 4+4kw
6.Rolling material: high grade 45# steel(plated chrome on surface)
7.Thickness of the plate:0.3-0.6mm
8.Voltage: 380V 50Hz 3phases
9.Material of the cutting plate: Cr12
10.Hydraulic: 40#
11.Processing precision: Within 1.00mm
12.Control system: PLC control
The tiles produced by this machine are widely used in all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency and reliable working.
Machine working flow:
Manual decoiler→Feeding material into machine→Roll forming machine--Glazed Tile Pressing System→Measure length→Hydraulic cutting→Finished Products
