Hydraulic Cr12 Steel Shutter Door Roll Forming Machinery for Garage Door

Hydraulic Cr12 Steel Shutter Door Roll Forming Machinery for Garage Door
Hydraulic Cr12 Steel Shutter Door Roll Forming Machinery for Garage Door Hydraulic Cr12 Steel Shutter Door Roll Forming Machinery for Garage Door Hydraulic Cr12 Steel Shutter Door Roll Forming Machinery for Garage Door Hydraulic Cr12 Steel Shutter Door Roll Forming Machinery for Garage Door

صورة كبيرة :  Hydraulic Cr12 Steel Shutter Door Roll Forming Machinery for Garage Door

تفاصيل المنتج:
مكان المنشأ: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
رقم الموديل: HC90
شروط الدفع والشحن:
الحد الأدنى لكمية: 1set
الأسعار: 5000-19000USD
تفاصيل التغليف: Main machine is nude,the computer control box is packed by carton box
وقت التسليم: 30days
شروط الدفع: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
القدرة على العرض: 20 sets/month

Hydraulic Cr12 Steel Shutter Door Roll Forming Machinery for Garage Door

وصف
تسليط الضوء:

roll forming machinery,door frame roll forming machine

,

door frame roll forming machine

Hydraulic Cr12 Steel Shutter Door Roll Forming Machinery for Garage Door



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 165mm

3. Rollers: 12rows

4. Dimensions: 3.5*1.15*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3 phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Rolling Shutter Door Roll Forming Machine Main parameter

No.

   Main parameter of Rolling Shutter Door Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

165mm

3

Rollers

12 rows

4

Dimensions

3500*1150*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.6mm

7

Productivity

15m/min

8

Diameter of the roller

Φ36 mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

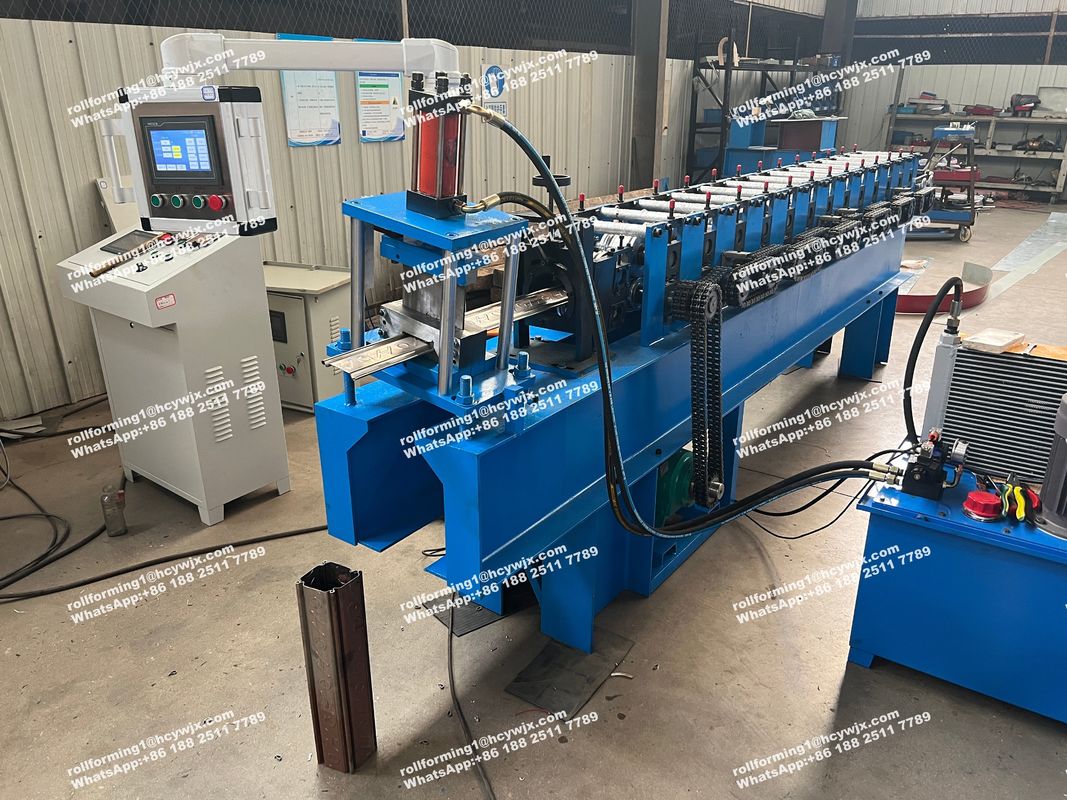

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting





Application



This type of sheet can be widely used as the door of garage, storage and supermarket.





Competitive Advantage

1. noiseless running

2. good quality

3. high grade steel

4. maintenance-free

5. easy to use
