Double Layer Colour coated Steel Roof Panel Wall Panel Roll Forming Machine PLC Control Automatic

Double Layer Colour coated Steel Roof Panel Wall Panel Roll Forming Machine PLC Control Automatic
Double Layer Colour coated Steel Roof Panel Wall Panel Roll Forming Machine PLC Control Automatic Double Layer Colour coated Steel Roof Panel Wall Panel Roll Forming Machine PLC Control Automatic Double Layer Colour coated Steel Roof Panel Wall Panel Roll Forming Machine PLC Control Automatic Double Layer Colour coated Steel Roof Panel Wall Panel Roll Forming Machine PLC Control Automatic Double Layer Colour coated Steel Roof Panel Wall Panel Roll Forming Machine PLC Control Automatic

صورة كبيرة :  Double Layer Colour coated Steel Roof Panel Wall Panel Roll Forming Machine PLC Control Automatic

تفاصيل المنتج:
مكان المنشأ: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
رقم الموديل: HC25/18
شروط الدفع والشحن:
الحد الأدنى لكمية: 1set
الأسعار: 15000-49000USD
تفاصيل التغليف: Main machine is nude,the computer control box is packed by carton box
وقت التسليم: 30days
شروط الدفع: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
القدرة على العرض: 20 sets/month

Double Layer Colour coated Steel Roof Panel Wall Panel Roll Forming Machine PLC Control Automatic

وصف
Steel Thickness: 0.3-0.6mm Forming Speed: 8-10m/min
Roller Stations: customized Roller Material: 45# steel
Power Supply: 380V, 50Hz, 3Phase
تسليط الضوء:

metal roll forming machine,sheet metal roll forming machines

,

sheet metal roll forming machines

Double Layer Colour coated Steel Roof Panel Wall Panel Roll Forming Machine

Double Layer Colour coated Steel Roof Panel Wall Panel Roll Forming Machine PLC Control Automatic 0Double Layer Colour coated Steel Roof Panel Wall Panel Roll Forming Machine PLC Control Automatic 1



Double Layer Colour coated Steel Roof Panel Wall Panel Roll Forming Machine



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1250mm

3. Rollers: 12/12 rows

4. Dimensions: 8.1*1.55*1.91m

5. Power: 4+4kw

6. Rolling material: high grade 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Double layer glazed tile roll forming machine Main parameter

No.

 Main parameter of Double layer glazed tile roll forming machine

1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

upper level :12rows

Down level :12 rows

4

Dimensions

8100*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

upper level :4m/min

Down level:20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

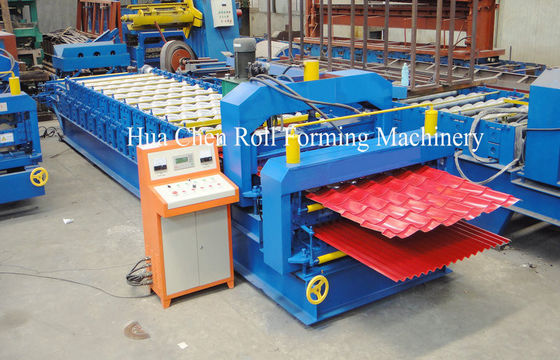

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- press form-cutting





Application

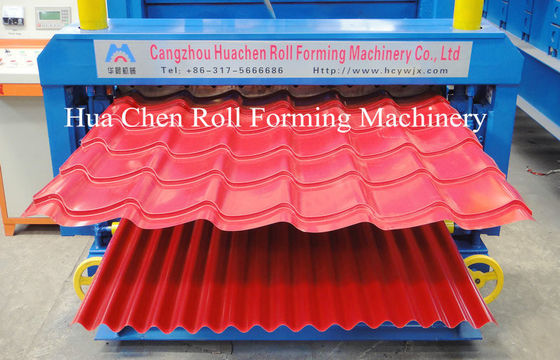

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site





With our in-depth knowledge and experience, we are engaged in manufacturing, exporting and supplying an excellent quality Plate Body Roll Forming Machine to our honorable clients. Our offered machine is manufactured under the stern surveillance of our ingenious professionals using optimum quality components and modular technology in adherence with set international norms. Mainly used for plate forming applications, clients can purchase this Plate Body Roll Forming Machine from us at pocket friendly prices.

Features:

Impeccable performance

Robust construction

Maintenance free

Long functional life
