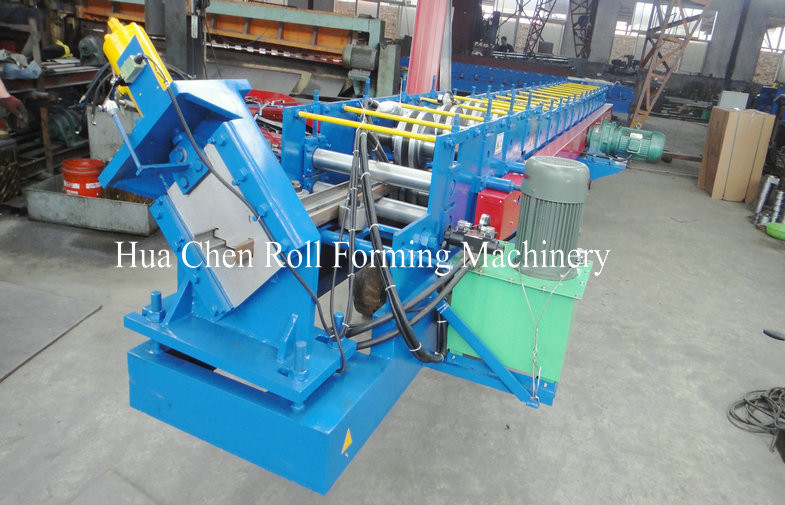

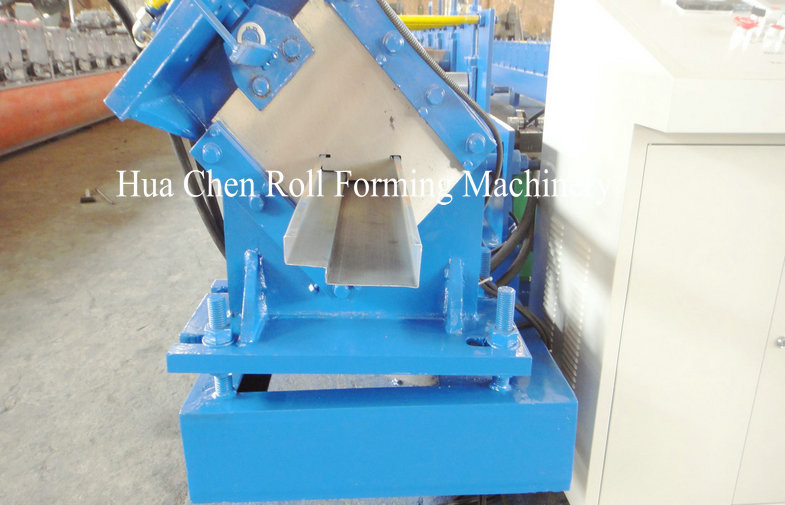

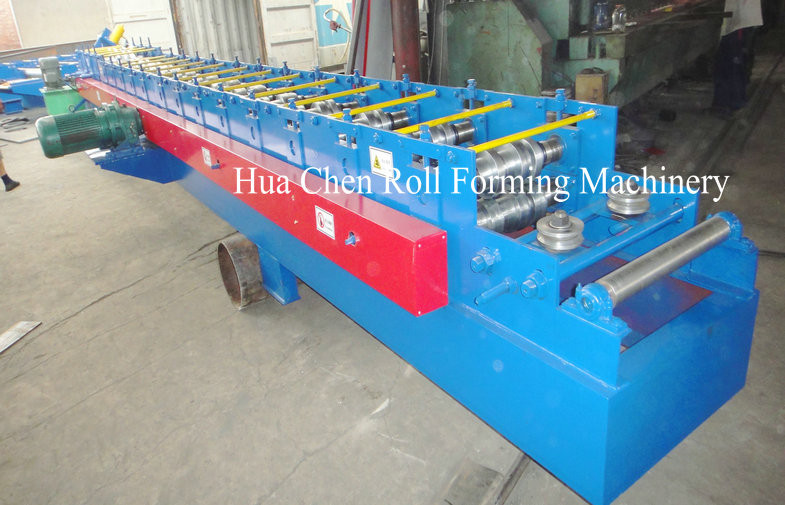

Shaft Bearing Steel Door Frame Roll Forming Machine

Shaft Bearing Steel Door Frame Roll Forming Machine
Shaft Bearing Steel Door Frame Roll Forming Machine Shaft Bearing Steel Door Frame Roll Forming Machine Shaft Bearing Steel Door Frame Roll Forming Machine Shaft Bearing Steel Door Frame Roll Forming Machine

صورة كبيرة :  Shaft Bearing Steel Door Frame Roll Forming Machine

تفاصيل المنتج:
Place of Origin: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
Model Number: HC146/196
شروط الدفع والشحن:
Minimum Order Quantity: 1set
الأسعار: 12000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Shaft Bearing Steel Door Frame Roll Forming Machine

وصف
تسليط الضوء:

,دحر تشكيل إليه

,

Roll Forming Machinery

Door Frame Roll Forming Machine



Description:



Door Frame Roll Forming Machine Main parameter

No.

   Main parameter of Door Frame Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

260/310mm

3

Rollers

17 rows

4

Dimensions

8200*1350*1510mm

5

Power

5.5+4kw

6

Rolling material

shaft bearing steel(quenching)

6

Thickness of the plate

0.6-1mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ80mm

9

Voltage

380V 50Hz 3 phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control





Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system- cutting





Application

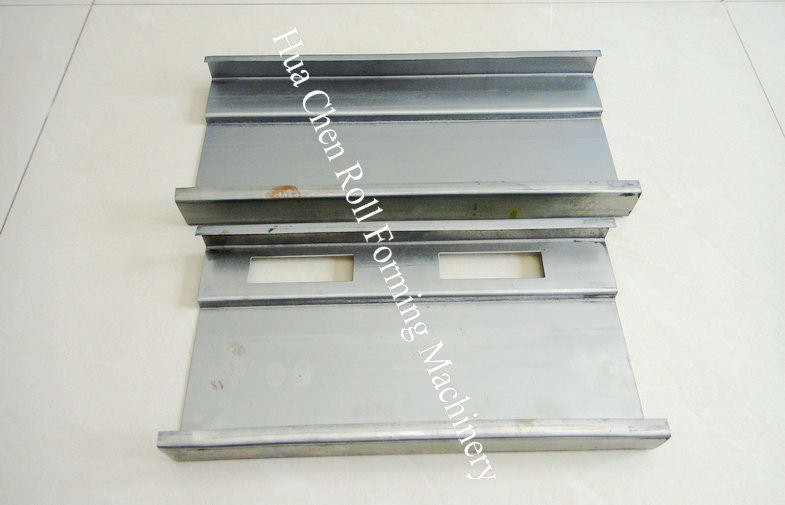

It can be used in the gate,inside door,window frame;nice appearance, durable





Competitive Advantage





1.CE and ISO certification

2. use for roofing and wall

3. high strength, anti-corrosion

4. One year free warranty

5. provide lifelong technique service
