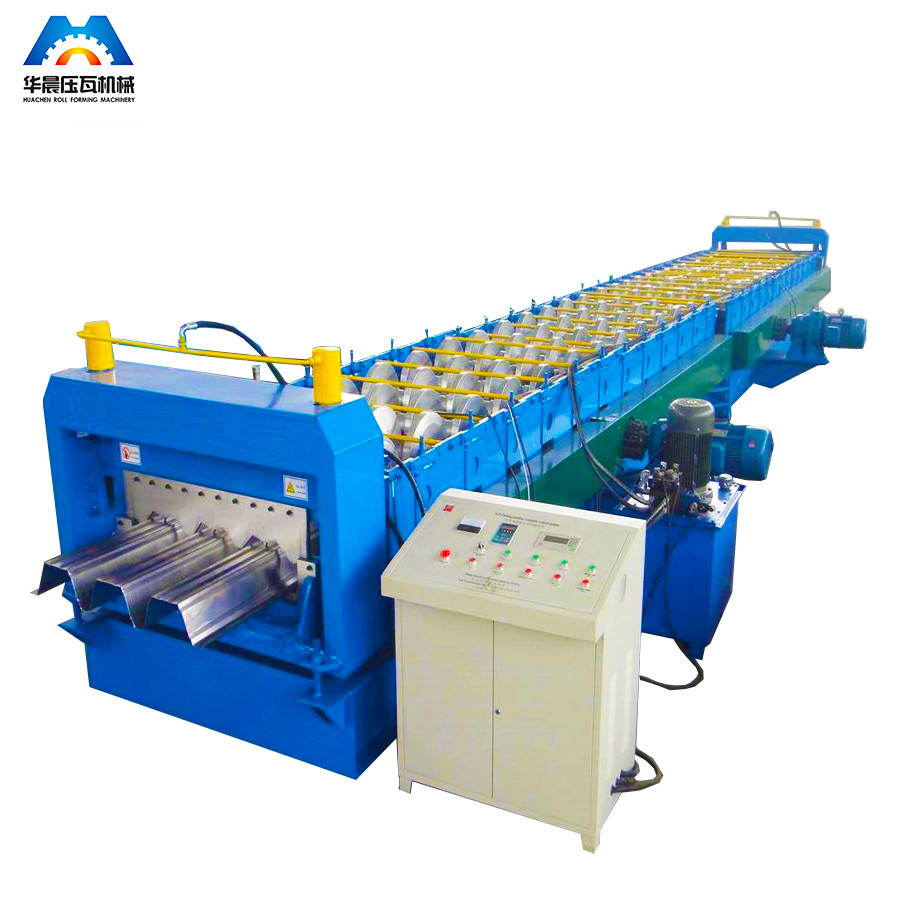

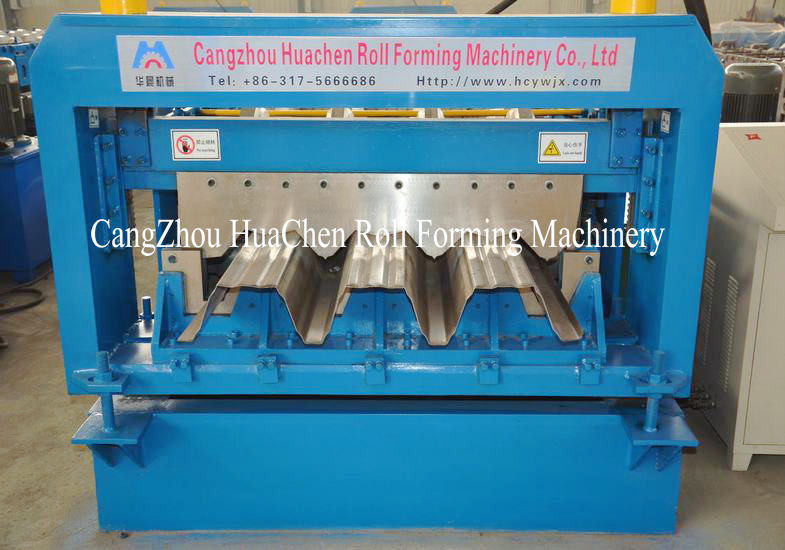

Steel Floor Decking Sheet Roll Forming Machine
Floor Deck Roll Forming Machine
Description:
Steel Floor Decking Sheet Roll Forming Machine Main parameter
|
No. |
Main parameter of Steel Floor Decking Sheet Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1500mm |
|
3 |

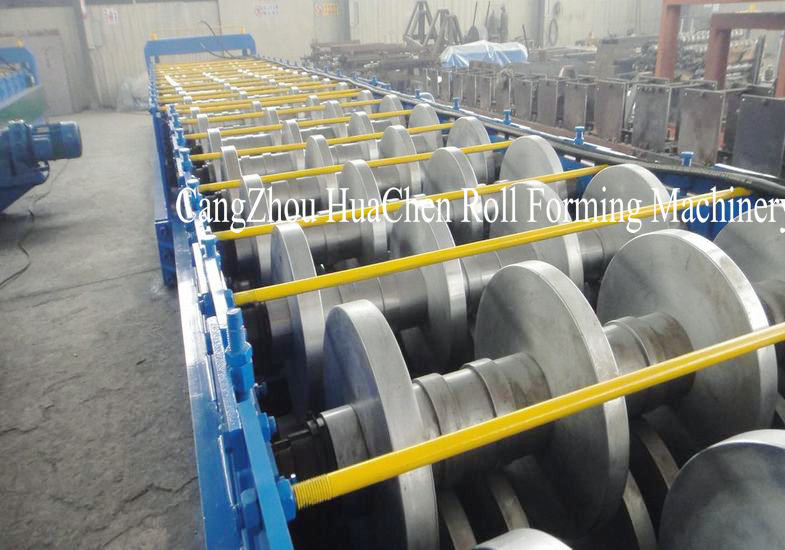

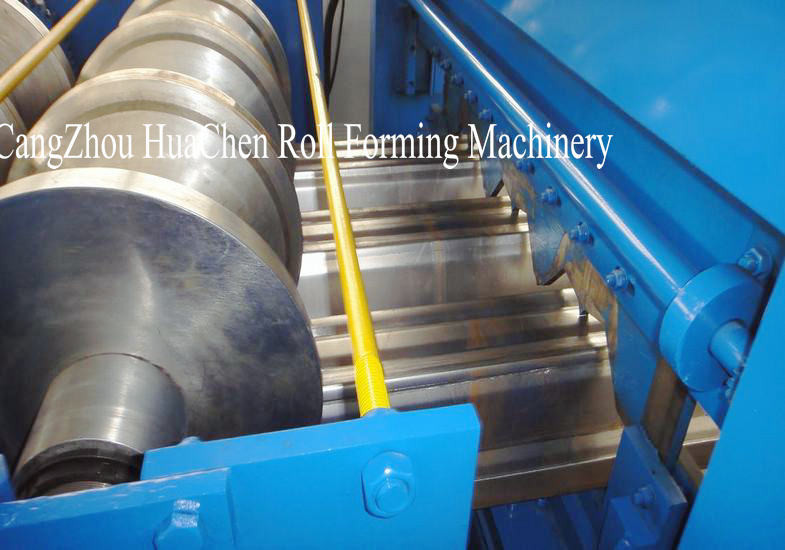

Rollers |
28 rows |
|
4 |
Dimensions |
12700*1.85*1.61m |
|
5 |
Power |
33+11.5kw |
|
6 |
Rolling material |
shaft bearing steel(quenching) |
|
6 |
Thickness of the plate |
1.5mm |
|
7 |
Productivity |
15m/min |
|
8 |
Diameter of the roller |
Φ100mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting
Application

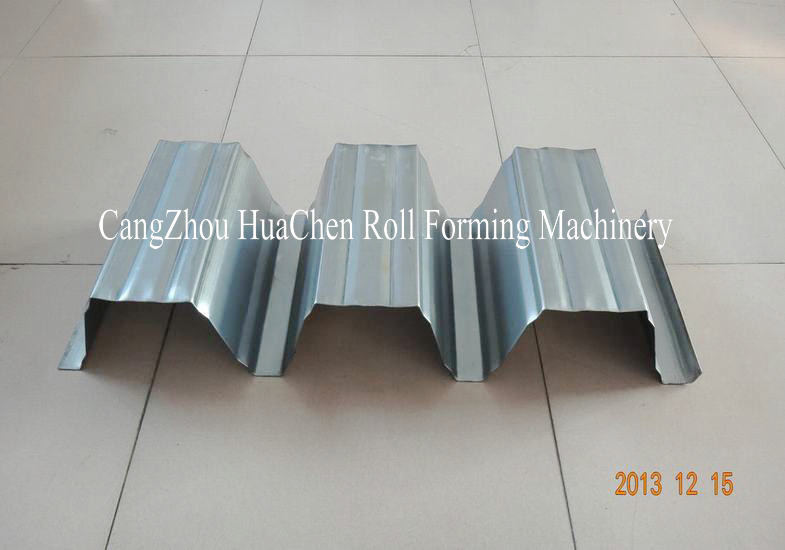

This type of sheet can be widely used in plant, house, storage and simple steel roof. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. CE certification
2 .ISO certification
3. working life 20 years
4. high quality steel
5. High efficiency
