تفاصيل المنتج:
|
| تسليط الضوء: | لوحة الجدار دحر آلة تشكيل,السطح المعدني دحر آلة تشكيل,metal deck roll forming machine |
||
|---|---|---|---|

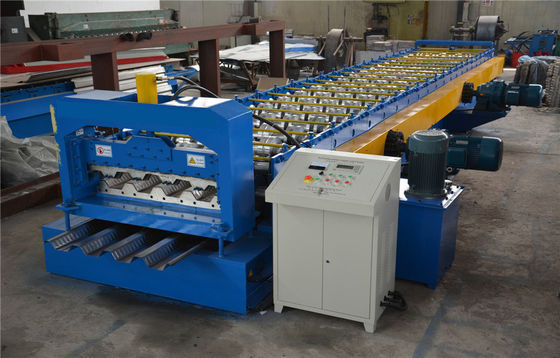

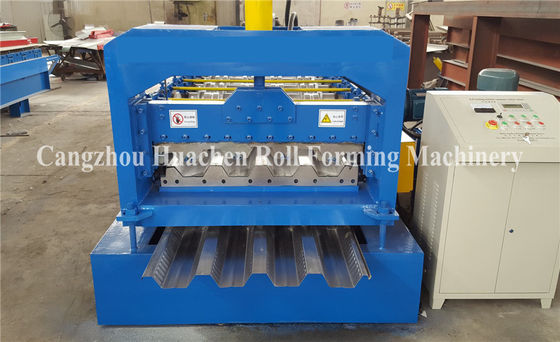

0.8-1.5mm Steel Deck Roll Forming Machine For Floor Decking Sheets
Description: 0.8-1.5mm Steel Deck Roll Forming Machine For Floor Decking Sheets
Main parameter
|
No. |
Main parameter of Floor Deck Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1500mm |
|
3 |

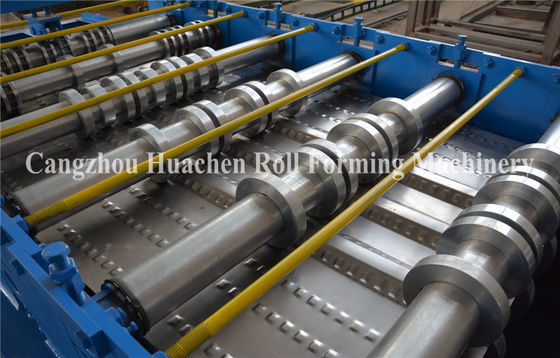

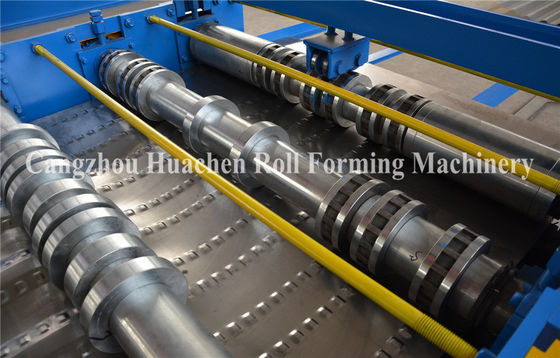

Rollers |
28 rows |
|
4 |
Dimensions |
12700*1.85*1.61m |
|
5 |
Power |
33+11.5kw |
|
6 |
Rolling material |
shaft bearing steel(quenching) |
|
6 |
Thickness of the plate |
1.5mm |
|
7 |
Productivity |
15m/min |
|
8 |
Diameter of the roller |
Φ100mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting
Application:Galvanzied Metal Steel Floor Deck Roll Forming Machine Produce 1.5mm Thickness Deck
This type of sheet can be widely used in plant, house, storage and simple steel roof. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. operations safety
2. nice appearance, high quality
3. reasonable price
4. CE certification
5. ISO certification
