Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station

زبون مراجعة
آلة سهلة الاستخدام. رئيسه هو لطيف جدا.

—— السيد أنجولون من أوروبا

هذه الشركة مصنعة جيدة ، ومتحدث جيد باللغة الإنجليزية ، وأنا أحب أجهزتك. انها ذات نوعية جيدة ، وجميلة!

—— Mr.Mark من افريقيا

مورد لطيف! أنا أحب التسليم السريع ودورة الإنتاج السريعة ، وسوف نبقى على اتصال مع اللاعبين.

—— السيد جاك من أمريكا

ابن دردش الآن

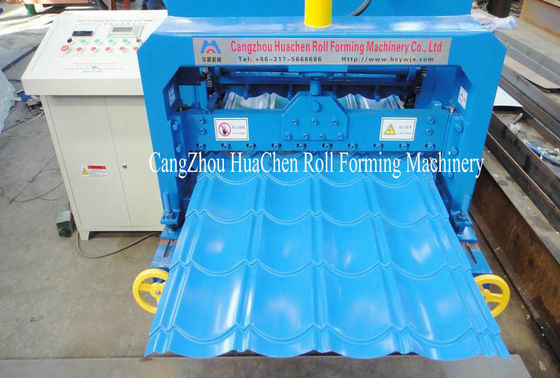

Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station

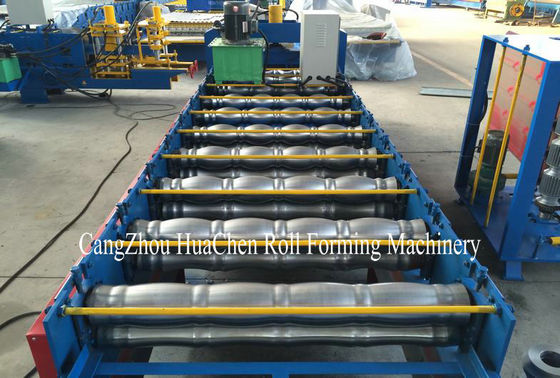

Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station

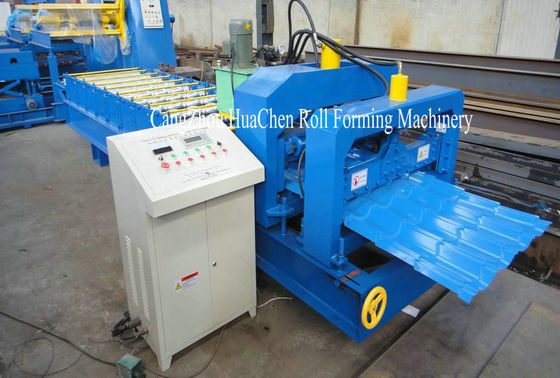

Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station
Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station

صورة كبيرة :  Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station

تفاصيل المنتج:
مكان المنشأ: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
رقم الموديل: HC26
شروط الدفع والشحن:
الحد الأدنى لكمية: 1set
تفاصيل التغليف: Main machine is nude,the computer control box is packed by carton box
وقت التسليم: 30days
شروط الدفع: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
القدرة على العرض: 20 sets/month

Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station

وصف
تسليط الضوء:

roll forming equipment,cold roll forming machine

,

cold roll forming machine

Double Press Glazed Step Tile Roll Forming Machine

1. Working Flow:

3 Phases Hydraulic Arc Sheet Metal Roll Forming Machines Color Steel Roll Form Equipment

double tile pressing roof machine.jpg

Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Pressing Form - Cutting

2 Application

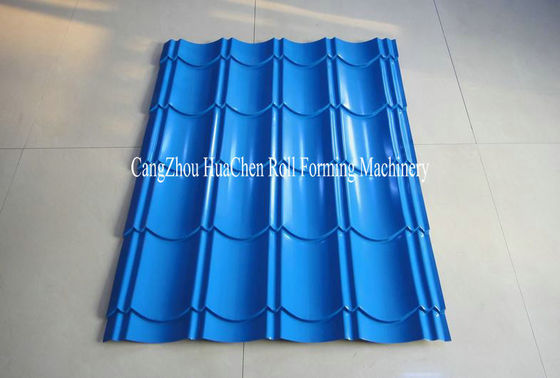

This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station 1

3 Parameters: 3 Phases Hydraulic Arc Sheet Metal Roll Forming Machines Color Steel Roll Form Equipment

No.

   Main parameter of Glazed Tile Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1000mm

3

Rollers

12 rows

4

Dimensions

7100*1450*1510mm

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

0-2m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

3 Phases Hydraulic Arc Sheet Metal Roll Forming Machines Color Steel Roll Form Equipment

Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station 2

Rolling Material: high grade 45# steel(plated chrome on surface)
Equipment Components: Man-Made Uncoiler-Roll Forming Machine-Computer Control System-
Hydraulic Control System-Press Form-Cutting

3 Phases Hydraulic Arc Sheet Metal Roll Forming Machines Color Steel Roll Form Equipment

Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station 3

We have a professional design team
Can also design and manufacture according to customer's requirement.

Competitive Advantage

1.elegant appearance

2.high quality steel structure

3.One year free guarantee

4.lifelong maintain

5.Panasonic PLC
