تفاصيل المنتج:
|
| Material: | galvanized steel | Size: | 5'' |
|---|---|---|---|
| Usage: | Roof gutter | Power: | 4+4KW |
| Capacity: | 10m/min | Warranty: | 1 year |
| تسليط الضوء: | sheet metal rolling machine,metal roll forming machines,metal roll forming machines |
||

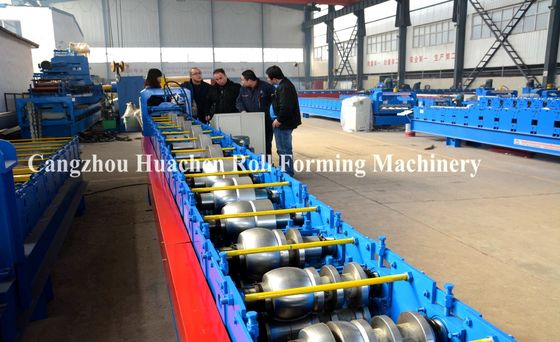

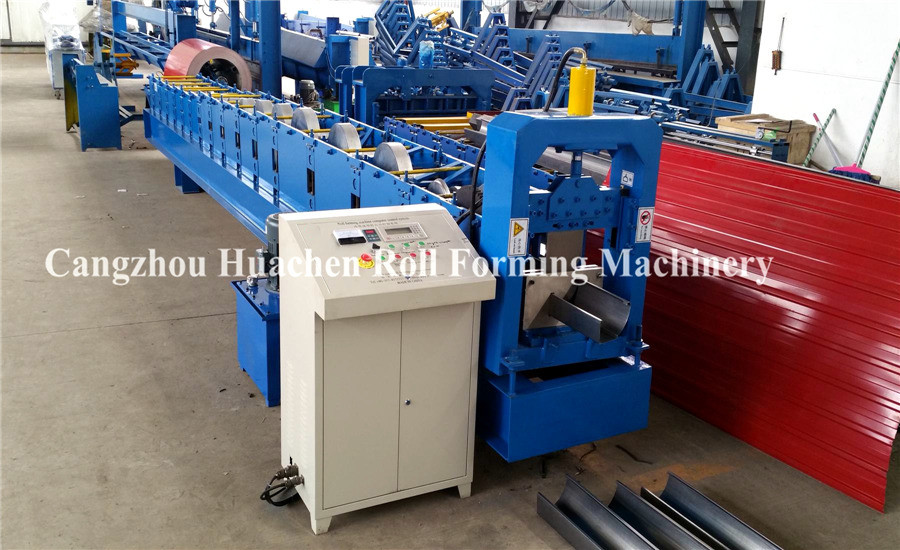

High Speed Downspout Gutter Roll Forming Machine
1. Working Flow: Popular 5' Steel Rain Gutter Roll Forming Machine with Best Price
Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Cutting
Quick Detail: High Speed Downspout Gutter Roll Forming Machine
1. Suitable to process: Color steel plate
2. Width of the plate: 330mm
3. Rollers: 19 rows
4. Dimensions: 9.1*1.35*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description: High Speed Downspout Gutter Roll Forming Machine
Main parameter
|
No. |
Main parameter of High Speed Downspout Gutter Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
330 mm |
|
3 |
Rollers |
19 rows |
|
4 |
Dimensions |
9100*1350*1519mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
15m/min |
|
8 |
Diameter of the roller |
Φ66 mm |
|
9 |
Voltage |
380V 50Hz 3pha ses |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. use for villa roofing sculpt
2. beautiful, durable
3. customer customization
4. CE certification
5. professional manufacturer
