Metal Roof Panel Roofing Sheet Forming Machine With 22 Forming Stations

Metal Roof Panel Roofing Sheet Forming Machine With 22 Forming Stations
Metal Roof Panel Roofing Sheet Forming Machine With 22 Forming Stations

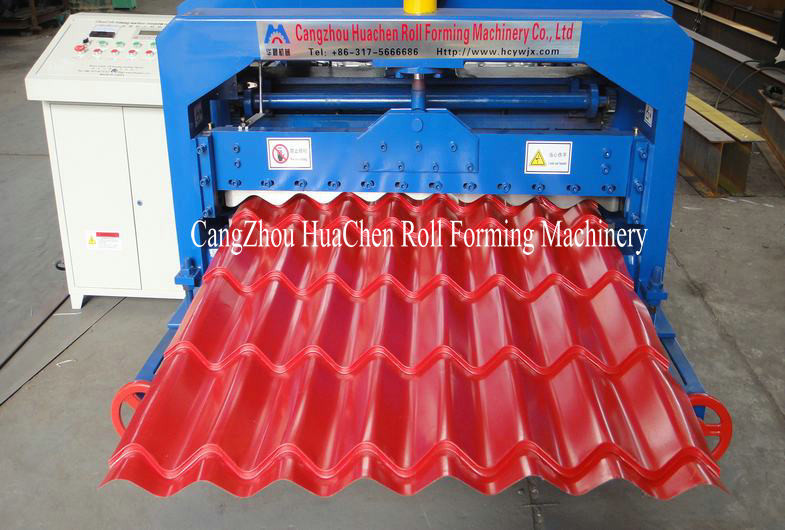

صورة كبيرة :  Metal Roof Panel Roofing Sheet Forming Machine With 22 Forming Stations

تفاصيل المنتج:
Place of Origin: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
Model Number: HC30
شروط الدفع والشحن:
Minimum Order Quantity: 1set
الأسعار: 12000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Metal Roof Panel Roofing Sheet Forming Machine With 22 Forming Stations

وصف
Type: Glazed Tile Roll Forming Machine thickness: 0.3-0.6mm
width: 1250mm warranty: 1 year
تسليط الضوء:

roll forming equipment,roof tile roll forming machine

,

roof tile roll forming machine


Glazed Tile Roll Forming Machine Application



Techniacl Specifiactions of  Glazed tile roll forming machine


Item Glazed Tile Roll Forming Machine
Coil Specifications Thickness 0.3 - 0.8mm
Coil width Depend on Profiles
Yield Strength 250-350 Mpa
Material GI. Aluminium,PPGI, SS
Decoiler / Uncoiler Decoiler Type Manual or Hydraulic or Auto Type
Coil Width Max. 1250mm
I.D 508-610mm
O.D Max. 1500mm
Standing Seam Roll Forming Machine Forming Stations 15 Stations ( Depend on Profiles )
Roller material 45# steel, surface coated with 0.05mm hard chrome
Diameter of shaft 75mm
Shaft material High grade 45# steel
Drive type Chain transmission
Forming speed 8 - 15m/min
Main power 5.5KW
Cutting System Cutting type Hydraulic cutting
Cutting Die Material Cr12Mov steel, HRC58-62
Cutting power 3KW
CuttingTolerance 10m+/-1.5mm
Encoder OMRON Brand
Electrical Control Box System PLC PANASONIC Brand
Inverter YASKAWA Brand
Touch screen MCGS ,7Inches
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Support Tables Table type Simple nonpower type
Function To support the finished panels







Main Components of IBR Roof Sheeting Roll Forming Machine



De-coiler / Un-coiler 1 Unit
Feeding Guide 1 Unit
Standing Seam Roof Roll Forming Machine 1 Unit
Hydraulic Cutting Device 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Board 1 Unit
Runout Tables 2 Units





Applications



Roof panel are high strength and durableare with smooth beautiful appearance,uniform lacquer weins,so widely used in building: the steel-structured large-scale warehouses, plants, supermarkets,shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers' requests.So they are popular with customers at home and aborad,especially in the Middle East,African countries,Russis,the annual demand has a rising trend.





Advantages



1. We can offer High Quality Machines

2. Reasonable Price Compares other machineries

3. Good after Service/Lifetime Service

4. 1 Year Warranty

5. With 15 years professional manufactural experience

6. Customers can design logo,size,color and so on

7. Technican overseas installing and training.

Metal Roof Panel Roofing Sheet Forming Machine With 22 Forming Stations 0Metal Roof Panel Roofing Sheet Forming Machine With 22 Forming Stations 1Metal Roof Panel Roofing Sheet Forming Machine With 22 Forming Stations 2
