Roll Forming Machinery

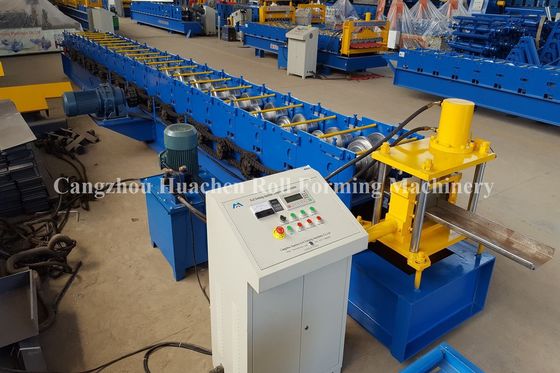

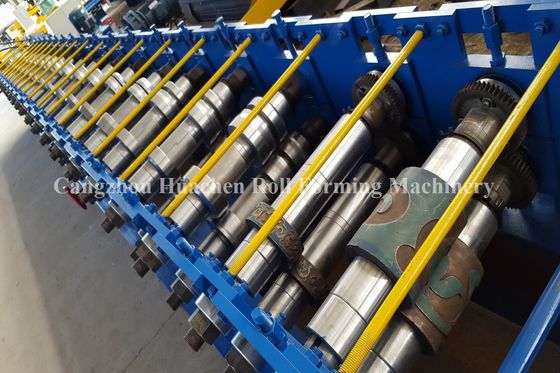

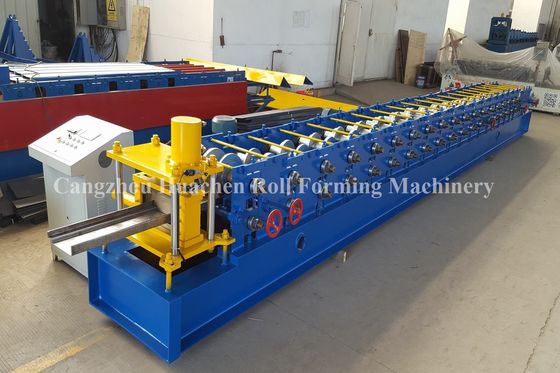

Door roll forming machine: material for producing roofing:
Normal colored painted and galvanized sheets with yield strength 245, 345MP
a. Main Accessories:
(1) Main Forming Machine;
(2) 3 Tons Manual Uncoiler;;
(3) Hydraulic System;
(4) PLC Computer Controlling System with Touch Screen
(Brand: Delta for PLC, touchingscreen,encorder and frequency changer);
(5) Hydraulic Forming Cutter;
(6) Run Out Tables(3 Units);
(7) Operation Manual.
b.Main Technical Data
|Hydraulic Motor Power||4KW|
|Forming Steps||14 steps|
|Material of principal axis||high grade 45# forged steel|
|Material of roller||GCr15 with hard chrome plating|
|Material of blade||Cr12 mould steel with quenched treatment 60-62°C|
|Material for frame of machine||Fine welded structural steel|
|Sprocket wheel||45 steel high-frequencies quench|
Material for producing roofing: normal colored painted and galvanized sheets with strength 245, 345MPA;
Warranty: 1 year and life-long maintain;
Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 50 USD/day, and provide accommodation, food and the round-trip ticket fee.
Installation Days: about 5-7 days
Installation and Training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine,
and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
