Portable Gutter Roll Forming Machine , 3 Phase Metal Roofing Roll Forming Machine

زبون مراجعة
آلة سهلة الاستخدام. رئيسه هو لطيف جدا.

—— السيد أنجولون من أوروبا

هذه الشركة مصنعة جيدة ، ومتحدث جيد باللغة الإنجليزية ، وأنا أحب أجهزتك. انها ذات نوعية جيدة ، وجميلة!

—— Mr.Mark من افريقيا

مورد لطيف! أنا أحب التسليم السريع ودورة الإنتاج السريعة ، وسوف نبقى على اتصال مع اللاعبين.

—— السيد جاك من أمريكا

ابن دردش الآن

Portable Gutter Roll Forming Machine , 3 Phase Metal Roofing Roll Forming Machine

Portable Gutter Roll Forming Machine , 3 Phase Metal Roofing Roll Forming Machine
Portable Gutter Roll Forming Machine , 3 Phase Metal Roofing Roll Forming Machine
Portable Gutter Roll Forming Machine , 3 Phase Metal Roofing Roll Forming Machine Portable Gutter Roll Forming Machine , 3 Phase Metal Roofing Roll Forming Machine

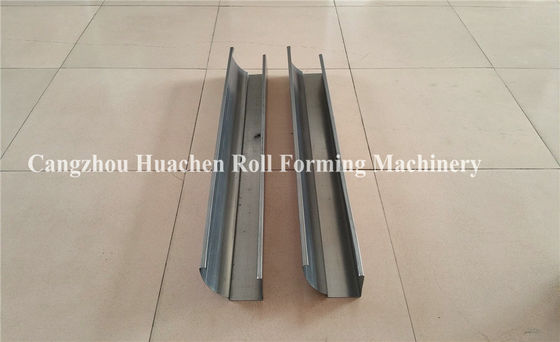

صورة كبيرة :  Portable Gutter Roll Forming Machine , 3 Phase Metal Roofing Roll Forming Machine

تفاصيل المنتج:
مكان المنشأ: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
رقم الموديل: HC285
شروط الدفع والشحن:
الحد الأدنى لكمية: 1set
الأسعار: 8000-29000USD
تفاصيل التغليف: Main machine is nude,the computer control box is packed by carton box
وقت التسليم: 30days
شروط الدفع: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
القدرة على العرض: 20 sets/month

Portable Gutter Roll Forming Machine , 3 Phase Metal Roofing Roll Forming Machine

وصف
Voltage: 380V 50HZ 3 Phase Material: galvanized/color steel sheet
Shaft: 75mm, solid
تسليط الضوء:

sheet forming machine,sheet metal rolling machine

,

sheet metal rolling machine

Portable Gutter Roll Forming Machine , 3 Phase Metal Roofing Roll Forming Machine



2016 portable metal roofing roll forming machine/used roll forming machine/cold roll forming machine rain gutter machine

No. new type corrugated sheets roll forming machine
1 Suitable material PPGI/Aluminium sheet/galvanized sheet/various sheet plates
2 Thickness of coil sheet 0.3-0.6mm
3 Coil width 300mm
4 Cover width 125mm
5 Material of main frame H beam seamless welded
6 Diameter of Soild shaft mm, high grade 45# steel
7 Roller

Quenched and tempered treatment,

hard chrome coated.05-0.07mm

8 Thickness of middle plate 16-18mm
9 Forming station 12-15 stations
10 Drive type By chain(1.0 inch) link bearing model 6210
11 Power of main motor 4.0-5.5kw with Cycloidal reducer
12 Power of pump station 4kw
13 Forming speed About 12-16m/min
14 Hydraulic cutting Controlled by PLC
15 PLC DELTA(TAIWAN)/Mitsubishi
16 Material of razor blades Cr 12, quenching 58-62
17 Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy(±1mm, far better than industrial standard ±3mm).

18 Switch CHNT
19 Transducer SAJ



Portable Gutter Roll Forming Machine , 3 Phase Metal Roofing Roll Forming Machine 1Portable Gutter Roll Forming Machine , 3 Phase Metal Roofing Roll Forming Machine 2

Q1. What's your delivery time?
A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.

Q2. Do you have after-sales support?
A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.


Q3. Do you sell only standard machines?
A3:No, most of our machines are built according to customers specifications,using top brand components.

Q4. What will you do if the machine is broken?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.


Q5. Can you be responsible for transport?
A5:Yes,please tell me the destination port or address.we have rich experience in transporting.



Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
