تفاصيل المنتج:
|
| Model Number:: | double layer roll forming machine | Warranty: | 18 month |
|---|---|---|---|
| control system: | PLC control | cutting method: | hydraulic cut |
| working speed: | 8-10m/min | per month: | 30 sets |
| تسليط الضوء: | metal roll forming machine,sheet metal roll forming machines,sheet metal roll forming machines |
||

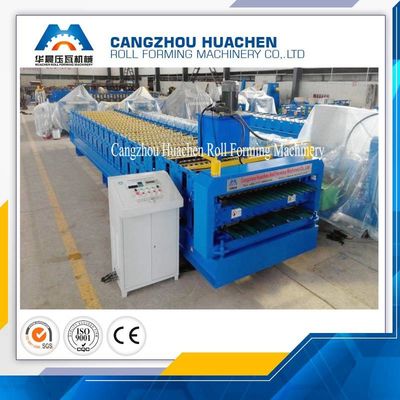

Metal roofing sheet double layer roll forming machine
Color steel tile roll forming machine specification:
1. Number of forming groups: 12/14
2. The machine material: welding comprise of 300 H-steel
3. The wallboard: processing compose of 22mm steel plate
4. The mold: The mold is made of 45#steel, processed after rough turning, finish turning, finish grinding, hard chrome
plating to ensure that the mold no deformation, glabrous, wearable and accurate.
5. The shaft: The shaft is made of 45#steel, diameter of 77mm, finish turning, finish grinding after heat treatment,
quenching and high temperature tempering.
6. The bearing: Harbin type 6209
7. The roll material: 0.3-0.5mm color steel sheet, galvanized steel sheet , It can be customized according to the provided size .
8. Motor:4kw * 2sets (380v)
9. Transmission: 1.0 inch chain
10. Discharge rack: 2 sets
11. Machine feature: PLC NC frequency electrical boxes, touch screen`s display, the encoder counting,
the length and quantity of the material is controllable, accuracy with in 1.0mm, automatic hydraulic cut.
12. Machine Length: 7.5m * 1.5 m * 1.5 m
13. Machine Weight: 5.8tons
14. Production time: 30 days
15. One year warranty
FAQ
1. Do you have overseas engineers?
Yes, we not only provide overseas engineers, but also provide technical training.
2. What`s the machines` production rate?
Between 8-20m/min by control.
3. Do you provide customized?
Sure,we can design the equipment according to the data of the structural section you provide.
We are professional sheet metal forming machine designer and manufacturer.
If you have any questions, please feel free to click the nether edit box to contact us. We'll get back to you immediately.
