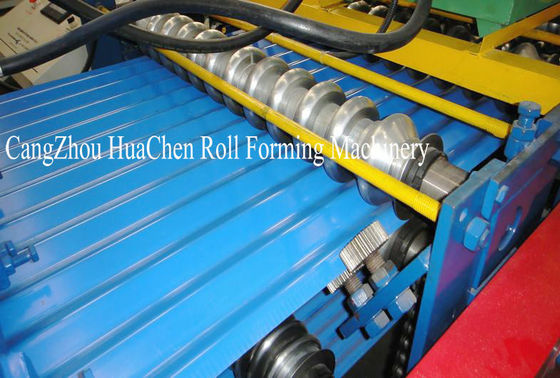

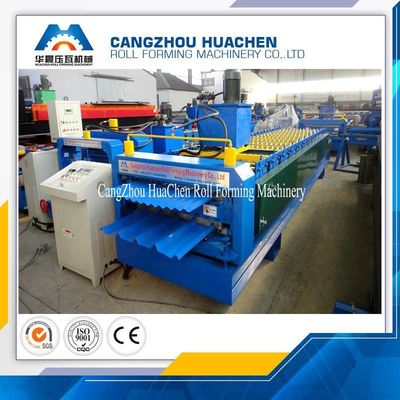

Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty

Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty
Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty
Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty

صورة كبيرة :  Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty

تفاصيل المنتج:
مكان المنشأ: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO/CE
رقم الموديل: HC17-35
شروط الدفع والشحن:
الحد الأدنى لكمية: 1set
الأسعار: 12000-17000USD
تفاصيل التغليف: Main machine is nude,the computer control box is packed by carton box
وقت التسليم: 30days
شروط الدفع: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
القدرة على العرض: 20 sets/month

Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty

وصف
Model Number:: double layer roll forming machine Warranty: 18 month
control system: PLC control cutting method: hydraulic cut
working speed: 8-10m/min per month: 30 sets
تسليط الضوء:

corrugated roll forming machine,metal roll forming machine

,

metal roll forming machine

Double layer cold roll forming machine


Production Flow

Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products





Product Description



decoilerManual type/ Hydraulic type
main roll forming machines

Steps: 14 stations
Roller Material: 45# steel Voltage: 380V/50Hz.
Line speed: 2- 4m/min

computer control cabinetPLC TOUCH OR TEST
hydraulic System 5.5kw
cutting mechanism mould cutting
counterOne counter gauges length, pulses, and decides length
of output table It used to load the forming plate




ModelCover width(mm)Coil width(mm)Wave height(mm)Wave height(mm)
FX840840100035125
FX860860100030280
FX900900100021215
FX910910100015225
aFX10501050120025210
Design Double

One machine can make two type machine make in Double.
Also can design as customers requsdt.

Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty 0Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty 1

After-Sales Service

1. we can produce the special machine,send your drawing to us,we can design for you.


2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.

3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.

The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.

4. engineers available to service machinery overseas.

5. if you come to visit our factory,we can book the room for you, car pick up to send.

Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, speical design is avaliable!

The real data, the most professinal foreign trade team, your best trustable partner.
