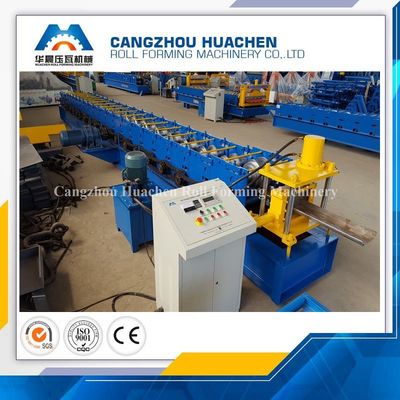

High Performance Door Frame Roll Forming Machine PLC Control With Hydraulic Cutting

High Performance Door Frame Roll Forming Machine PLC Control With Hydraulic Cutting
High Performance Door Frame Roll Forming Machine PLC Control With Hydraulic Cutting

صورة كبيرة :  High Performance Door Frame Roll Forming Machine PLC Control With Hydraulic Cutting

تفاصيل المنتج:
مكان المنشأ: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO/CE
رقم الموديل: HC-220
شروط الدفع والشحن:
الحد الأدنى لكمية: 1set
الأسعار: 12000-29000USD
تفاصيل التغليف: Main machine is nude,the computer control box is packed by carton box
وقت التسليم: 30days
شروط الدفع: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
القدرة على العرض: 20 sets/month

High Performance Door Frame Roll Forming Machine PLC Control With Hydraulic Cutting

وصف
Color: blue type: automatic
control system: PLC control cutting method: hydraulic cutting
per month: 30 sets workers: 100
تسليط الضوء:

معدن دحر المعدات تشكل,

,

steel frame roll forming machine

Product Description

Door frame roll forming machine can make various types metal door or window frames, reinforced, fire stop doors, etc by roll forming method. The steel door frame roll forming machine is a complete production line. After roll forming by our production line, we could make very smooth and beautiful steel door frame without any scratch on surface. This steel door frame production line is composed by the following elements: De-coiler, feed & leveling device, main roll forming machine, cutter, run-out table, etc. Those machines are customized according to the drawing profile.



Main Technical Parameters of Door Frame Roll Forming Machines:



No. Main Parameter of Door Frame Roll Forming Machines
1 Suitable to process Color steel plate/galvanized steel plate/or aluminium steel plate
2 Width of the plate 260/310mm
3 Rollers 13rows
4 Dimensions 7500*1450*1510mm
5 Power 5.5+4kw
6 Thickness of the plate 0.6-1.2mm
7 Productivity 10-15m/min
8 Diameter of the roller Φ70mm
9 Weight About 3.6T
10 Voltage 380V 50Hz 3phases or as your requirement
11 Material of the cutting plate Cr12
12 Hydraulic 40#
13 Processing precision Within 1.00mm
14 Control system PLC control



High Performance Door Frame Roll Forming Machine PLC Control With Hydraulic Cutting 0High Performance Door Frame Roll Forming Machine PLC Control With Hydraulic Cutting 1High Performance Door Frame Roll Forming Machine PLC Control With Hydraulic Cutting 2High Performance Door Frame Roll Forming Machine PLC Control With Hydraulic Cutting 3High Performance Door Frame Roll Forming Machine PLC Control With Hydraulic Cutting 4



Packaging & Shipping

1. Main machine and un-coiler are nude in container. (If need we can also packed with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper coverage
3. All machines need one 20' or 40'container to hold.

4. We can do the packaging according to your need.

Our Services

1: One stop service for customized machine
2: Offer installation & operating training
3: One year warranty of the whole machine
4: Life-long technical support for free

Company Information

1: Why Us?


We are reckoned as one of the leading manufacturers and exporters of roll forming machines and various other machines. Owing to our quality proven range, we have been able to become a preferred choice of our customers over other competitors due to the following reasons:
· Efficient quality control
· Procurement of basic material from authentic vendors
· Pool of experienced and proficient team
· Industrial expertise

2: Application

The roll forming machines can produce various of steel roof and wall panel; it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

3: Our advantages

Professional engineers team and sale team
Quickly reply you inquiry and questions
Competitive price and high quality machine configuration
Near Tianjin Port, delivery fast.
Exported for 17 years.
Design as customers need.
