High Speed Roofing Sheet Roll Forming Machine 380V 50Hz 3 Phases 10m/min

زبون مراجعة
آلة سهلة الاستخدام. رئيسه هو لطيف جدا.

—— السيد أنجولون من أوروبا

هذه الشركة مصنعة جيدة ، ومتحدث جيد باللغة الإنجليزية ، وأنا أحب أجهزتك. انها ذات نوعية جيدة ، وجميلة!

—— Mr.Mark من افريقيا

مورد لطيف! أنا أحب التسليم السريع ودورة الإنتاج السريعة ، وسوف نبقى على اتصال مع اللاعبين.

—— السيد جاك من أمريكا

ابن دردش الآن

High Speed Roofing Sheet Roll Forming Machine 380V 50Hz 3 Phases 10m/min

High Speed Roofing Sheet Roll Forming Machine 380V 50Hz 3 Phases 10m/min
High Speed Roofing Sheet Roll Forming Machine 380V 50Hz 3 Phases 10m/min
High Speed Roofing Sheet Roll Forming Machine 380V 50Hz 3 Phases 10m/min High Speed Roofing Sheet Roll Forming Machine 380V 50Hz 3 Phases 10m/min High Speed Roofing Sheet Roll Forming Machine 380V 50Hz 3 Phases 10m/min High Speed Roofing Sheet Roll Forming Machine 380V 50Hz 3 Phases 10m/min High Speed Roofing Sheet Roll Forming Machine 380V 50Hz 3 Phases 10m/min High Speed Roofing Sheet Roll Forming Machine 380V 50Hz 3 Phases 10m/min High Speed Roofing Sheet Roll Forming Machine 380V 50Hz 3 Phases 10m/min

صورة كبيرة :  High Speed Roofing Sheet Roll Forming Machine 380V 50Hz 3 Phases 10m/min

تفاصيل المنتج:
Place of Origin: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
Model Number: HC25
شروط الدفع والشحن:
Minimum Order Quantity: 1set
الأسعار: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

High Speed Roofing Sheet Roll Forming Machine 380V 50Hz 3 Phases 10m/min

وصف
type: Roofing Sheet Roll Forming Machine capacity: 8-10m/min
thickness: 0.3-0.8mm
تسليط الضوء:

cold roll forming machine,roof panel roll forming machine

,

roof panel roll forming machine

Can't find a reliable supplier for Roofing Sheet Roll Forming Machine? Huachen is your best choise.
Cangzhou huachen roll forming machinery Co., Ltd is the manufacturer specilized in metal roofing roll forming machine. We provide an extensive line of products, which includes roof and wall panel machine , roof tile machine, purline forming machine, floor decking machine,gutter forming machine,roller shutter machine etc.

What's your machine application ?

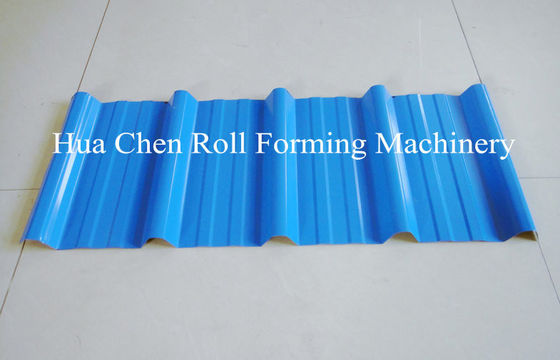

Our roll forming machines can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.



Description:



Roof Sheet Roll Forming Machine  Main parameter

No.

   Main parameter of Roof Sheet Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

914mm

3

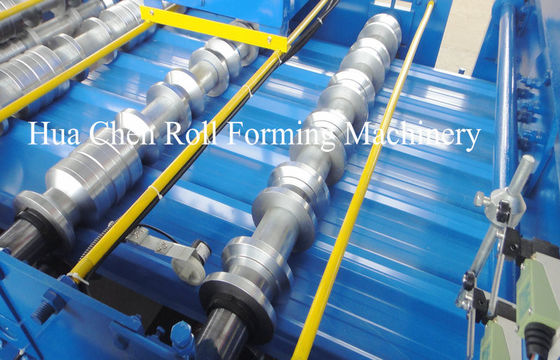

Rollers

19rows

4

Dimensions

9100*1450*1510mm

5

Power

3+3kw

6

Rolling material

45# steel ( plated chrome on surface )

7

Thickness of the plate

0.3-0.6mm

8

Productivity

8-10m/min

9

Diameter of the roller

Φ70mm

10

Voltage

380V 50Hz 3phases

11

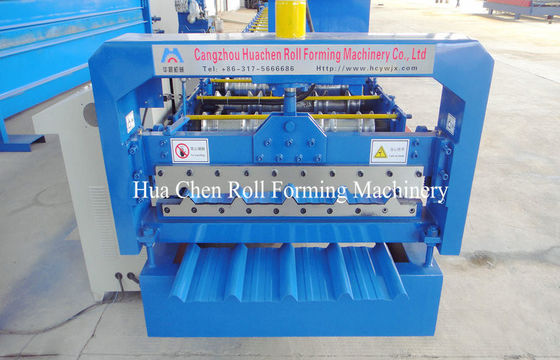

Material of the cutting plate

Cr12

12

Hydraulic

40#

13

Processing precision

Within 1.00mm

14

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

High Speed Roofing Sheet Roll Forming Machine 380V 50Hz 3 Phases 10m/min 0High Speed Roofing Sheet Roll Forming Machine 380V 50Hz 3 Phases 10m/min 1High Speed Roofing Sheet Roll Forming Machine 380V 50Hz 3 Phases 10m/min 2

Competitive Advantage





1. use for villa roofing sculpt

2. beautiful, durable

3. customer customization

4. CE certification

5. professional manufacturer



Why choose Huachen ?
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

2.Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

3.Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

4.Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.

5.Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
