Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade

زبون مراجعة
آلة سهلة الاستخدام. رئيسه هو لطيف جدا.

—— السيد أنجولون من أوروبا

هذه الشركة مصنعة جيدة ، ومتحدث جيد باللغة الإنجليزية ، وأنا أحب أجهزتك. انها ذات نوعية جيدة ، وجميلة!

—— Mr.Mark من افريقيا

مورد لطيف! أنا أحب التسليم السريع ودورة الإنتاج السريعة ، وسوف نبقى على اتصال مع اللاعبين.

—— السيد جاك من أمريكا

ابن دردش الآن

Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade

Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade
Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade
Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade

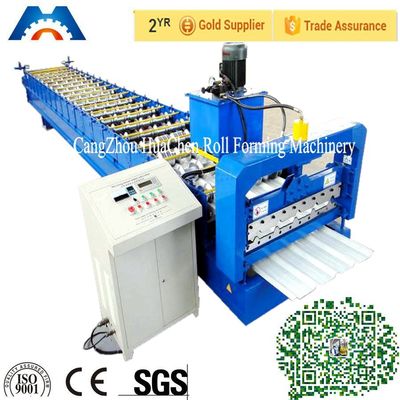

صورة كبيرة :  Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade

تفاصيل المنتج:
مكان المنشأ: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
رقم الموديل: HC25-190-760
شروط الدفع والشحن:
الحد الأدنى لكمية: 1set
الأسعار: 8000-29000USD
تفاصيل التغليف: Main machine is nude,the computer control box is packed by carton box
وقت التسليم: 30days
شروط الدفع: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
القدرة على العرض: 20 sets/month

Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade

وصف
Capacity: 18m/min life time: 30years
warranty: technical for whole life type: roofing sheet roll forming machine
تسليط الضوء:

roof tile roll forming machine,roof panel roll forming machine

,

roof panel roll forming machine

With our in-depth knowledge and experience, we are engaged in manufacturing, exporting and supplying an excellent quality Plate Body Roll Forming Machine to our honorable clients. Our offered machine is manufactured under the stern surveillance of our ingenious professionals using optimum quality components and modular technology in adherence with set international norms. Mainly used for plate forming applications, clients can purchase this Plate Body Roll Forming Machine from us at pocket friendly prices

Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade 0.

Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade



Our firm is engaged in offering a wide array of Steel Roofing sheet roll forming machine that is widely used in construction industry for making the roof tile and wall panel outside of building. The components used for its fabrication are procured from reliable sources of the market to deliver high performance and superior quality at users end. Our offered Steel Roofing sheet roll forming machine is highly appreciated for its outstanding functionality, sturdy construction, optimum strength, easy usage and longer functional life. We offer this machine in different specifications to fulfill the diverse needs of clients at most affordable prices.



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 914mm

3. Rollers: 19 rows

4. Dimensions: 5.8*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.7mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Automatical Steel Roofing Sheet Roll Forming Machine Cr 12 Cutting Blade Main parameter

No.

   Main parameter of Automatical Steel Roofing Sheet Roll Forming Machine Cr 12 Cutting Blade

1

Suitable to process

Color steel plate

2

Width of the plate

914mm

3

Rollers

19 rows

4

Dimensions

5800*1550*1510mm

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)



6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

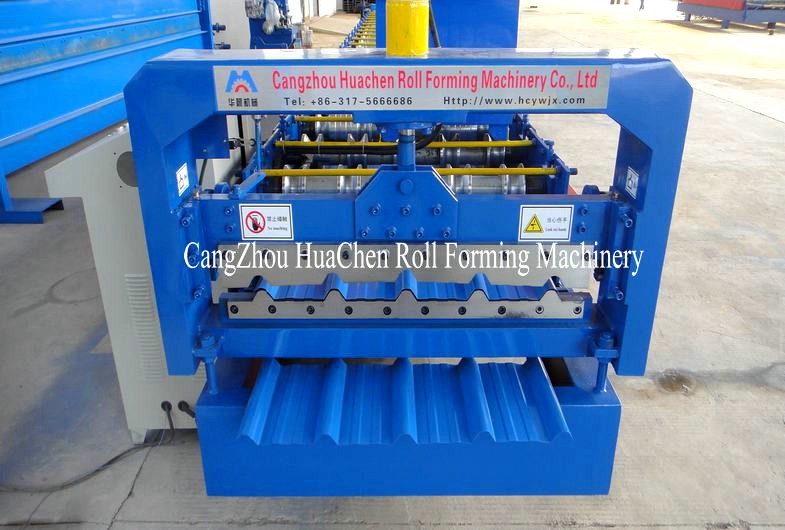

Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade 1

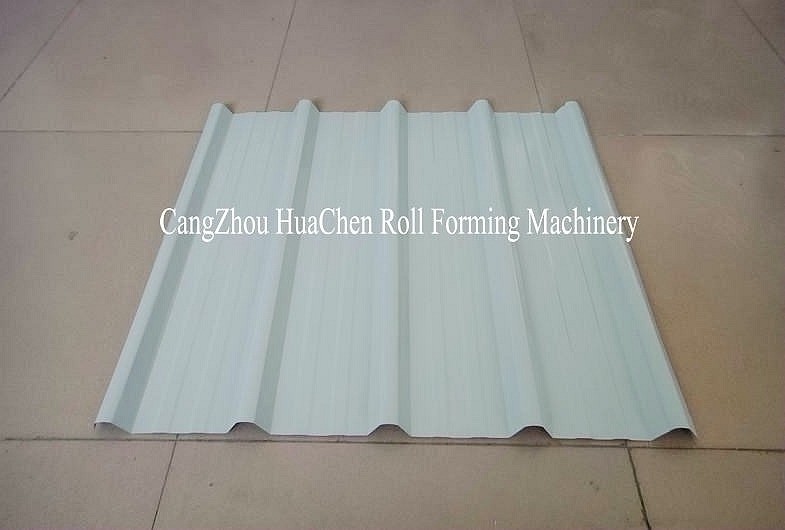

Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade 2

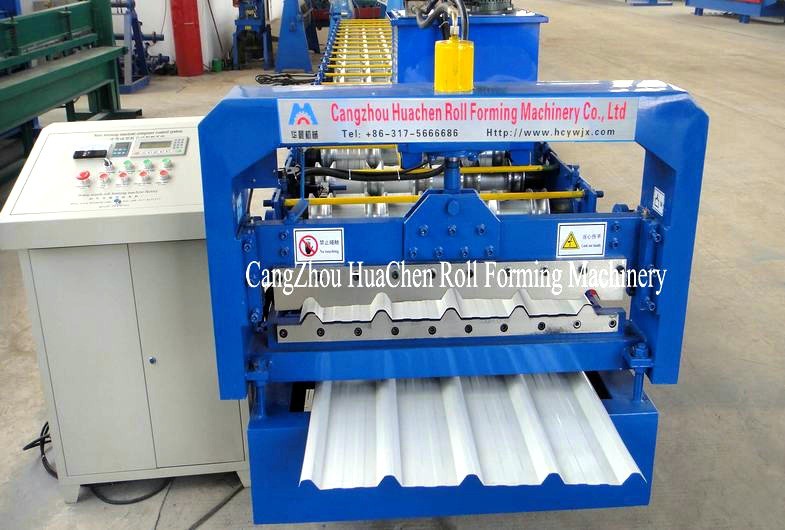

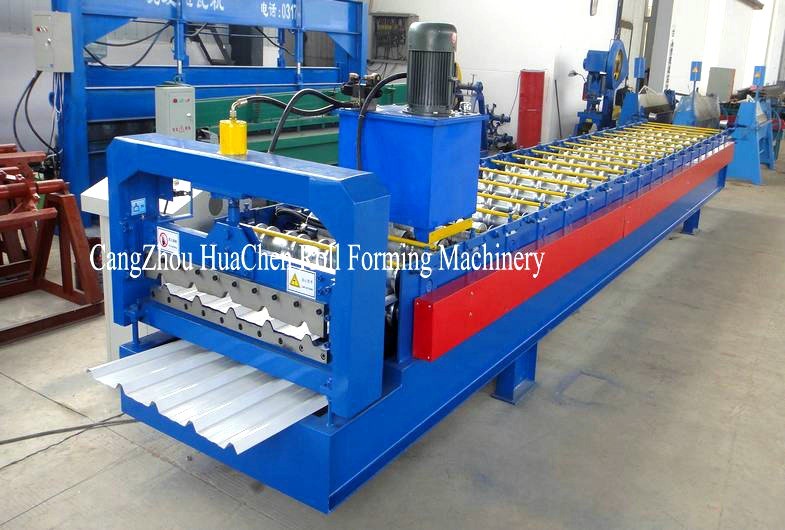

Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade 3Automatical Steel Roof Panel Roll Forming Machine Cr 12 Cutting Blade 4



Application



This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.



Competitive Advantage



1. good service

2. easy installation

3. short delivery time

4. professional design team

5. easy to use
