1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover

زبون مراجعة
آلة سهلة الاستخدام. رئيسه هو لطيف جدا.

—— السيد أنجولون من أوروبا

هذه الشركة مصنعة جيدة ، ومتحدث جيد باللغة الإنجليزية ، وأنا أحب أجهزتك. انها ذات نوعية جيدة ، وجميلة!

—— Mr.Mark من افريقيا

مورد لطيف! أنا أحب التسليم السريع ودورة الإنتاج السريعة ، وسوف نبقى على اتصال مع اللاعبين.

—— السيد جاك من أمريكا

ابن دردش الآن

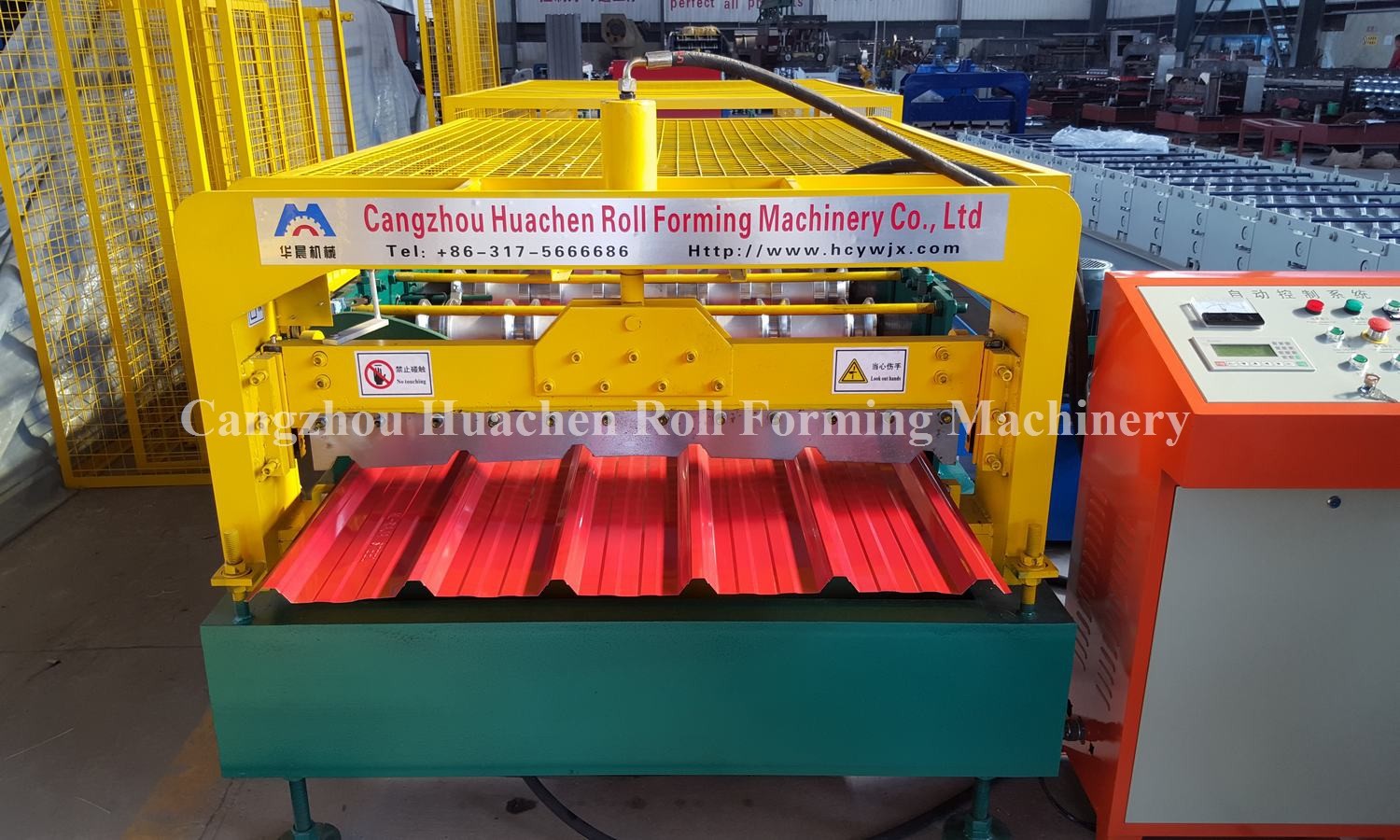

1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover

1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover
1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover
1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover

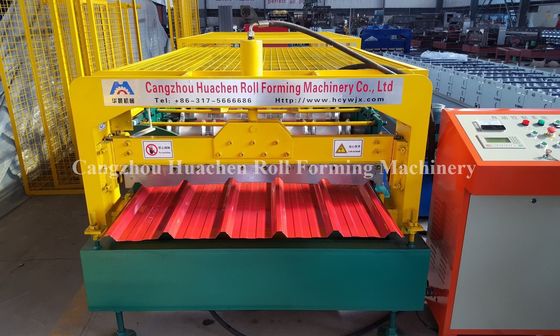

صورة كبيرة :  1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover

تفاصيل المنتج:
مكان المنشأ: China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO CE
رقم الموديل: HC25
شروط الدفع والشحن:
الحد الأدنى لكمية: 1set
الأسعار: USD8000-15000
تفاصيل التغليف: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
وقت التسليم: 30 work days
شروط الدفع: D/A, Western Union, L/C, T/T
القدرة على العرض: 20 sets per month

1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover

وصف
Material: PPGi GI capacity: 4m/min
machine weight: 4.5T rollers: 45# steel
Type: Roll Forming Machine
تسليط الضوء:

roof tile roll forming machine,cold roll forming machine

,

cold roll forming machine


Profile Roofing Roll Forming Machine Application

Our Metal Roofing Sheet Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.


SPECIFICATIONS FOR Profile Roofing Roll Forming Machine

Main Roll Forming Machine
Roller station
16 rows
Material of roller
High grade 45# forged steel plated with hard chrome plating
Material of cutter
Cr12 mould steel with quenched treatment

Material
Type
PPGI GI AL
Material width
customized
Material thickness
0.3-0.8mm

Others
Speed
20m/min
PLC system
EURA or customized
Weight
4..5T

 1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 01.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 11.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 2

Profile Roofing Roll Forming Machine Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 31.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 41.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 5

Metal Roofing Sheet Roll Forming Machine Parts

Detailed Images

1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 6

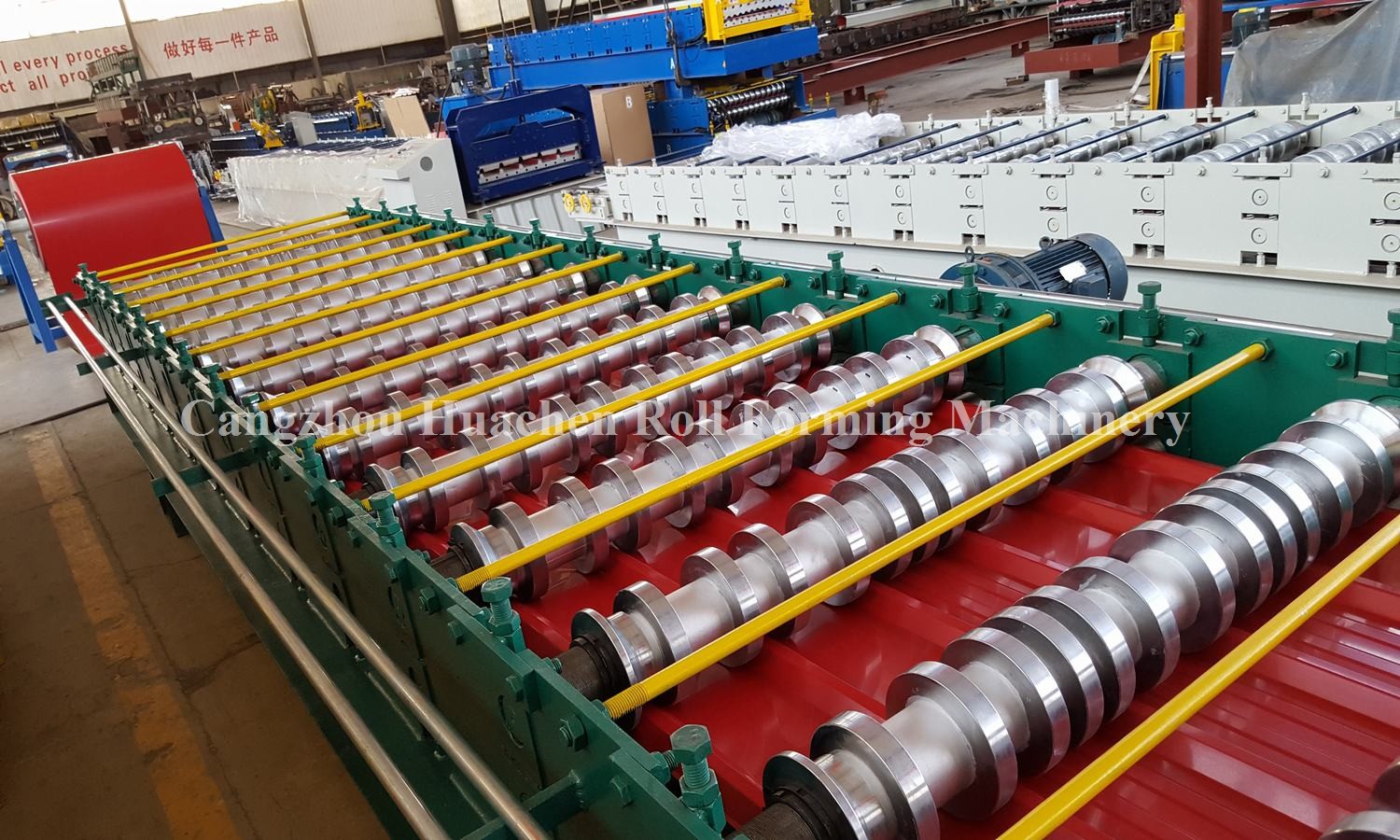

Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment

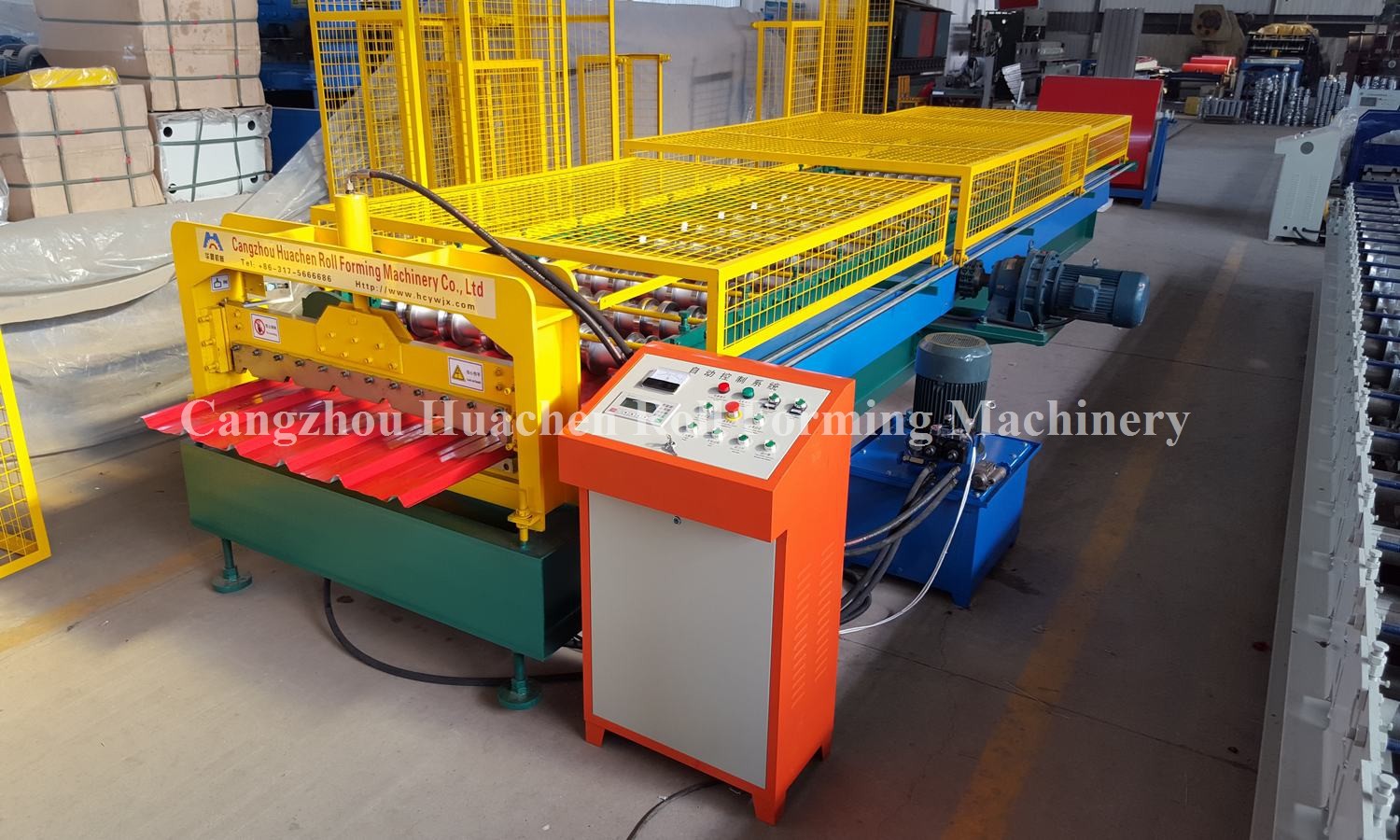

Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .



1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 7
1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 8

Hydraulic Cutting System

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
With non stop cutting
Material of blades: Cr12,quenching treatment



Our Service



1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 91.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 10

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 11

Size: 7800 (L) * 1850 (W) * 1510 (H)
Weight: 4.5T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 12 1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 13 1.0mm Thickness Popular Profile Roofing Roll Forming Machine with Safe Cover 14
