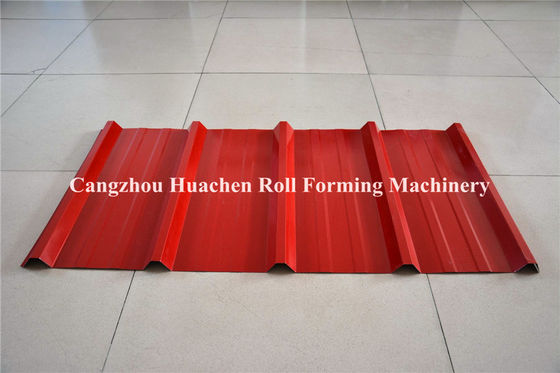

Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise

Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise
Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise
Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise

صورة كبيرة :  Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise

تفاصيل المنتج:
Place of Origin: Botou Hebei China
اسم العلامة التجارية: HC
إصدار الشهادات: ISO
Model Number: HC25
شروط الدفع والشحن:
Minimum Order Quantity: 1set
الأسعار: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise

وصف
type: High Strength and 1220,1250mm Feeding Width Glazed Tile Roll Forming Machine with 8 - 20m/min Working Speed for Roof Applications Roof panel are high strength and durableare with smooth beautiful appearance,uniform lacquer weins,so widely used in rollers: 10
roller material: No.45 steel warranty: 12 month
Weight: 3.2T إصدار الشهادات: CE/ISO9001
Roller material: 45# Steel, Hard Cr Plated
تسليط الضوء:

roof tile roll forming machine,cold roll forming machine

,

cold roll forming machine

Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise

Product Description

Parameters:



No. Spc.
1 suitable material Color Steel plate, galvanized sheet
2 Feeding width 1000mm
3 Rows of rollers 13 rows
4 Main power 5.5kw
5 Hydraulic power 4kw
6 Main frame 300 H steel
7 Thickness of raw material 0.3-0.8mm
8 Transportation system Chain transportation
9 Thickness of chain 1.0inches
10 Productivity 8-10m/min
11 Out diameter of shaft 70mm (solid shaft)
12 Material of shaft Material of shaft
13 Roller material 45# steel polished and coated with chrome HRC55-60°
14 Shear mould Gr12
15 Voltage 380V 50Hz 3phases
16 Control system



PLC Frequency Control System with touch screen



Working flow:

Decoiling the sheet — Sheet guiding — Roll forming — Measure

length Cutting the panel— panels to the supporter

Colored Steel trapezoid Roof Sheet Roll Forming Machine



Components of machine:



Decoiler 1set (3MT capacity)
Feeding & guiding device 1set
Main roll forming machine 1set
Hydraulic cutting system 1set
Controlling system 1set
Run out table 1set



Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise 1Colored Steel trapezoid Roll Forming Machine For Roofing Sheet , low noise 2
