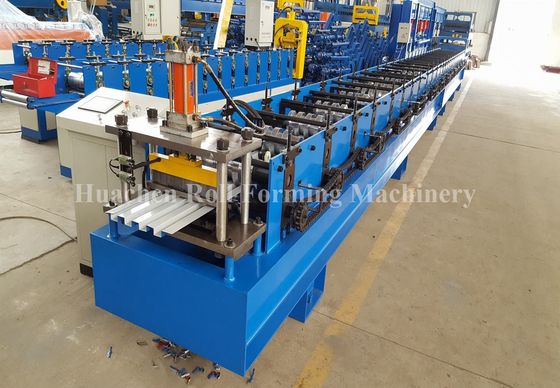

Steel Plate roof sheet making machine , Wall Panel Forming Machine With Hydraulic Decoiler
Specification
| NO. | ITEM | PARAMETER | NOTE | |
|
1.
|
Suitable material
|
Type |
Pre-painted sheet, Galvanized sheet |
|
| Width(mm) | 609mm | |||
| Thickness(mm) | 0.3-0.8mm | |||
| Yield stress(mm) | G220-G300 | |||
| 2. |
Product specifications |
Detail as the attached file | ||
| Length | Any length | |||
| 3. |
Power requirement
|
Type | 380v/3ph/50hz | Motor brand shanghai Lichao |
| Main Motor power | 5.5kw | |||
| Cutter power | 5.5kw | |||
| 4. | Forming speed(m/min) | 10-15m/min | Not include the time of cutting | |
| 5. |
Manual Decoiler
(Optional) |
Type | Manual | |
| Max capacity | 5t | |||
| Suitable coil OD(MM) | 1250 | |||
|
Suitable coil ID(MM) |
508 | |||

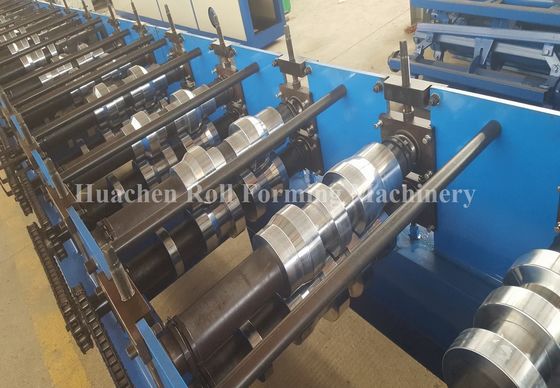

| 6. | Forming stand | 26 | Depend on actual design | |
| 7. | Thickness of structure | 16mm | ||
| 8. | Forming shaft diameter(mm) | 70 solid | ||
| 9. | Type of cutting |
Roll formed and length-set cutting |
||
| 10. | Control system | Panasonic PLC and inverter | ||
| 11. | Install dimension(depend on the final design) | 10.2m×1.5m×1.3m | Without panel length | |
| 12. | Total weight (Approx) | .7T | Depend on final design | |
Flow chart
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→
Products receiving
Description

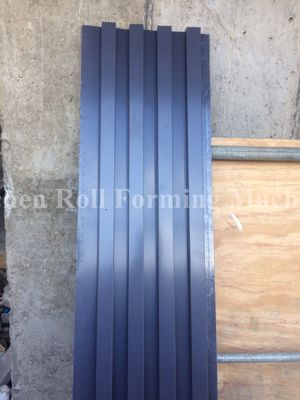

This model of machine make the models of roofing sheets is classical effective width 1000mm.Height is a little more, and it needs 20 stataions of forming Rollers to form. The finished roof panels beautiful and overlap very good.
Competitive Advantage:
1. save space
2. easy installation
3. perfect service
4. excellent quality
5. Operate easily

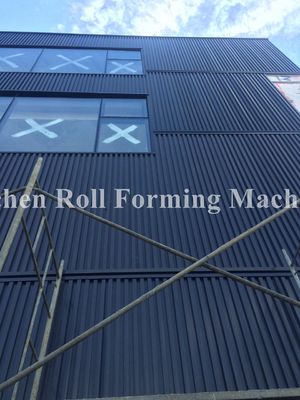

Applications:
Standard Roof panel are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets,
shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and
different kinds of greenhouses
